Socket inclination: 90°

InsulationNominal widthRecessWeightItem

number		Remember
[mm][kg]
ImageUninsulatedDN 50260 x 1908.41619.20.60
DN 70260 x 1908.61639.20.60
DN 100260 x 1908.91659.20.60
ImagePUR insulating bodyDN 50260 x 1908.71619.23.60
DN 70260 x 1908.81639.23.60
DN 100260 x 1909.21659.23.60
ImagePUR insulating body with heatingDN 50260 x 1908.91619.23.90
DN 70260 x 1909.11639.23.90
DN 100260 x 1909.41659.23.90

Abflusswerte Variant Flex -Jet Komplett

Unterdruckentwässerung - Anstauhöhe: 55 mmLuftschleuse
NennweiteStutzenneigungAusführungHauptentwässerungNotentwässerungArt. Nr.:
DN​l/sl/s
DN 5090°2-teilig8,8 l/s8,8 l/s1511.90.00
DN 7019,1 l/s18,2 l/s1531.90.00
DN 10028,4 l/s30,3 l/s1551.90.00

Roofing membranes for Spin/Jet flat roof gullys made of stainless steel

Pilot tube for emergency overflow

Item no.
1590.00.03

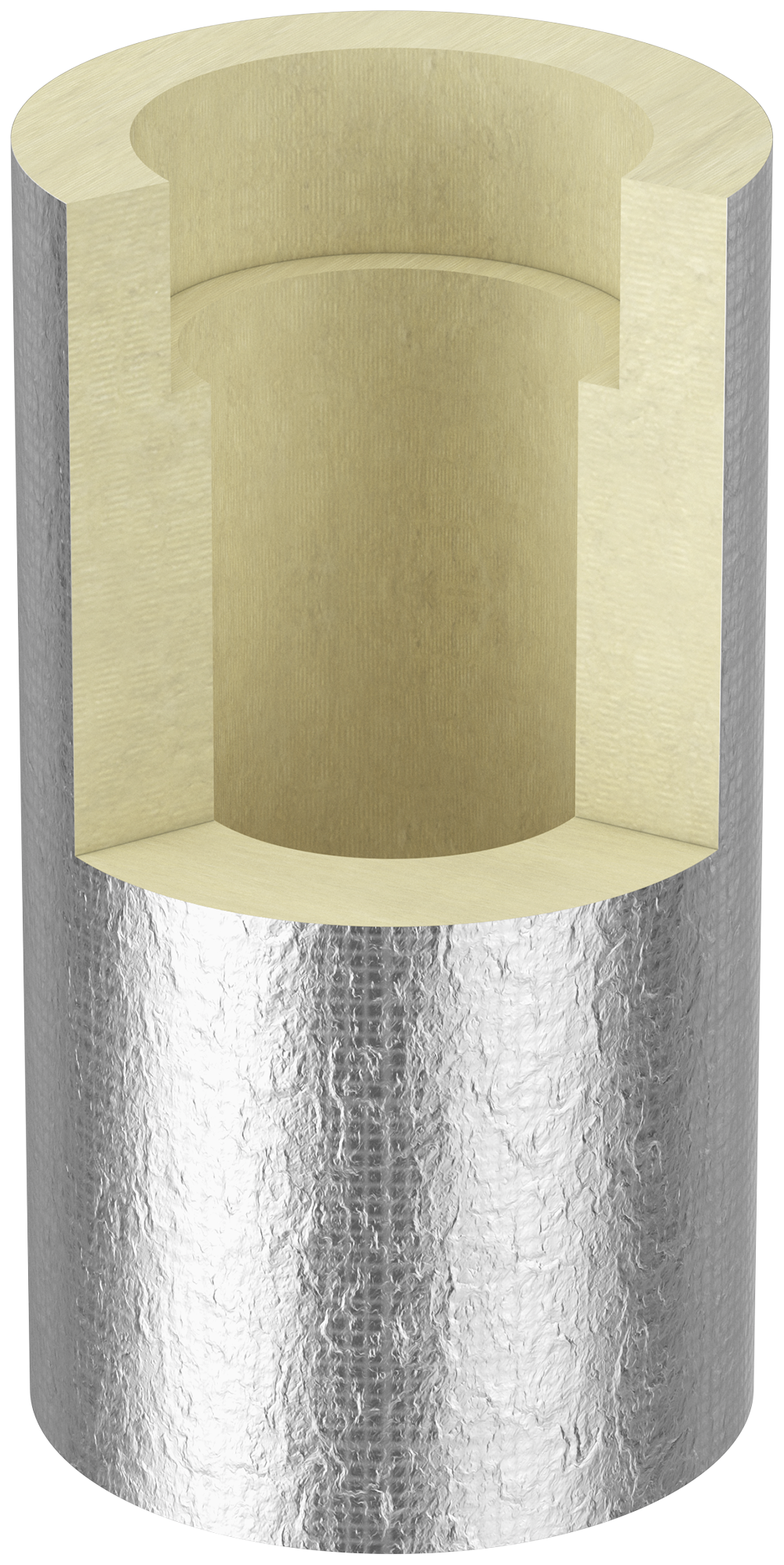

Insulating body

Description
  • Weight: 0.8 kg
Item no.
1510.94.00

Insulating body

Description
  • Weight: 1.2 kg
Item no.
1530.94.00

Insulating body

Description
  • Weight: 1 kg
Item no.
1550.94.00

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg
Item no.
5169.20.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg
Item no.
5169.30.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg
Item no.
5169.40.26

Formwork aid

Item no.
1500.06.00

Holder sheet for trapezoidal panel roof

Description
  • Weight: 3.9 kg
Item no.
1590.02.00

Holder sheet for trapezoidal panel roof

Description
  • Weight: 3.8 kg
Item no.
1570.02.00
