Gully body Spin, DN 70 – DN 125 | siphonic drainage

Product information

  • Gully bodies DN 70 – DN 125
  • For 1-piece or 2-piece gullies
  • Stainless steel, material grade 304
  • Uninsulated
  • With clamping flange as per DIN EN 1253
  • Suitable components
Plastic gravel catchmentStainless steel gravel catchment
Nominal widthSocket inclinationDesignArticle No. 0174.46.66Article No. 0174.46.63 0174.46.64
DNl/sl/s
701.5�1-piece2.62.7
701.5�2-piece2.83.0
7090�1-piece2.52.6
7090�2-piece2.72.8
1001.5�1-piece5.05.9
1001.5�2-piece4.75.3
10090�1-piece4.75.6
10090�2-piece5.15.7
100, with fire protection insert90�1-piece5,05,0
100, with fire protection insert90�2-piece5,05,0
1251.5�1-piece8.39.9
1251.5�2-piece8.78.9
12590�1-piece8.58.4
12590�2-piece8.58.4

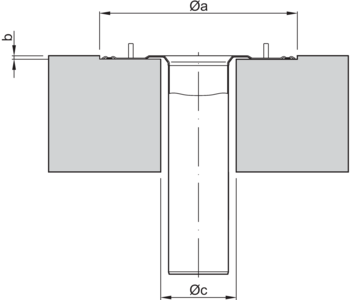

Nominal widthøaøbøcDescriptionItem
number
[mm][mm][mm]
DN 703401090For gully bodies without insulation bodies0174.47.30
DN 7034010290For gully bodies with insulation bodies0174.47.30
DN 10034010130For gully bodies without insulation bodies0174.47.31
DN 10034010290For gully bodies with insulation bodies0174.47.31
DN 12534010160For gully bodies without insulation bodies0174.47.32
DN 12534010290For gully bodies with insulation bodies0174.47.32

Fire protection inset

Suitable for
  • Flat roof gullies Spin
    • DN 70
    • Socket inclination: 90°
Description
  • AbZ: under application
  • Attention: The discharge value is reduced by use!
  • Weight: 0.2 kg

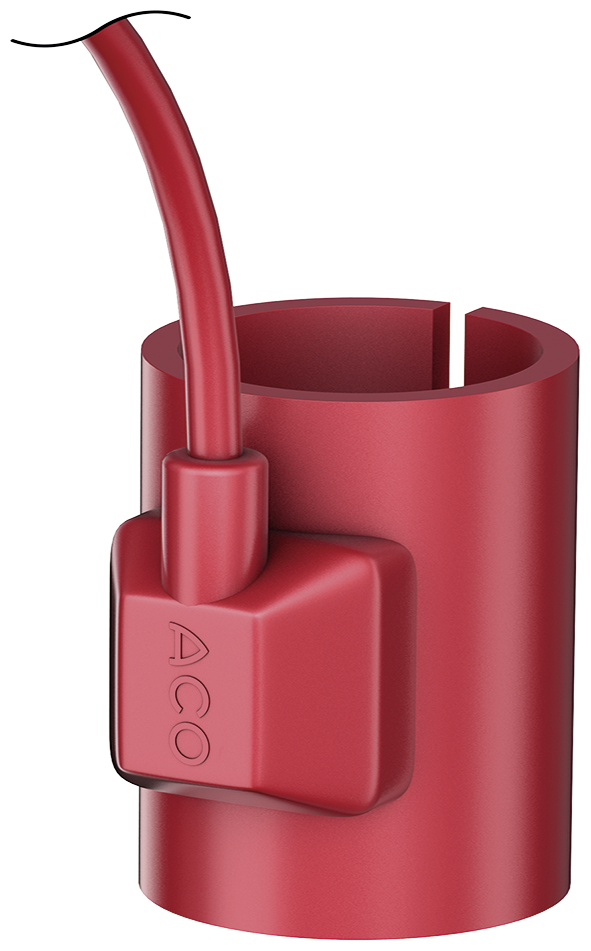

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg

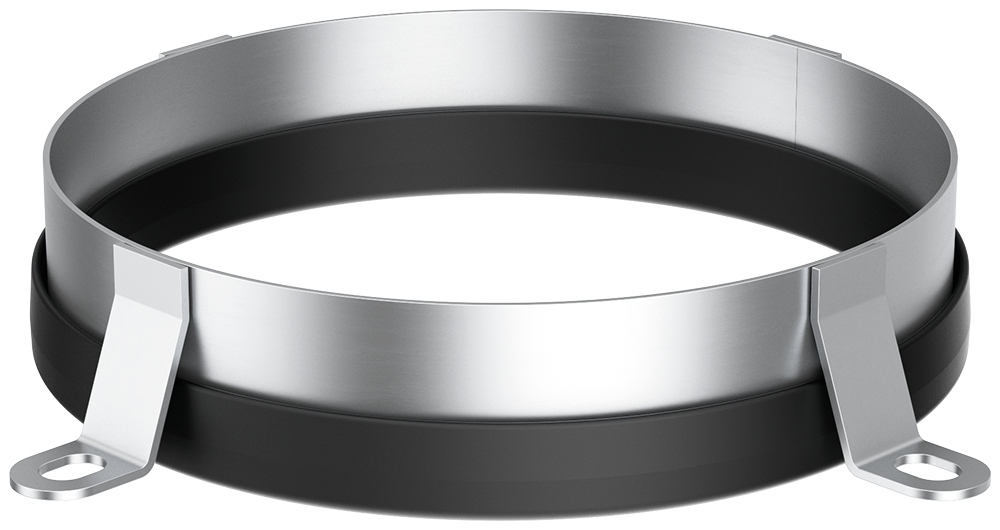

Damming ring for emergency overflow

Description
  • Weight: 0.7 kg

Damming ring for emergency overflow

Description
  • Weight: 0.8 kg

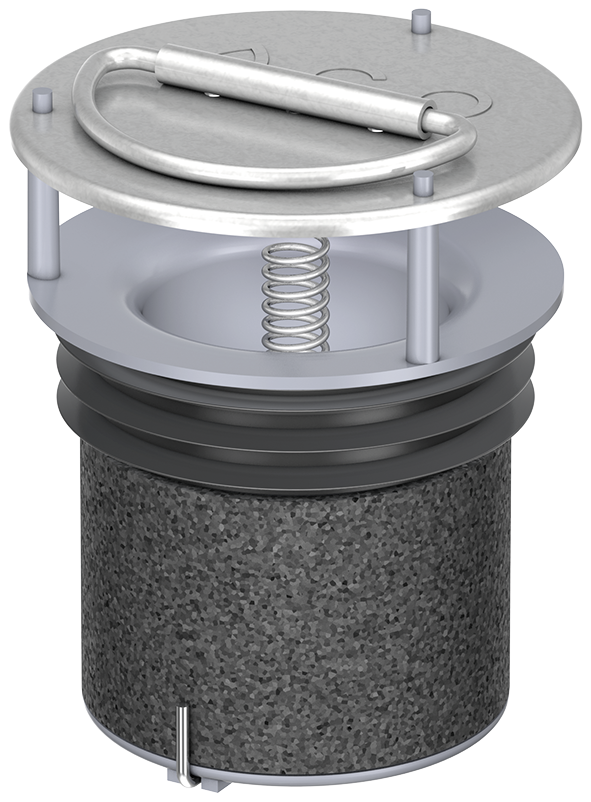

Fire protection inset

Suitable for
  • Spin flat roof gullies
    • DN 100
    • Socket inclination: 90°
  • Multi-storey parking deck gullies
    • 300 x 300 mm
    • Socket inclination: 90°
Description
  • Tested fire protection as per Gen. Build. Sup. Appr.: Z‑19.17‑1888/1887
  • Please note: Outflow value is reduced by insert
  • Weight: 0.4 kg

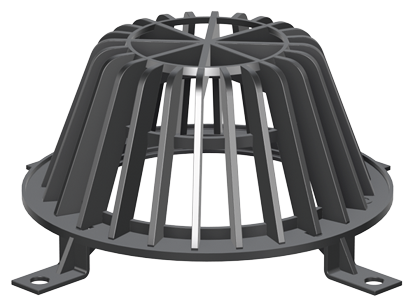

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin roof gullies
Description
  • Stainless steel, material grade 304
  • Height: 75 mm
  • Weight: 1 kg

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin roof gullies
Description
  • Stainless steel, material grade 304
  • Height: 225 mm
  • Weight: 1.6 kg

Heat shield

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • DN 70
Description
  • Made of stainless steel
  • With M 8 dowels and 16 x M 8 hexagonal screws
  • Weight: 2.7 kg

Heat shield

Suitable for
  • Spin flat roof gullies
    • DN 100
Description
  • With M 8 dowel x 16
  • Weight: 2.5 kg

Heat shield

Suitable for
  • Spin flat roof gullies
    • DN 100
Description
  • Two-piece version
  • Fastening with 6 dowels
  • Weight: 2.8 kg

Gravel trap

Suitable for
  • Flat roof gully Spin made of stainless steel
Description
  • Plastic
  • Weight: 0.1 kg

Gravel trap for inverted roof

Description
  • Stainless steel, material grade 304
  • Load class: H 1.5
  • Weight: 1.5 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.2 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • Soft PVC
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Made of EPDM
  • For box channels
  • Thickness: 5 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 70
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 100
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 125
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.1 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 70
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 0.8 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 0.7 kg

Insulation

Suitable for
  • Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 125
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 1.1 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 1.5°
  • DN 70
Description
  • Made from styrofoam
  • Height: 140
  • Length x width: 260 x 190 mm
  • Weight: 0.1 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 1.5°
  • DN 100
Description
  • Made from styrofoam
  • Height: 170 mm
  • Length x width: 280 x 230 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 1.5°
  • DN 125
Description
  • Made from styrofoam
  • Height: 200
  • Length x width: 280 x 230 mm
  • Weight: 0.2 kg

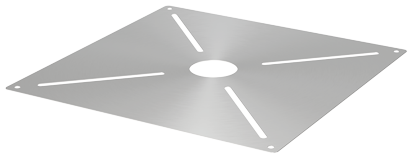

Holder sheet for trapezoidal panel roof

Suitable for
  • Jet flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
  • Spin flat roof gullies
    • DN 70 – DN 125
    • Socket inclination: 90°
  • Emergency gully Turboflow
    • DN 50/DN 70
Description
  • Made from galvanised steel sheet
  • Thickness: 1.5 mm
  • Weight: 3.6 kg

Control shaft

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Stainless steel, material grade 304
  • Load class: K 3
  • Weight: 5.3 kg

Insulation casing

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • DN 100
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 150 mm
  • To equalise length
  • Weight: 0.7 kg

Insulating body

Suitable for
  • Spin stainless steel flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 1.3 kg

Sliding flange

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • DN 70
    • Socket inclination: 90°
Description
  • Stainless steel, material grade 304
  • For unheated version
  • Weight: 2.2 kg

Mesh grating

Suitable for
  • Profiline gully top
    • 38150
    • 38801
Description
  • Galvanised steel
  • Mesh width: 30 x 10 mm
  • Not screwed

Mesh grating

Suitable for
  • Profiline gully top
    • 38150
    • 38801
Description
  • Galvanised steel
  • Mesh width: 30 x 14 mm
  • Not screwed

Mesh grating

Suitable for
  • Profiline gully top
    • 38156
    • 38803
Description
  • Stainless steel, material grade 304
    • Etched
  • Mesh width: 30 x 10 mm
  • Not screwed

Mesh grating

Suitable for
  • Profiline gully top
    • 38156
    • 38803
Description
  • Stainless steel, material grade 304
    • Etched
  • Mesh width: 30 x 14 mm
  • Not screwed

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Profiline
Description
  • Height: 50 mm
  • Dimensions: 400 x 400 mm
  • Galvanised steel

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Profiline
Description
  • Height: 50 mm
  • Dimensions: 400 x 400 mm
  • Stainless steel, material grade 304

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat gullies
  • Profiline
Description
  • Adjustable height: 78 – 108 mm
  • Dimensions: 400 x 400 mm
  • Galvanised steel

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat gullies
  • Profiline
Description
  • Adjustable height: 78 – 108 mm
  • Dimensions: 400 x 400 mm
  • Stainless steel, material grade 304
