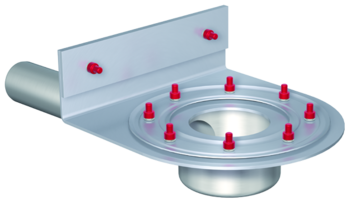

Parapet wall gully body Spin – 90°-upstand forsealing with plastic membrane


Product information

  • Made of stainless steel, material grade 304
  • According to EN 1253-2
  • 1-piece
  • Uninsulated
  • With compression seal flange
  • Direct connection to ACO pipe system GM-X (connection to other pipe types with transition pieces)

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin roof gullies
Description
  • Stainless steel, material grade 304
  • Height: 75 mm
  • Weight: 1 kg

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin roof gullies
Description
  • Stainless steel, material grade 304
  • Height: 225 mm
  • Weight: 1.6 kg

Collecting pot

Suitable for
  • Parapet wall gullies
    • Spin DN 70
Description
  • Made of steel, hot-dip galvanized
  • With additional internal coating
  • Weight: 2.4 kg

Collecting pot

Suitable for
  • Parapet wall gullies
    • Spin DN 100
Description
  • Made of steel, hot-dip galvanized
  • With additional internal coating
  • Weight: 2.8 kg

Damming ring for emergency overflow

Description
  • Weight: 0.7 kg

Gravel trap

Suitable for
  • Flat roof gully Spin made of stainless steel
Description
  • Plastic
  • Weight: 0.1 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.2 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • Soft PVC
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.3 kg

Insulating body

Suitable for
  • Attika roof gullies Spin DN 70
  • Jet flat roof gullies
    • Socket inclination 1.5°
    • DN 40 – DN 70
Description
  • Made from cellular glass
  • Height: 120 mm
  • Weight: 2 kg

Insulating body

Suitable for
  • Attika roof gullies Spin DN 100
Description
  • Made from cellular glass
  • Height: 145 mm
  • Weight: 2.4 kg

Attika duct

Suitable for
  • Attika Spin roof gullies
    • DN 70
Description
  • Stainless steel, material grade 304
  • With works fitted bitumen connecting sleeve
  • Weight: 3.9 kg

Attika duct

Suitable for
  • Attika Spin roof gullies
    • DN 100
Description
  • Stainless steel, material grade 304
  • With works fitted bitumen connecting sleeve
  • Weight: 4.6 kg
