Parapet single wall gully body Spin (45°/90°)


Flange: 45 ° upstand for Bitumen sealing membrane

Nominal widthSocket inclinationInsulationItem

number
Remember
ImageDN 501,5°Uninsulated1156.30.00
DN 701,5°Uninsulated1176.30.00
DN 1001,5°Uninsulated1116.30.00

Flange: 90° upstand for plastic sealing membrane

Nominal widthSocket inclinationInsulationItem

number
Remember
ImageDN 501,5°Uninsulated1156.40.00
DN 701,5°Uninsulated1176.40.00
DN 1001,5°Uninsulated1116.40.00
Nominal widthSocket inclinationFlangeInsulationItem

number
ImageDN 501,5°45 ° upstand for Bitumen sealing membraneUninsulated1156.30.00
ImageDN 701,5°45 ° upstand for Bitumen sealing membraneUninsulated1176.30.00
ImageDN 1001,5°45 ° upstand for Bitumen sealing membraneUninsulated1116.30.00
ImageDN 501,5°90° upstand for plastic sealing membraneUninsulated1156.40.00
ImageDN 701,5°90° upstand for plastic sealing membraneUninsulated1176.40.00
ImageDN 1001,5°90° upstand for plastic sealing membraneUninsulated1116.40.00

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • 45° and 90°
Description
  • Stainless steel, material grade 304
  • Height: 75 mm
  • Weight: 1 kg

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • 45° and 90°
Description
  • Stainless steel, material grade 304
  • Height: 225 mm
  • Weight: 1.6 kg

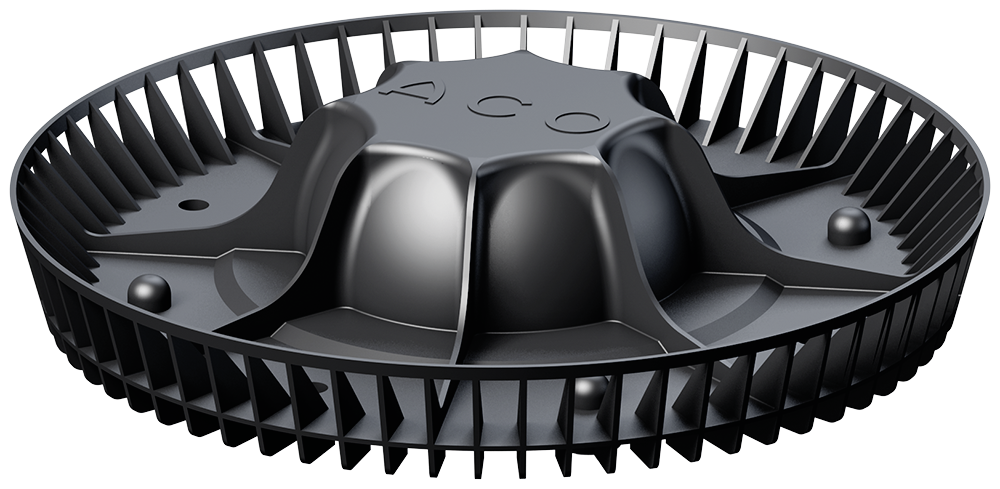

Gravel trap

Suitable for
  • Flat roof gully Spin made of stainless steel
  • Parapet wall gully Spin made of stainless steel
    • 45° and 90°
Description
  • Plastic
  • Weight: 0.1 kg

0174.93.82: Funktionsteil

Suitable for
  • Parapet wall gully Jet made of stainless steel
    • 45° and 90°
    • DN 50 – DN 70

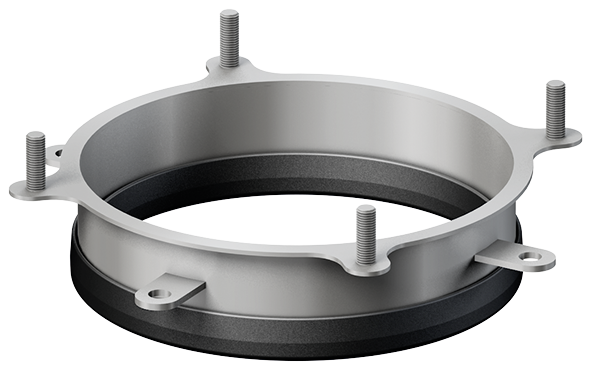

Damming ring for emergency overflow

Suitable for
  • Parapet wall gully Spin made of stainless steel
    • 45° and 90°
Description
  • Weight: 0.7 kg

Damming ring for emergency overflow

Suitable for
  • Parapet wall gully Jet made of stainless steel
    • 45° and 90°
    • DN 50 – DN 70
Description
  • Material grade 304
  • Height: 55 mm
  • Weight: 1.2 kg

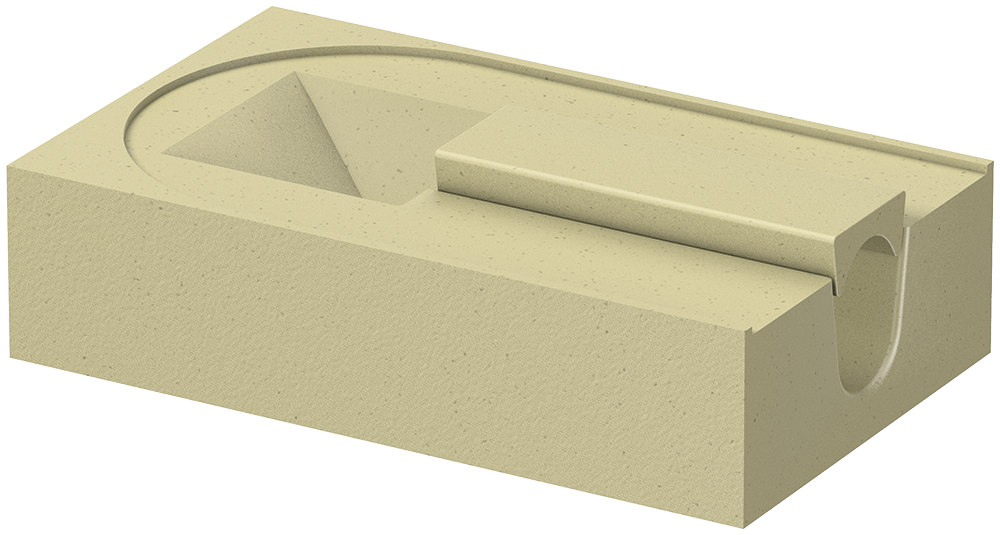

Insulating body

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°

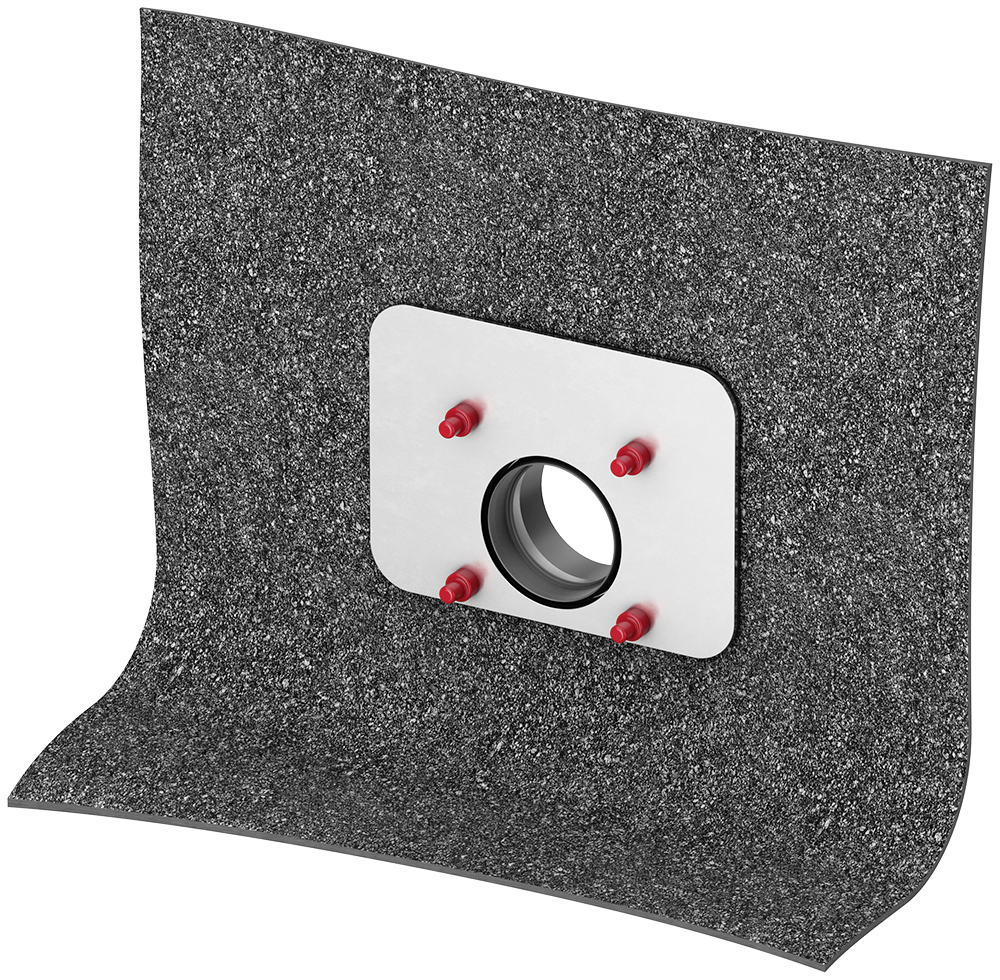

Attika duct

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
    • DN 50
Description
  • Material grade 304
  • With factory-made clamped bitumen connection sleeve
  • Weight: 3 kg

Attika duct

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
    • DN 70
Description
  • Material grade 304
  • With factory-made clamped bitumen connection sleeve
  • Weight: 3 kg

Attika duct

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
    • DN 100
Description
  • Material grade 304
  • With factory-made clamped bitumen connection sleeve
  • Weight: 3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.2 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.3 kg

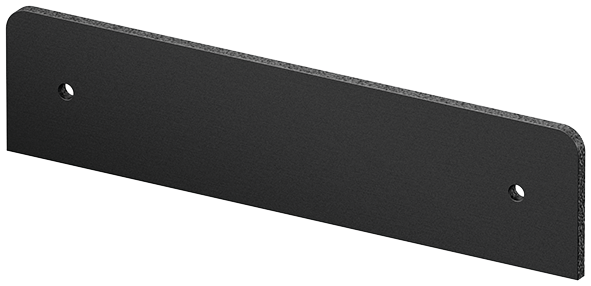

Flange seal

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • EPDM
  • Weight: 0.1 kg

Flange seal

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • PVC-weich
  • Weight: 0.1 kg

Flange seal

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • NBR/SBR
  • Weight: 0.1 kg

Collecting pot

Suitable for
  • Parapet wall gullies
    • Spin DN 70
Description
  • Made of steel, hot-dip galvanized
  • With additional internal coating
  • Weight: 2.4 kg

Collecting pot

Suitable for
  • Parapet wall gullies
    • Spin DN 100
Description
  • Made of steel, hot-dip galvanized
  • With additional internal coating
  • Weight: 2.8 kg

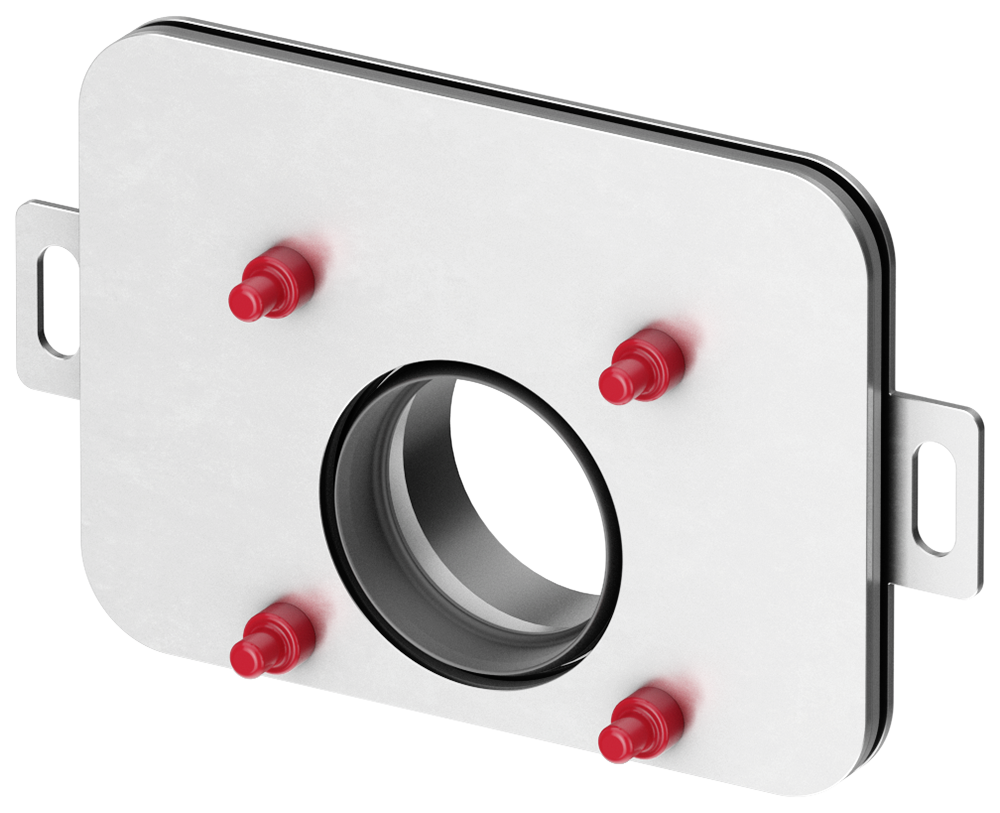

0174.97.37: Attikadurchführung DN 50

Description
  • DN 50

0174.97.38: Attikadurchführung DN 70


0174.97.39: Attikadurchführung DN 100

Description
  • DN 100
