Supplementary components for green roofs

Product information

  • Additional components for
    • Extensive planted roofs
    • Intensively planted roofs
DescriptionUsed withDescriptionWeightItem

number
DownloadsRemember
[kg]
ImageIntermediate section
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: L 15/M 125
  • Height: 60 mm
5.07000.52.00
ImageIntermediate section
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: L 15/M 125
  • Connection option for DN 100 lateral inlet
  • Height: 250 mm
9.17000.54.00
ImageFrame with grating
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Painted cast iron
  • Load class: L 15/M 125
  • Length x width: 300 x 300 mm
  • Grating
    • Galvanised steel
    • Mesh width: 31 x 17 mm
    • With screw-free stop
8.07000.50.00
ImageFrame with grating
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Painted cast iron
  • Grating
    • Load class: L 15/M 125
    • Length x width: 300 x 300 mm
    • With screw-free stop
9.17000.51.00
ImageTransition frame
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: M 125
  • With seepage openings
  • Height: 100 mm
26.07000.56.00
ImageTransition frame
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: L 15
  • With seepage openings
  • Height: 60 mm
3.27000.55.00
DescriptionUsed withDescriptionWeightItem

number
ImageIntermediate section
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: L 15/M 125
  • Height: 60 mm
5.0 kg7000.52.00
ImageIntermediate section
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: L 15/M 125
  • Connection option for DN 100 lateral inlet
  • Height: 250 mm
9.1 kg7000.54.00
ImageFrame with grating
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Painted cast iron
  • Load class: L 15/M 125
  • Length x width: 300 x 300 mm
  • Grating
    • Galvanised steel
    • Mesh width: 31 x 17 mm
    • With screw-free stop
8.0 kg7000.50.00
ImageFrame with grating
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Painted cast iron
  • Grating
    • Load class: L 15/M 125
    • Length x width: 300 x 300 mm
    • With screw-free stop
9.1 kg7000.51.00
ImageTransition frame
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: M 125
  • With seepage openings
  • Height: 100 mm
26.0 kg7000.56.00
ImageTransition frame
  • Passavant Spin flat roof gullies
    • DN 70 – DN 150
    • Socket inclination: 1.5°/90°
  • Made of polymer concrete
  • Load class: L 15
  • With seepage openings
  • Height: 60 mm
3.2 kg7000.55.00

Removable dirt trap

Suitable for
  • Top sections
    • 5141.71.xx
    • 5141.81.xx
    • 5141.86.xx
    • 5141.87.xx
    • 5141.89.xx
    • 5141.91.xx
    • 5141.92.xx
    • 5141.93.xx
    • 5141.97.xx
    • 5194.10.00
    • 9406.89.xx
    • 9406.92.xx
    • 9406.93.xx
  • Spin flat roof gullies
    • DN 70
  • Green roof and multi-storey parking deck gully tops
Description
  • Made from stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange 50mm
  • Slot size: 8 mm
  • Weight: 0.2 kg

Removable dirt trap

Suitable for
  • Top sections
    • 5141.71.xx
    • 5141.81.xx
    • 5141.86.xx
    • 5141.87.xx
    • 5141.89.xx
    • 5141.91.xx
    • 5141.92.xx
    • 5141.93.xx
    • 5141.97.xx
    • 5194.10.00
    • 9406.89.xx
    • 9406.92.xx
    • 9406.93.xx
  • Spin flat roof gullies
    • DN 70
  • Green roof and multi-storey parking deck gully tops
Description
  • Made from stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange 50mm
  • Slot size: 6 mm according to EC Directive no. 1774/2002
  • Weight: 0.2 kg

Removable dirt trap

Suitable for
  • Spin flat roof gullies
    • DN 100 – DN 150
    • Structure up to 180 mm using polymer concrete top sections
Description
  • Stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange: 60 mm
  • Slot width: 8 mm
  • Weight: 0.3 kg

Removable dirt trap

Suitable for
  • Spin flat roof gullies
    • DN 70 – DN 150
    • Structure from 180 mm using polymer concrete top sections
Description

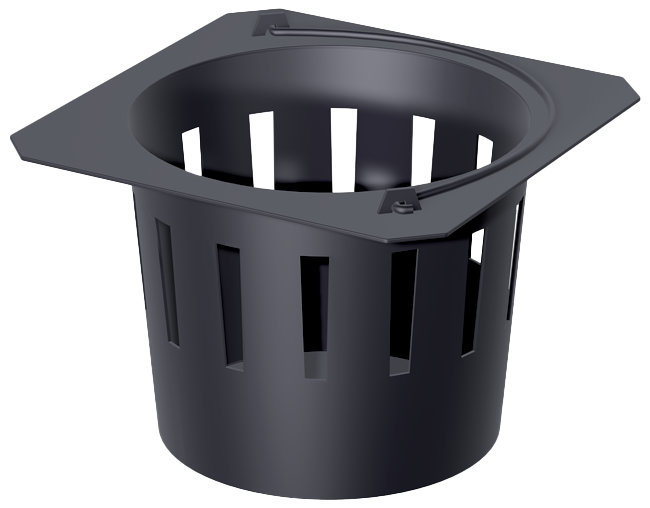

  • For support item: 7000.52.00 is required
  • Made of polypropylene
  • Height: 150 mm
  • Weight: 0.2 kg
