Gully body Spin, DN 100 – DN 150 | siphonic drainage

Product information

  • Gully bodies DN 100 – DN 150
  • Tested to DIN EN 1253
  • Painted cast iron
  • Building material class A1
  • With clamping flange
  • With seepage openings
  • Suitable components
Ball gratingFlat gratingStacking frame with gratingStacking frame with gratingStacking frame with grating
Nominal widthSocket inclinationDesignArticle No. 7000.10.00Article No. 7000.20.00Article No. 7000.40.00Article No. 7000.28.00Article No. 7000.41.00 7000.42.00
DNl/sl/sl/sl/sl/s
1001.5°1-piece7.76.09.86.510.5
1001.5°2-piece8.06.510.06.812.1
10090°1-piece8.26.210.46.612.0
10090°2-piece7.66.29.47.012.8
100, with fire protection insert90°1-piece7.47.38.96.811.8
100, with fire protection insert90°2-piece7.47.38.96.811.8
1251.5°1-piece11.09.413.09.615.0
1251.5°2-piece11.610.014.410.617.2
12590°1-piece11.59.815.010.017.2
12590°2-piece11.59.814.010.417.4
1501.5°1-piece14.512.615.07.621.2
1501.5°2-piece14.512.615.07.621.2
15090°1-piece13.511.015.07.618.5
15090°2-piece13.511.015.07.618.5

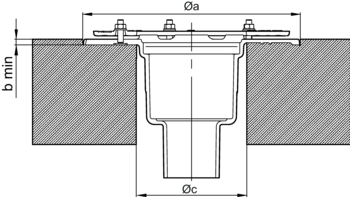

Nominal widthøaøbøcDescriptionItem
number
[mm][mm][mm]
DN 12538035200For gully bodies without insulation bodies7035.10.10
DN 12543065270For gully bodies with insulation bodies7035.10.10
DN 15038035200For gully bodies without insulation bodies7036.10.10
DN 15043065270For gully bodies with insulation bodies7036.10.10

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.6 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • Soft PVC
  • Weight: 0.4 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg

Removable dirt trap

Suitable for
  • Spin flat roof gullies
    • DN 100 – DN 150
    • Structure up to 180 mm using polymer concrete top sections
Description
  • Stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange: 60 mm
  • Slot width: 8 mm
  • Weight: 0.3 kg

Insulating body for gully

Suitable for
  • Spin flat roof gullies
    • Socket inclination: 90°
    • DN 100 – DN 150
  • Jet flat roof gullies
    • Socket inclination 90°
    • DN 80
Description
  • Made from cellular glass
  • Weight: 0.9 kg

Heat shield

Suitable for
  • Spin flat roof gullies
    • DN 100
Description
  • Two-piece version
  • Fastening with 6 dowels
  • Weight: 2.8 kg

Insulating body

Suitable for
  • Flat roof gullies
    • Socket inclination: 1.5°
Description
  • Made from cellular glass
  • DN 100
  • Height: 170 mm
  • Weight: 1.8 kg

Insulating body

Suitable for
  • Flat roof gullies
    • Socket inclination: 1.5°
Description
  • Made from cellular glass
  • DN 125
  • Height: 215 mm
  • Weight: 2 kg

Insulating body

Suitable for
  • Flat roof gullies
    • Socket inclination: 1.5°
Description
  • Made from cellular glass
  • DN 150
  • Height: 240 mm
  • Weight: 2.1 kg

Insulationbody upper part

Suitable for
  • Flat roof gully upper sections
Description
  • Made from cellular glass
  • Weight: 1.9 kg

Compensation element

Suitable for
  • Flat roof gully upper sections
Description
  • Made from cellular glass
  • Weight: 1 kg

Top ring

Suitable for
  • Gratings, load class: H 1.5 and L 15
Description
  • Made of cast iron
  • Height: 25 mm
  • Weight: 0.6 kg

Top ring

Suitable for
  • Gratings, load class: H 1.5 and L 15
Description
  • Made of cast iron
  • Height: 35 mm
  • Weight: 1.4 kg

Top ring

Suitable for
  • Top frame with grating, load class: L 15 and M 125
Description
  • Made of cast iron
  • Weight: 2 kg

Transition ring

Suitable for
  • Top sections
    • 5084.87.xx
    • 5084.71.xx
    • 5084.81.xx
    • 5084.89.xx
Description
  • Made of cast iron
  • Load class
    • H 1.5
    • L 15
  • Height adjustable by: 24 mm
  • Weight: 1.1 kg

Removable dirt trap

Suitable for
  • Top sections
    • 5084.71.00
    • 5084.80.00
    • 5084.81.00
    • 5084.83.00
    • 5084.87.00
    • 5084.89.00
    • 5084.91.00
    • 9405.89.00
Description
  • Stainless steel, material grade 304
  • Slot width: 8 mm
  • Alternative item number for slot width: 6 mm as per EU Regulation No. 1774/2002
    • 9519.15.19
  • Minimum surface structure above gully adhering flange: 50 mm
  • Weight: 0.3 kg

Sealing ring with clamping ring

Suitable for
  • Spin flat roof gullies
    • DN 100/DN 125
    • Socket inclination: 90°
  • 1-piece gullies
Description
  • For ventilation pipe to be added during installation
    • SML pipe DN 125 made from cast iron
    • For grey water drainpipes over roof
    • Length as per DIN EN 12056 and DIN 1986-100
  • Weight: 0.7 kg

Sealing ring with clamping ring

Suitable for
  • Spin flat roof gullies
    • DN 100/DN 125
    • Socket inclination: 90°
  • 2-piece gullies
Description
  • For ventilation pipe to be added during installation
    • SML pipe DN 125 made from cast iron
    • For grey water drainpipes over roof
    • Length as per DIN EN 12056 and DIN 1986-100
  • Weight: 0.1 kg

Pilot tube for emergency overflow

Suitable for
  • Spin flat roof gullies
    • DN 100
  • 1-piece gullies
Description
  • With sealing ring
  • Accumulation height: 35 mm
  • Weight: 1.7 kg

Pilot tube for emergency overflow

Suitable for
  • Spin flat roof gullies
    • DN 100
  • 2-piece gullies
Description
  • With sealing ring
  • Accumulation height: 35 mm
  • Weight: 1.7 kg

Pilot tube for emergency overflow

Suitable for
  • Spin flat roof gullies
    • DN 125
    • DN 150
  • 1-piece gullies
Description
  • With seal
  • Accumulation height: 45 mm
  • Weight: 2 kg

Pilot tube for emergency overflow

Suitable for
  • Spin flat roof gullies
    • DN 125
    • DN 150
  • 2-piece gullies
Description
  • With seal
  • Accumulation height: 45 mm
  • Weight: 2 kg

Sealing ring

Suitable for
  • Spin flat roof gullies
    • DN 100 – DN 150
  • Jet flat roof gullies
    • DN 80
Description
  • Diameter: 117 mm
  • Thickness: 2 mm
  • For upper section in 2 pieces
  • Weight: 0.1 kg

Levelling height

Suitable for
  • Gravel trap
    • 7000.12.00
    • 7000.02.00
Description
  • Made of stainless steel
  • With 2 fixing screws
  • Height: 65 mm
  • Only possible in combination with gravel trap
  • Weight: 0.3 kg

Fire protection inset

Suitable for
  • Spin flat roof gullies
    • DN 100
    • Socket inclination: 90°
  • Multi-storey parking deck gullies
    • 300 x 300 mm
    • Socket inclination: 90°
Description
  • Tested fire protection as per Gen. Build. Sup. Appr.: Z‑19.17‑1888/1887
  • Please note: Outflow value is reduced by insert
  • Weight: 0.4 kg

Heat shield

Suitable for
  • Spin flat roof gullies
    • DN 100
Description
  • With M 8 dowel x 16
  • Weight: 2.5 kg

Insulation pane

Suitable for
  • Spin flat roof gullies
    • DN 100 – DN 150
Description
  • Made from cellular glass
  • Weight: 0.5 kg
