Gully body Passavant Spin, DN 70 – DN 100 | siphonic drainage


Product benefits

  • Guaranteed fire protection
    • No additional fire load
    • Fire protection classes: R 30 – R 120
  • Permanent resistance
    • Maintenance-friendly
    • 100% UV resistant
  • Flexibility in sealing
    • PVC/PE/PP/Bitumen
  • Variable installation
    • On-site height adjustment by means of cast iron adjustment ring
    • Can be utilised as emergency drainage
  • Few components, compact design
    • Core drill diameter just 160 mm, also with fire protection Fit-in
Contact
Downloads

Product information

  • Made of cast iron
    • Building material class A1, non-flammable
    • With paint coat (transport protection)
    • High pressure resistance > 700 N/mm²
  • Tested in accordance with EN 1253-2
  • With flat compression seal flange
    • For recess necessary for thread slots
  • With seepage openings

Socket inclination: 90°

Nominal widthRecess (LxB)WeightItem

number		Remember
[mm][kg]
ImageDN 70160 x 3306.27033.10.12
ImageDN 100160 x 3306.57034.10.12

Socket inclination: 0°

Nominal widthRecess (LxB)WeightItem

number		Remember
[mm][kg]
ImageDN 70160 x 3806.57053.11.12
ImageDN 100160 x 3807.57054.11.12
Nominal widthKernbohrungRecess (LxB)WeightItem

number
ImageDN 70160 mm160 mm160 x 330 mm6.2 kg7033.10.12
ImageDN 100160 mm160 mm160 x 330 mm6.5 kg7034.10.12
ImageDN 70160 x 380 mm6.5 kg7053.11.12
ImageDN 100160 x 380 mm7.5 kg7054.11.12
Nominal widthøaøbøcDescriptionItem
number
[mm][mm][mm]
DN 7033010160For gully bodies without insulation bodies7033.10.12
DN 7033040160For gully bodies with insulation bodies7033.10.12
DN 10033010160For gully bodies without insulation bodies7034.10.12
DN 10033040160For gully bodies with insulation bodies7034.10.12
Upper part of gully body Passavant Spin

Upper part of gully body Passavant Spin

Gully tops and gratings

Top sections and gratings of gully body Passavant Spin

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys made of stainless steel

Top sections and gratings for roof gullys made of stainless steel

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
Item no.
7000.85.10

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
Item no.
7000.85.20

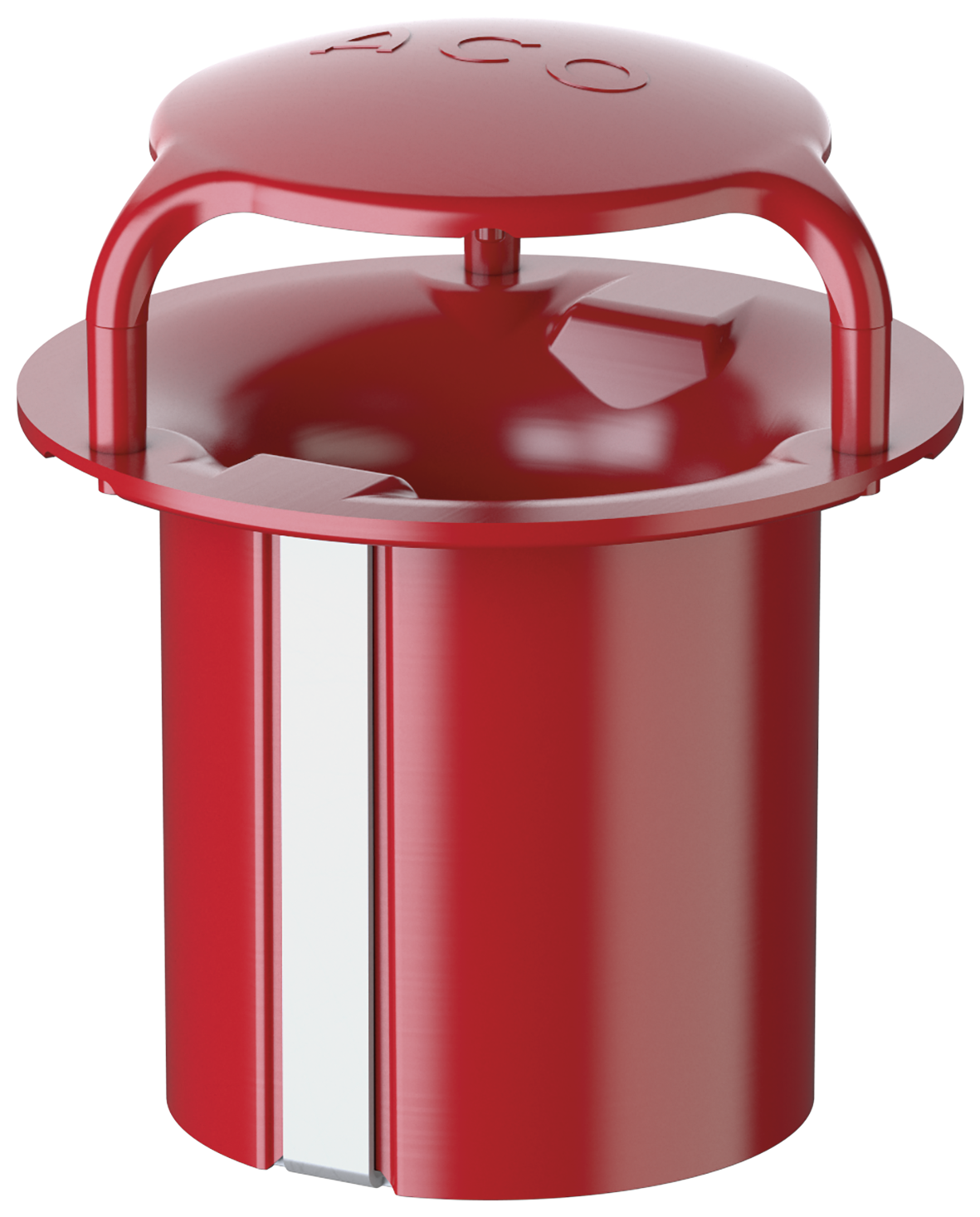

Fire protection insert

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
  • Parking deck gullies Passavant made of cast iron
    • DN 70
    • Socket inclination: 90°
Description
  • Note:
    • The discharge value is reduced by use
    • A Fit-in must be installed for core hole drilling
    • aBG: Z-19.53-2439
    • abZ: Z-19.17-2430
  • Weight: 0.5 kg
Item no.
7033.20.02

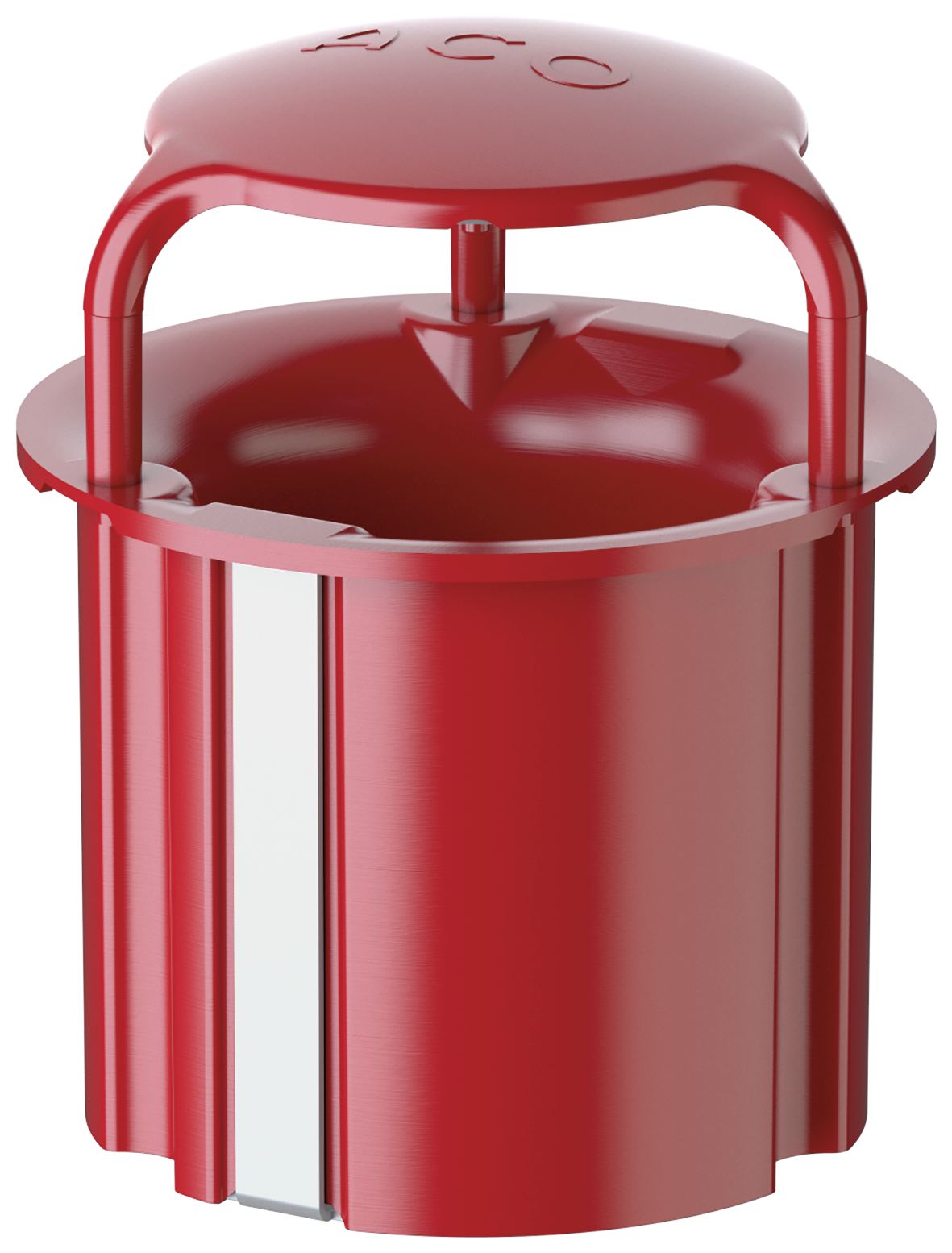

Fire protection insert

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
  • Parking deck gullies Passavant made of cast iron
    • DN 100
    • Socket inclination: 90°
Description
  • Note:
    • The discharge value is reduced by use
    • A Fit-in must be installed for core hole drilling
    • aBG: Z-19.53-2439
    • abZ: Z-19.17-2430
  • Weight: 0.5 kg
Item no.
7034.20.02

Insulating body for gully

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70
    • Socket inclination: 90°
Description
  • Made of PUR
  • Weight: 0.5 kg
Item no.
7040.22.02

Fit-In

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70
    • Socket inclination: 90°
Description
  • Material
    • Sleeve made of stainless steel
    • Insulation made of PUR
  • AbZ: Z-19.17-2430
  • AbG: Z-19.53-2439
  • Weight: 1.3 kg
Item no.
7033.20.03

Insulating body for gully

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 100
    • Socket inclination: 90°
Description
  • Made of PUR
  • Weight: 0.5 kg
Item no.
7040.21.02

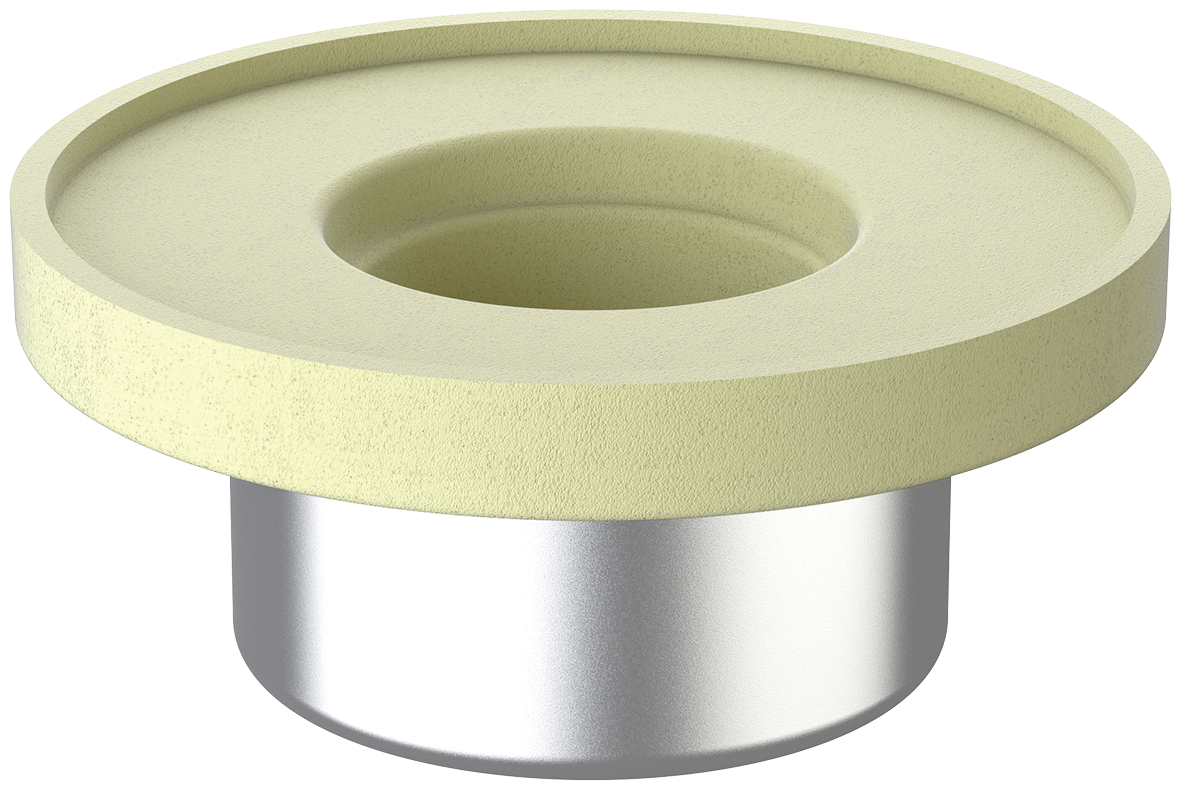

Fit-In

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 100
    • Socket inclination: 90°
Description
  • Material
    • Sleeve made of stainless steel
    • Insulation made of PUR
  • AbZ: Z-19.17-2430
  • AbG: Z-19.53-2439
  • Weight: 1.2 kg
Item no.
7034.20.03

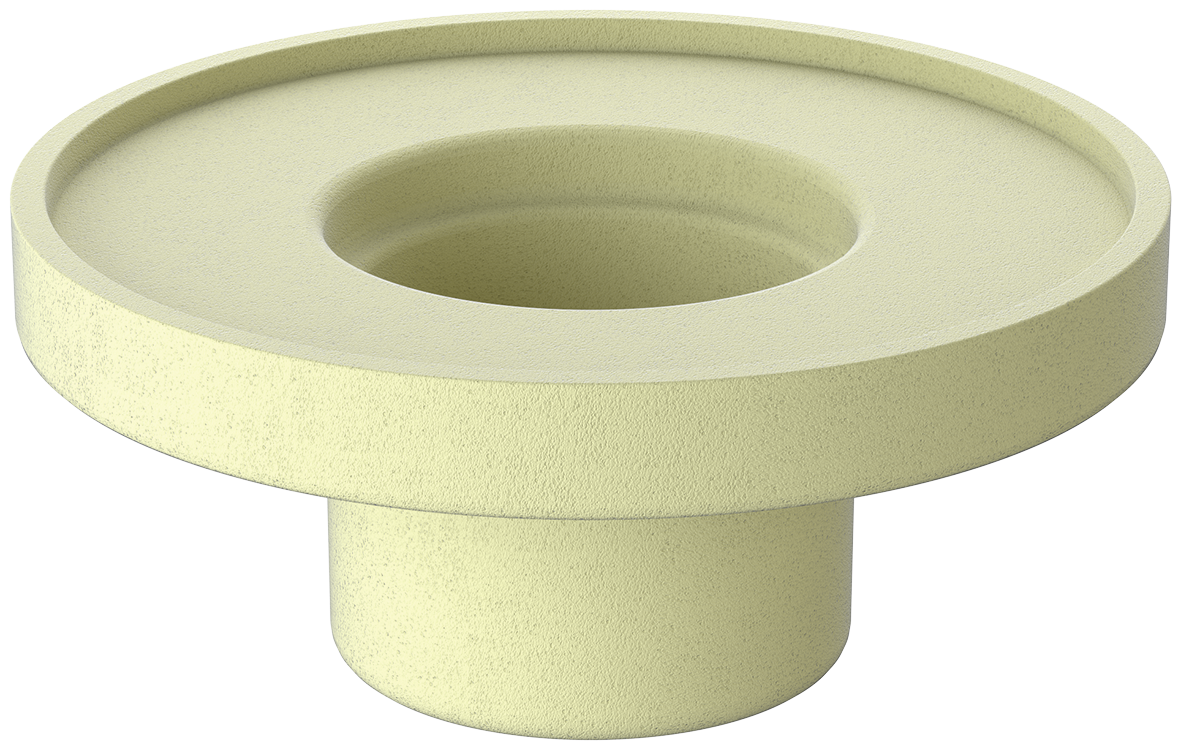

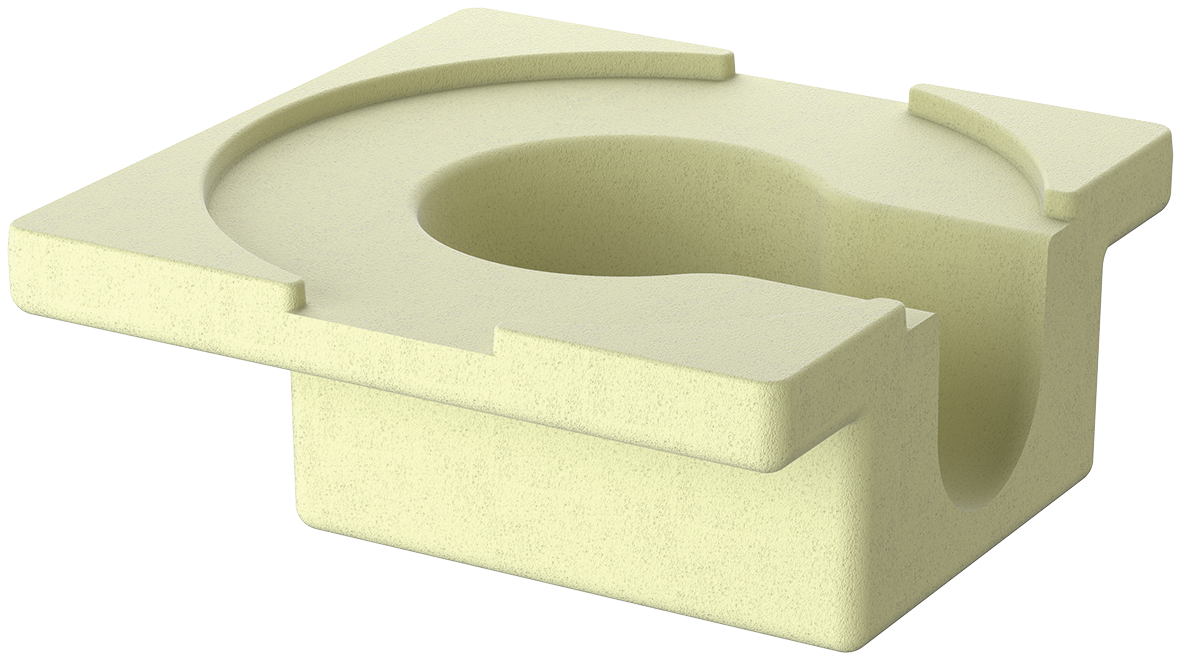

Insulating body for gully

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70
    • Socket inclination: 0°
Description
  • Made of PUR
  • Weight: 0.6 kg
Item no.
7040.34.02

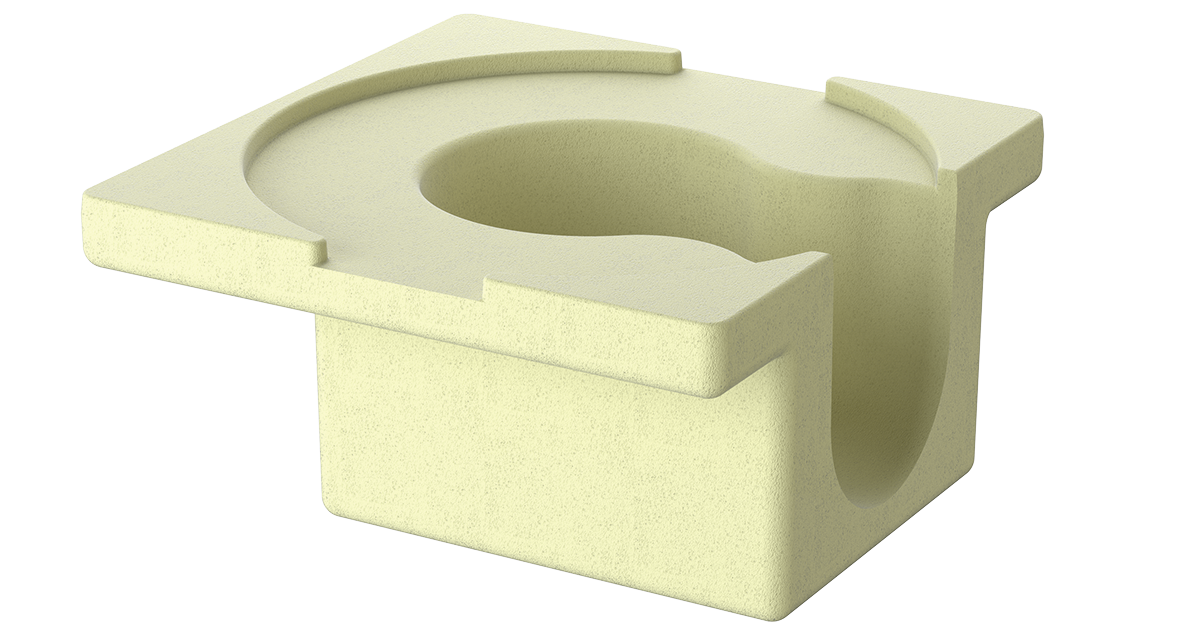

Insulating body for gully

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 100
    • Socket inclination: 0°
Description
  • Made of PUR
  • Weight: 0.7 kg
Item no.
7040.31.02

Formwork aid

Item no.
7040.23.02

Removable dirt trap

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
    • Socket inclination: 90°/0°
  • Parking deck gullies Passavant made of cast iron
    • DN 70 – DN 100
  • Top part made of cast iron
    • DN 70/DN 100
Description
  • Made of stainless steel
Item no.
7000.03.02

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Parking deck gullies Passavant made of cast iron
  • Grating with frame
    • 7000.08.02
    • 7000.44.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 25 – 40 mm
  • Weight: 1.3 kg
Item no.
7000.05.02

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Parking deck gullies Passavant made of cast iron
  • Grating with frame
    • 7000.08.02
    • 7000.44.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 45 – 60 mm
  • Weight: 1.9 kg
Item no.
7000.06.02

Gravel trap

Suitable for
  • Passavant Spin flat roof gullies
    • DN 70/DN 100
  • Jet flat roof gullies
    • DN 50
  • Spin flat roof gullies
    • DN 70
Description
  • Made of stainless steel
  • With 2 fixing screws
Item no.
7000.02.00

Levelling height

Suitable for
  • Gravel trap
    • 7000.12.00
    • 7000.02.00
Description
  • Made of stainless steel
  • With 2 fixing screws
  • Height: 65 mm
  • Only possible in combination with gravel trap
  • Weight: 0.3 kg
Item no.
7000.11.00

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Spin made of cast iron
    • DN 70
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg
Item no.
5169.20.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Spin made of cast iron
    • DN 70
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg
Item no.
5169.30.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Spin made of cast iron
    • DN 70
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg
Item no.
5169.40.26

Lip seal ring

Suitable for
  • Jet flat roof gullies
    • DN 50
  • Upper part for Spin flat roof gullies
    • DN 70
  • 1-/2-piece flat roof/terrace Spin gullies DN 70 for ventilation pipe to be added during installation
    • SML-pipe DN 100 made from cast iron for grey water downpipes over roof, length as per DIN EN 12056 and DIN 1986‑100
Description
  • Diameter: 136 mm
  • Weight: 0.1 kg
Item no.
7047.00.26
