Gully body Passavant Spin, DN 125 – DN 150 | siphonic drainage


Product benefits

  • No additional fire load
  • Permanent resistance
    • Maintenance-friendly
    • 100% UV resistant
  • Flexibility in sealing
    • PVC/PE/PP/Bitumen
  • Variable installation
    • On-site height adjustment by means of cast iron adjustment ring
    • Can be utilised as emergency drainage
  • Few components, compact design

Product information

  • Made of cast iron
    • Building material class A1, non-flammable
    • With paint coat
    • High pressure resistance > 700 N/mm²
  • Tested in accordance with EN 1253-2
  • With flat compression seal flange
    • For recess necessary for thread slots
  • With seepage openings
Nominal widthøaøbøcDescriptionItem
number
[mm][mm][mm]
DN 12537010210For gully bodies without insulation bodies7035.10.12
DN 12540045220For gully bodies with insulation bodies7035.10.12
DN 15037010210For gully bodies without insulation bodies7036.10.12
DN 15040045220For gully bodies with insulation bodies7036.10.12

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg

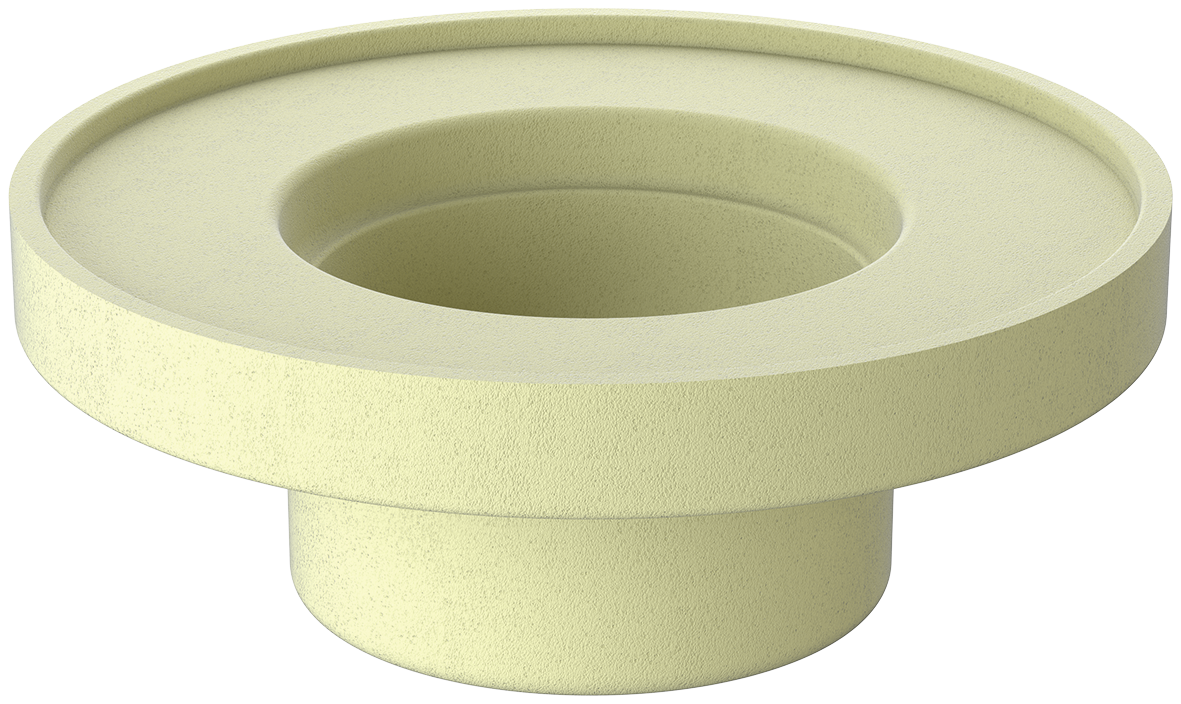

Insulating body for gully

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125
    • Socket inclination: 90°
Description
  • Made of PUR
  • Weight: 0.6 kg

Insulating body for gully

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 150
    • Socket inclination: 90°
Description
  • Made of PUR
  • Weight: 0.7 kg

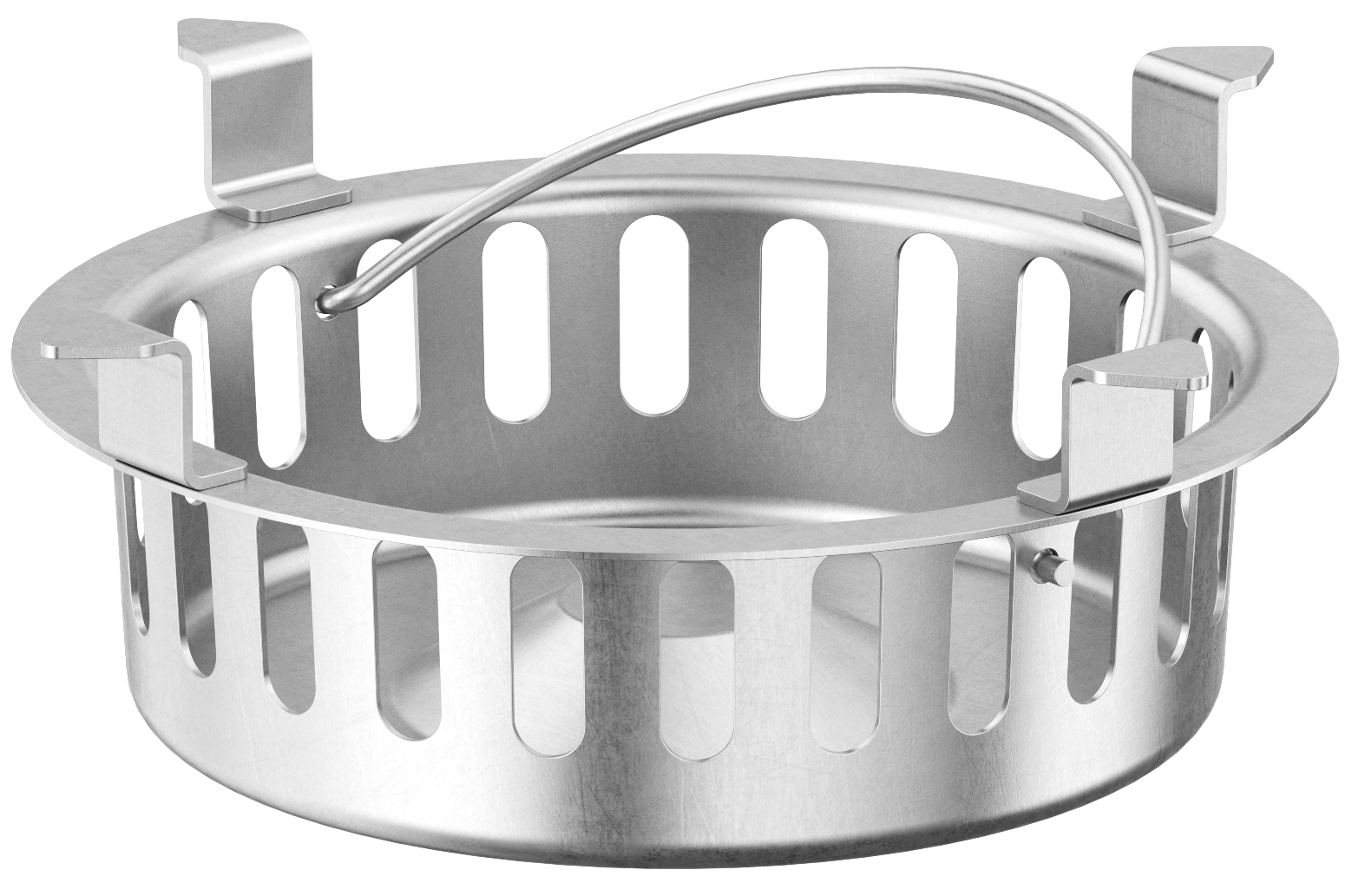

Removable dirt trap

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Top part made of cast iron
    • DN 125/DN 150
Description
  • Made of stainless steel
  • Weight: 0.3 kg

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Grating with frame
    • 7000.28.02
    • 7000.41.02
    • 7000.42.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 25 – 40 mm
  • Weight: 1.4 kg

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Grating with frame
    • 7000.28.02
    • 7000.41.02
    • 7000.42.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 45 – 60 mm
  • Weight: 2.1 kg

Gravel trap

Suitable for
  • Jet flat roof gullies
    • DN 80
  • Spin flat roof gullies
    • DN 100 – DN 150
Description
  • Made of stainless steel
  • With 2 fixing screws
  • Load class: H 1.5
  • Weight: 1.2 kg

Levelling height

Suitable for
  • Gravel trap
    • 7000.12.00
    • 7000.02.00
Description
  • Made of stainless steel
  • With 2 fixing screws
  • Height: 65 mm
  • Only possible in combination with gravel trap
  • Weight: 0.3 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.6 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • Soft PVC
  • Weight: 0.4 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg

Lip seal ring

Suitable for
  • Oberteil zu Flachdachabläufe Passavant Spin aus Gusseisen
    • DN 125/DN 150
  • Oberteil zu Flachdachabläufe Passavant Jet aus Gusseisen
    • DN 80
  • Staurohr für Notüberlauf
Description
  • Diameter: 186 mm
