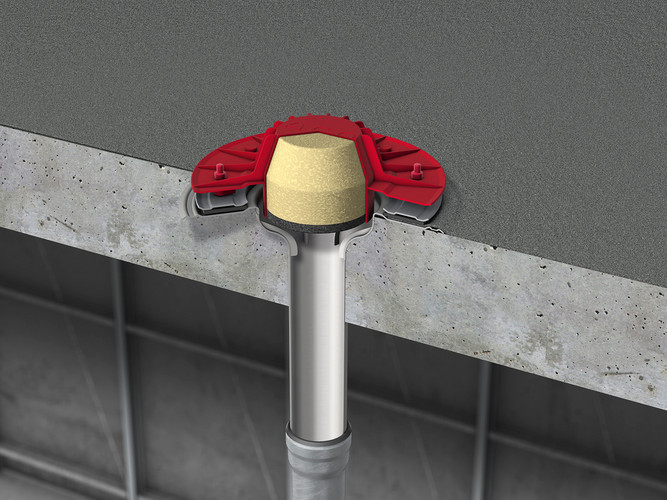

Complete gullies single unit/socket inclination: 90° – DN 70 | gravity drainage
Product benefits
- With sealing membrane inserted on site
- Unit checked for leaks
Product information
- Flat roof gullies tested to DIN EN 1253
- Made from stainless steel, material grade 304
- Building material class A1
- Airlock with fire protection insert
- Insulation
- Uninsulated with/out heating
- Sarnafil TG 66-15
- For loose placement
- For planted, gravelled roofs with foot and vehicle traffic
- For roofs with additional loads
- Sikaplan 15 G
- For loose placement with mechanical fixing
- Up to a roof gradient of maximum 20°
- For roofs without additional loads
- With clamping flange for sealing with a sealing membrane
- Usable for one sealing plane
- Socket inclination: 90°
Fire protection
Infobox
Note: Delivery time for works pre-assembled Sarnafil membrane TG 66-15 and Sikaplan 15 G depends on the version: from inventory, or up to max. 14 days
Note: Delivery time for works pre-assembled membranes from other manufacturers: on request.
Note: For gullies without membranes the additional seals must be ordered separately.


Top sections and gratings for roof gullys

Top sections and gratings for roof gullys made of stainless steel
Control shaft
Insulating body
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
airlock
Gravel trap for inverted roof
Sliding flange
Flange seal
Flange seal
Flange seal
Flange seal
Insulation
Damming ring
Holder sheet for trapezoidal panel roof
Heat shield
Insulating body
Insulating body
Insulating body
Insulation casing
Insulation casing
Optimisation element
Optimisation element
Optimisation element
