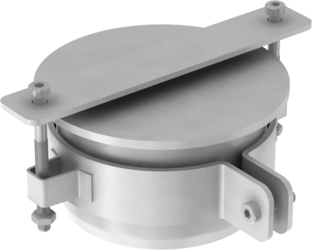

Socket plug with clamp

Product benefits

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • For gray and black water, rainwater and industrial waste water drainage applications
  • For vacuum and gravity piping system
  • Double lip seal push-fit connection for easy and reliable installation
  • When used with ACO gully and ACO channel provides complex building drainage solution
Nominal widthDimensionsWeightItem

number
DownloadsRemember
DN1DN2ab
[mm][mm][kg]
DN 40417402
DN 50DN 5845880.40419138
DN 75DN 85451200.60419139
DN 110DN 120451670.80419140
DN 160DN 170502141.10419141
DN 250DN 260833021.30417132
DN 315DN 3251303713.70417216
Nominal widthDimensionsWeightItem

number
DN1DN2ab
DN 40417402
DN 50DN 5845 mm88 mm0.40 kg419138
DN 75DN 8545 mm120 mm0.60 kg419139
DN 110DN 12045 mm167 mm0.80 kg419140
DN 160DN 17050 mm214 mm1.10 kg419141
DN 250DN 26083 mm302 mm1.30 kg417132
DN 315DN 325130 mm371 mm3.70 kg417216
