Gm-X bends – push socket 1 A

Product benefits

  • Material: Galvanised steel
    • Building material class: A1
    • Non-combustible
    • No introduction of additional fire load
Contact
Downloads

Product information

  • Not inflammable, building material class A1
  • Made from galvanised steel
  • With additional internal coating
  • According to DIN EN 1123

Infobox

Note:

Please order sealing items separately

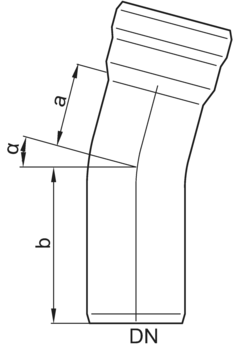

Nominal widthDimensionsWeightItem

number		Remember
DNab
[mm][mm][kg]
DN 4037670.220174.11.46
DN 5053810.350174.11.47
DN 7050890.60174.11.48
DN 8025850.650174.11.49
DN 100341041.040174.11.50
DN 125371121.90174.11.51
DN 150401202.610174.11.52
DN 200451656.440174.11.53
DN 3227580.20174.85.75
DN 4046760.250174.11.54
DN 5064920.40174.11.55
DN 70661050.680174.11.56
DN 80561160.70174.11.57
DN 100441141.270174.11.58
DN 125451182.050174.11.59
DN 150611483.610174.11.60
DN 200451656.440174.11.61
DN 3230650.20174.85.74
DN 4056860.280174.11.62
DN 50761040.450174.11.63
DN 70831220.770174.11.64
DN 8072.51321.00174.11.65
DN 100541241.250174.11.66
DN 125581312.150174.11.67
DN 150831624.380174.11.68
DN 20016627013.460174.11.69
DN 3240750.20174.85.73
DN 25020933927.80174.11.70
DN 40751050.260174.11.72
DN 501001280.460174.11.73
DN 701181570.890174.11.74
DN 801051651.20174.11.75
DN 100741441.30174.11.76
DN 125751572.40174.11.77
DN 1501252055.450174.11.78
DN 20025436017.590174.11.79
DN 32691000.20174.85.72
DN 40921220.30174.11.80
DN 501201480.530174.11.81
DN 701461851.050174.11.82
DN 801341941.20174.11.83
DN 100911611.670174.11.84
DN 125971792.60174.11.86
DN 1501702506.380174.11.87
DN 20033043522.850174.11.88
Nominal widthDimensionsWeightItem

number
DN1ab
DN 4037 mm67 mm0.22 kg0174.11.46
DN 5053 mm81 mm0.35 kg0174.11.47
DN 7050 mm89 mm0.6 kg0174.11.48
DN 8025 mm85 mm0.65 kg0174.11.49
DN 10034 mm104 mm1.04 kg0174.11.50
DN 12537 mm112 mm1.9 kg0174.11.51
DN 15040 mm120 mm2.61 kg0174.11.52
DN 20045 mm165 mm6.44 kg0174.11.53
DN 3227 mm58 mm0.2 kg0174.85.75
DN 4046 mm76 mm0.25 kg0174.11.54
DN 5064 mm92 mm0.4 kg0174.11.55
DN 7066 mm105 mm0.68 kg0174.11.56
DN 8056 mm116 mm0.7 kg0174.11.57
DN 10044 mm114 mm1.27 kg0174.11.58
DN 12545 mm118 mm2.05 kg0174.11.59
DN 15061 mm148 mm3.61 kg0174.11.60
DN 20045 mm165 mm6.44 kg0174.11.61
DN 3230 mm65 mm0.2 kg0174.85.74
DN 4056 mm86 mm0.28 kg0174.11.62
DN 5076 mm104 mm0.45 kg0174.11.63
DN 7083 mm122 mm0.77 kg0174.11.64
DN 8072.5 mm132 mm1.0 kg0174.11.65
DN 10054 mm124 mm1.25 kg0174.11.66
DN 12558 mm131 mm2.15 kg0174.11.67
DN 15083 mm162 mm4.38 kg0174.11.68
DN 200166 mm270 mm13.46 kg0174.11.69
DN 3240 mm75 mm0.2 kg0174.85.73
DN 250209 mm339 mm27.8 kg0174.11.70
DN 4075 mm105 mm0.26 kg0174.11.72
DN 50100 mm128 mm0.46 kg0174.11.73
DN 70118 mm157 mm0.89 kg0174.11.74
DN 80105 mm165 mm1.2 kg0174.11.75
DN 10074 mm144 mm1.3 kg0174.11.76
DN 12575 mm157 mm2.4 kg0174.11.77
DN 150125 mm205 mm5.45 kg0174.11.78
DN 200254 mm360 mm17.59 kg0174.11.79
DN 3269 mm100 mm0.2 kg0174.85.72
DN 4092 mm122 mm0.3 kg0174.11.80
DN 50120 mm148 mm0.53 kg0174.11.81
DN 70146 mm185 mm1.05 kg0174.11.82
DN 80134 mm194 mm1.2 kg0174.11.83
DN 10091 mm161 mm1.67 kg0174.11.84
DN 12597 mm179 mm2.6 kg0174.11.86
DN 150170 mm250 mm6.38 kg0174.11.87
DN 200330 mm435 mm22.85 kg0174.11.88
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 32
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg
Item no.
0174.85.79

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg
Item no.
0174.44.97

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg
Item no.
0174.44.98

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Prevents axial shifting.
  • Weight: 0.5 kg
Item no.
0174.44.99

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg
Item no.
0174.45.00

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Prevents axial shifting.
  • Weight: 1 kg
Item no.
0174.45.01

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Prevents axial shifting.
  • Weight: 1.3 kg
Item no.
0174.45.02

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 32
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg
Item no.
0174.85.98

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 40
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg
Item no.
0174.45.03

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 50
Description
  • With release catch for connector pipe/branch
  • Weight: 0.3 kg
Item no.
0174.45.04

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 70
Description
  • With release catch for connector pipe/branch
  • Weight: 0.4 kg
Item no.
0174.45.05

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 80
Description
  • With release catch for connector pipe/branch
  • Weight: 0.5 kg
Item no.
0174.45.06

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 100
Description
  • With release catch for connector pipe/branch
  • Weight: 0.9 kg
Item no.
0174.45.07

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 125
Description
  • With release catch for connector pipe/branch
  • Weight: 1.2 kg
Item no.
0174.45.08

Safety bar

Suitable for
  • GM-X drainpipes

DN 150

Description
  • Weight: 1.8 kg
Item no.
0174.45.09

Safety bar

Suitable for
  • GM-X drainpipes

DN 200

Description
  • Weight: 2.5 kg
Item no.
0174.45.10

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.60

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.61

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.62

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.63

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.64

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg
Item no.
0174.45.65

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg
Item no.
0174.45.66

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.79

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.80

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.81

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.82

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.45.83

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.45.84

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.3 kg
Item no.
0174.45.85

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.4 kg
Item no.
0174.45.86

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm
Item no.
0174.77.17

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm
Item no.
0174.77.18

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm
Item no.
0174.77.19

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm
Item no.
0174.77.20

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm
Item no.
0174.77.21

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm
Item no.
0174.77.22

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm
Item no.
0174.77.23

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.46.09

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg
Item no.
0174.46.10

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.46.11

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.46.12

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
Item no.
0174.46.13

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg
Item no.
0174.46.14

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.5 kg
Item no.
0174.46.15

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg
Item no.
0174.46.16

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
Item no.
0174.14.98
