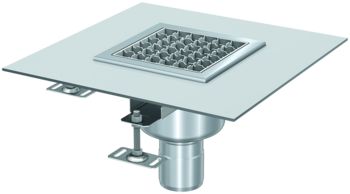

Parking deck gullies, DN 70 – DN 100

Product benefits

  • Special solution for floor slabs without floor gully

Product information

  • Made of stainless steel
  • Tested in accordance with EN 1253-2
  • Building material class A1, non-flammable
  • 1-piece
  • Incl. mesh grating
  • Socket inclination: 90°
  • With connection flange for liquid parking deck coatings
  • Load class: M 125

Nominal width: DN 70

ClassFlange designGratingRecess (LxB)Flow rateWeightItem

number
DownloadsRemember
[mm][l/s][kg]
ImageM 125For composite seals
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
500 x 5003.86.79579.59.91
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
500 x 5003.86.79579.59.92

Nominal width: DN 100

ClassFlange designGratingRecess (LxB)Flow rateWeightItem

number
DownloadsRemember
[mm][l/s][kg]
ImageM 125For composite seals
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
500 x 5004.06.99519.59.91
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
500 x 5004.06.99519.59.92
Nominal widthClassFlange designGratingRecess (LxB)Flow rateWeightItem

number
ImageDN 70M 125For composite seals
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
500 x 500 mm3.8 l/s6.7 kg9579.59.91
ImageDN 70M 125For composite seals
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
500 x 500 mm3.8 l/s6.7 kg9579.59.92
ImageDN 100M 125For composite seals
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
500 x 500 mm4.0 l/s6.9 kg9519.59.91
ImageDN 100M 125For composite seals
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
500 x 500 mm4.0 l/s6.9 kg9519.59.92
