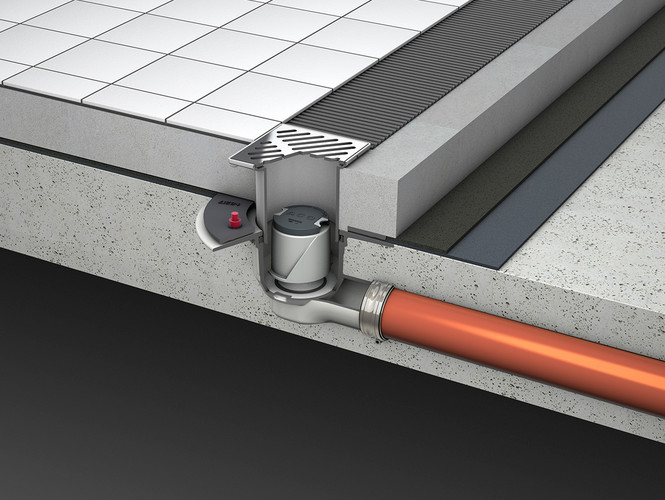

Gully body Passavant, DN 70 – socket inclination 1,5°

Product benefits

  • Building material class: A1
  • Tested and practical fire protection solutions
  • Sound insulation tested to EN 4109/VDI 4100:2012
    • Noise level: LAFmax ≤ 22 dB(A)

Product information

Flange designRecessFlow rateSurfaceWeightItem

number
Remember
[mm][l/s][kg]
ImageLocation flange360 x 1701.6Painted4.75169.20.20
ImageLocation flange360 x 1701.6Coated in white epoxy4.75169.70.20
ImageAdhesive bonding flange360 x 1801.6Painted8.35170.30.20
ImageAdhesive bonding flange360 x 1801.6Coated in white epoxy8.35170.80.20
ImageMechanical clamping flange360 x 1801.6Painted8.95171.40.20
ImageMechanical clamping flange360 x 1801.6Coated in white epoxy8.95171.90.20
Recess (LxB)Flow rateWeightItem

number
ImageLocation flange360 x 170 mm1.6 l/sWithout lateral inlet4.7 kg5169.20.20
ImageAdhesive bonding flange360 x 180 mm1.6 l/sWithout lateral inlet8.3 kg5170.30.20
ImageMechanical clamping flange360 x 180 mm1.6 l/sWithout lateral inlet8.9 kg5171.40.20
ImageLocation flange360 x 170 mm1.6 l/sWithout lateral inlet4.7 kg5169.70.20
ImageAdhesive bonding flange360 x 180 mm1.6 l/sWithout lateral inlet8.3 kg5170.80.20
ImageMechanical clamping flange360 x 180 mm1.6 l/sWithout lateral inlet8.9 kg5171.90.20

Upper part

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Made of cast iron
  • Socket diameter: 125 mm
  • With seal ring
  • With compression seal flange
  • Height-adjustability: 50 – 104 mm
  • With paint coat
  • Weight: 7.8 kg

Upper part

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Made of cast iron
  • Socket diameter: 125 mm
  • With seal ring
  • With compression seal flange
  • Height-adjustability: 50 – 104 mm
  • White epoxidized
  • Weight: 7.7 kg

Extension

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Stainless steel, material grade 304
  • Extension to max. 110 mm
  • With sealing ring
  • Weight: 0.9 kg

Connecting piece

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • Height-adjustability: 35 – 90
  • With seal ring
  • Weight: 0.3 kg

Adapter with inlet

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • With seal
  • With lateral inlet
  • DN 50
  • Weight: 0.4 kg

Odour trap

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Consisting of:
    • Bell and pneumatic pipe
  • Weight: 0.2 kg

Odour and smoke stop

Suitable for
  • Foul air trap
  • Fire protection sets
Description
  • Made of rubber
  • Only use with foul air trap or fire protection set
  • For ACO Passavant floor gully: Flow reduction to 0.3 l/s
  • Weight: 0.1 kg

Hose section DN 70/DN 80

Suitable for
  • Gully bodies Passavant
    • DN 70
  • Spin flat roof gullies
    • DN 70
Description
  • To connect DN 70 gully bodies to DN 80 SML-pipe
  • Weight: 0.1 kg

SM-X transition connector

Suitable for
  • SM-X pipe DN 70 on DN 80
Description
  • Transition connectors for SM-X pipes and fittings DN 70 on DN 80
    • L: 47 mm; H: 107 mm; D: 96 mm
  • Weight: 0.2 kg
