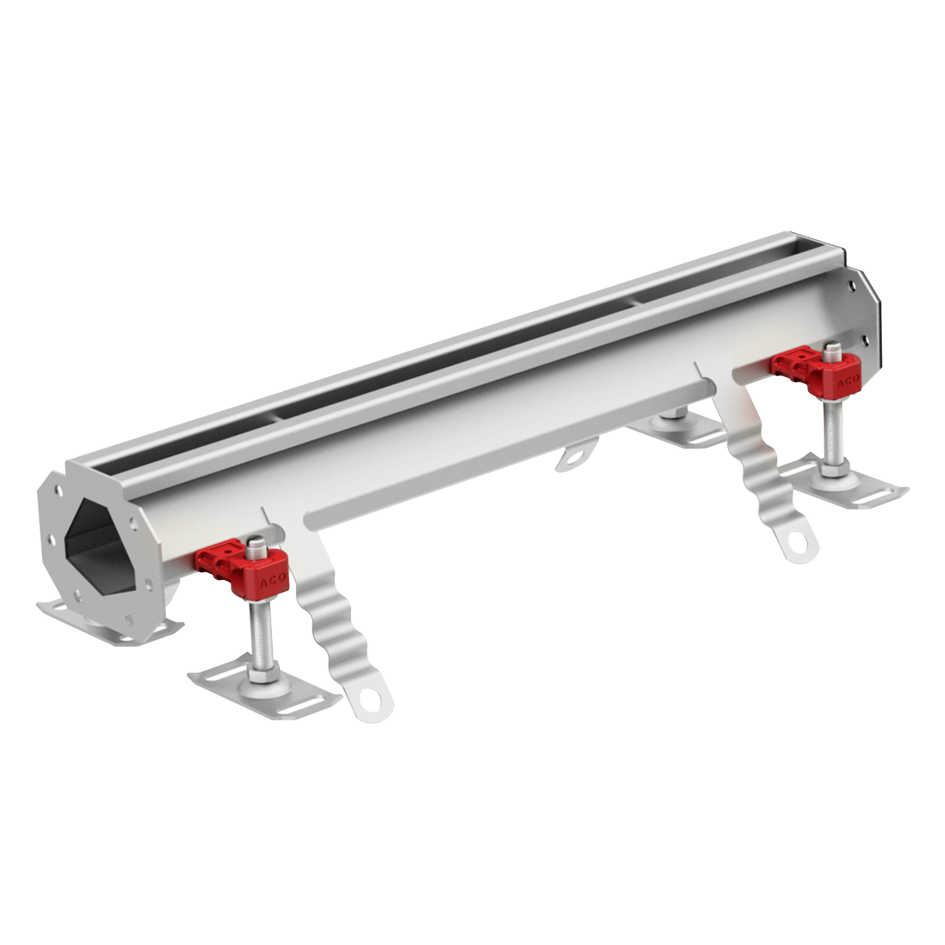

Sloping invert channel

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
  • Silt basket available as accessory
    • ACO protective cover available
  • Hygienic design is not applied for this product.
  • Inverted channel sloping provides better flow rates
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickle passivated
Channel dimensionsMaterialItem

number
DownloadsRemember
LHH2
[mm][mm][mm]
50070751.430192303
1.440492353
75801.430192304
1.440492354
100070751.430192308
1.440492358
75801.430192309
1.440492359
200070801.430192313
1.440492363
80901.430192314
1.440492364
901001.430192315
1.440492365
300070801.430192319
1.440492369
80901.430192320
1.440492370
901001.430192321
1.440492371
1001101.430192322
1.440492372
1101201.430192323
1.440492373
600070901.4301409014
1.4404409015
901101.4301409016
1.4404409017
Channel dimensionsMaterialItem

number
LHH2
500 mm70 mm75 mm1.430192303
500 mm70 mm75 mm1.440492353
500 mm75 mm80 mm1.430192304
500 mm75 mm80 mm1.440492354
1000 mm70 mm75 mm1.430192308
1000 mm70 mm75 mm1.440492358
1000 mm75 mm80 mm1.430192309
1000 mm75 mm80 mm1.440492359
2000 mm70 mm80 mm1.430192313
2000 mm70 mm80 mm1.440492363
2000 mm80 mm90 mm1.430192314
2000 mm80 mm90 mm1.440492364
2000 mm90 mm100 mm1.430192315
2000 mm90 mm100 mm1.440492365
3000 mm70 mm80 mm1.430192319
3000 mm70 mm80 mm1.440492369
3000 mm80 mm90 mm1.430192320
3000 mm80 mm90 mm1.440492370
3000 mm90 mm100 mm1.430192321
3000 mm90 mm100 mm1.440492371
3000 mm100 mm110 mm1.430192322
3000 mm100 mm110 mm1.440492372
3000 mm110 mm120 mm1.430192323
3000 mm110 mm120 mm1.440492373
6000 mm70 mm90 mm1.4301409014
6000 mm70 mm90 mm1.4404409015
6000 mm90 mm110 mm1.4301409016
6000 mm90 mm110 mm1.4404409017
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

EasyFix stabilizing set

Suitable for

ACO modular box and slot channels

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

Foul air trap + silt basket (for outlet 110 mm)

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Foul air trap + silt basket (for outlet 110 mm)

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)
