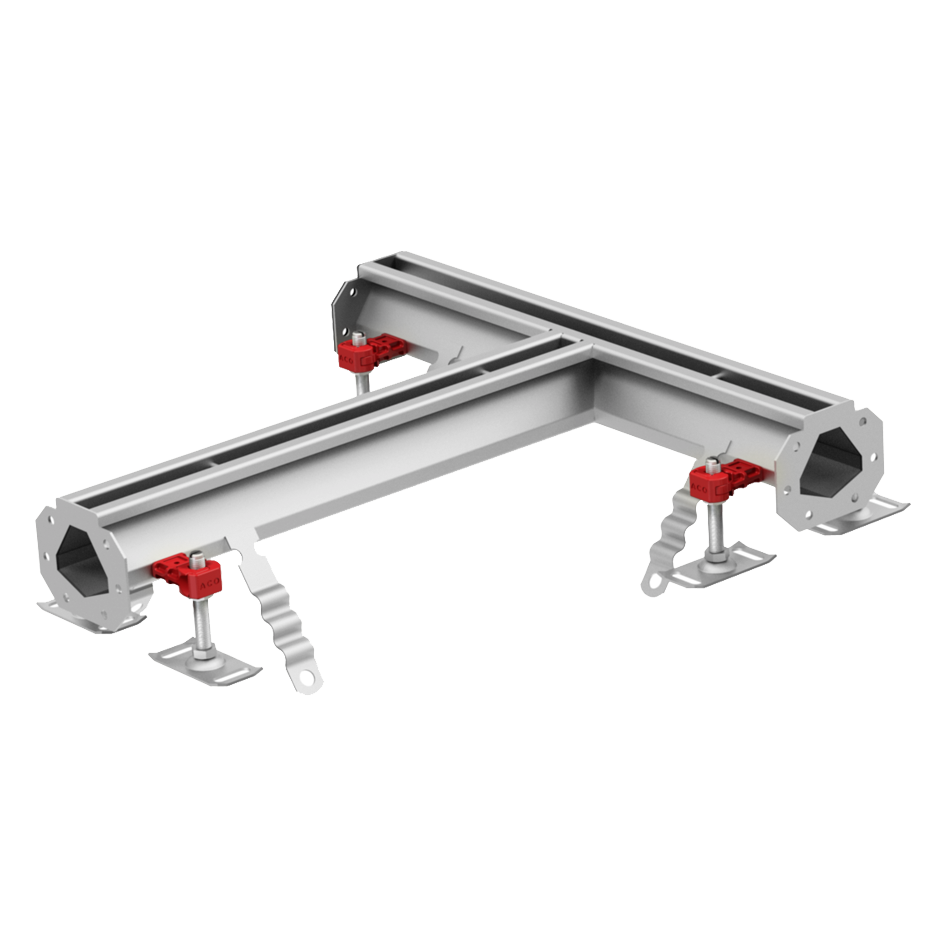

Branch unit

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
  • Silt basket available as accessory
    • ACO protective cover available
  • Hygienic design is not applied for this product.
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickle passivated
Channel dimensionsMaterialItem

number
DownloadsRemember
LH
[mm][mm]
500701.430192345
1.440492395
751.430192346
1.440492396
801.430192347
1.440492397
901.430192348
1.440492398
1001.430192349
1.440492399
1101.430192400
1.440492450
1201.430192401
1.440492451
Channel dimensionsMaterialItem

number
LH
500 mm70 mm1.430192345
500 mm70 mm1.440492395
500 mm75 mm1.430192346
500 mm75 mm1.440492396
500 mm80 mm1.430192347
500 mm80 mm1.440492397
500 mm90 mm1.430192348
500 mm90 mm1.440492398
500 mm100 mm1.430192349
500 mm100 mm1.440492399
500 mm110 mm1.430192400
500 mm110 mm1.440492450
500 mm120 mm1.430192401
500 mm120 mm1.440492451
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

EasyFix stabilizing set

Suitable for

ACO modular box and slot channels

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

Foul air trap + silt basket (for outlet 110 mm)

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Foul air trap + silt basket (for outlet 110 mm)

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)
