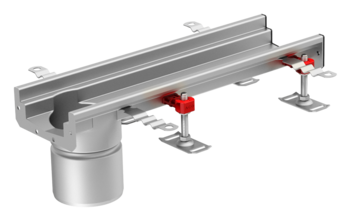

End outlet

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Fully compliant to EN 1253
  • Fully tested and classified to EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Easy and secure telescopic connection with gully
  • Cut on demand items available to minimize works on site
  • Wide range of gratings for load class up to C 250 (EN 1433)
  • ACO Pipe®Sewage pipe DN 110
Channel dimensionsMaterialItem

number
DownloadsRemember
LHD
[mm][mm][mm]
500501101.4301105175
1.4404407251
651101.4301105176
1.4404407252
801101.4301105177
1.4404407253
951101.4301105178
1.4404407254
1101101.4301105179
1.4404407255
1251101.4301105180
1.4404407256
1000501101.4301105183
1.4404407257
651101.4301105184
1.4404407258
801101.4301105185
1.4404407259
951101.4301105186
1.4404407260
1101101.4301105187
1.4404407261
1251101.4301105188
1.4404407262
500501251.4301415946
1.4404415991
500651251.4301415941
500651251.4404415992
801251.4301415948
1.4404415993
951251.4301415949
1.4404415994
1101251.4301415950
1.4404415995
1251251.4301415951
1.4404415996
1000501251.4301415952
1.4404415997
651251.4301415953
1.4404415998
801251.4301415954
1.4404415999
951251.4301415955
1.4404416000
1101251.4301415956
1.4404416001
1251251.4301415957
1.4404416002
500501421.4301409732
1.4404409733
651421.4301409736
1.4404409737
500801421.4301409740
500801421.4404409741
951421.4301409744
1.4404409745
1101421.4301409724
1.4404409725
1251421.4301409728
1.4404409729
1000501421.4301409708
1.4404409709
651421.4301409712
1.4404409713
801421.4301409716
1.4404409717
951421.4301409720
1.4404409721
1101421.4301409700
1.4404409701
1251421.4301409704
1.4404409705
Channel dimensionsMaterialItem

number
LHD
500 mm50 mm110 mm1.4301105175
500 mm50 mm110 mm1.4404407251
500 mm65 mm110 mm1.4301105176
500 mm65 mm110 mm1.4404407252
500 mm80 mm110 mm1.4301105177
500 mm80 mm110 mm1.4404407253
500 mm95 mm110 mm1.4301105178
500 mm95 mm110 mm1.4404407254
500 mm110 mm110 mm1.4301105179
500 mm110 mm110 mm1.4404407255
500 mm125 mm110 mm1.4301105180
500 mm125 mm110 mm1.4404407256
1000 mm50 mm110 mm1.4301105183
1000 mm50 mm110 mm1.4404407257
1000 mm65 mm110 mm1.4301105184
1000 mm65 mm110 mm1.4404407258
1000 mm80 mm110 mm1.4301105185
1000 mm80 mm110 mm1.4404407259
1000 mm95 mm110 mm1.4301105186
1000 mm95 mm110 mm1.4404407260
1000 mm110 mm110 mm1.4301105187
1000 mm110 mm110 mm1.4404407261
1000 mm125 mm110 mm1.4301105188
1000 mm125 mm110 mm1.4404407262
500 mm50 mm125 mm1.4301415946
500 mm50 mm125 mm1.4404415991
500 mm65 mm125 mm1.4301415941
500 mm65 mm125 mm1.4404415992
500 mm80 mm125 mm1.4301415948
500 mm80 mm125 mm1.4404415993
500 mm95 mm125 mm1.4301415949
500 mm95 mm125 mm1.4404415994
500 mm110 mm125 mm1.4301415950
500 mm110 mm125 mm1.4404415995
500 mm125 mm125 mm1.4301415951
500 mm125 mm125 mm1.4404415996
1000 mm50 mm125 mm1.4301415952
1000 mm50 mm125 mm1.4404415997
1000 mm65 mm125 mm1.4301415953
1000 mm65 mm125 mm1.4404415998
1000 mm80 mm125 mm1.4301415954
1000 mm80 mm125 mm1.4404415999
1000 mm95 mm125 mm1.4301415955
1000 mm95 mm125 mm1.4404416000
1000 mm110 mm125 mm1.4301415956
1000 mm110 mm125 mm1.4404416001
1000 mm125 mm125 mm1.4301415957
1000 mm125 mm125 mm1.4404416002
500 mm50 mm142 mm1.4301409732
500 mm50 mm142 mm1.4404409733
500 mm65 mm142 mm1.4301409736
500 mm65 mm142 mm1.4404409737
500 mm80 mm142 mm1.4301409740
500 mm80 mm142 mm1.4404409741
500 mm95 mm142 mm1.4301409744
500 mm95 mm142 mm1.4404409745
500 mm110 mm142 mm1.4301409724
500 mm110 mm142 mm1.4404409725
500 mm125 mm142 mm1.4301409728
500 mm125 mm142 mm1.4404409729
1000 mm50 mm142 mm1.4301409708
1000 mm50 mm142 mm1.4404409709
1000 mm65 mm142 mm1.4301409712
1000 mm65 mm142 mm1.4404409713
1000 mm80 mm142 mm1.4301409716
1000 mm80 mm142 mm1.4404409717
1000 mm95 mm142 mm1.4301409720
1000 mm95 mm142 mm1.4404409721
1000 mm110 mm142 mm1.4301409700
1000 mm110 mm142 mm1.4404409701
1000 mm125 mm142 mm1.4301409704
1000 mm125 mm142 mm1.4404409705
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Sieve (for outlet 110 mm)

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description
  • Stainless steel
  • Material grade 1.4301 (304)

Sieve (for outlet 110 mm)

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description
  • Stainless steel
  • Material grade 1.4404 (316L)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

EasyFix stabilizing set

Suitable for

ACO modular box and slot channels

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Silt basket (for outlet 142 mm)

Suitable for
  • ACO box channel 125
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Silt basket (for outlet 142 mm)

Suitable for
  • ACO box channel 125
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)
