ACO hygienic box channel - standard edge

Product benefits

ACO hygienic drainage developed under HygieneFirst philosophy fulfils strongest hygienic requirements and applies relevant hygienic design principles reserved for food processing equipment.
- Fully inspectable and cleanable
- Full drainability
- Internal radii equal or larger than 3 mm
- Minimal longitudinal slope 1%
- Minimal sectional slope 5°
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated

Contact

Downloads

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Outlet diameter 125, 142 or 200 mm
V-shape bottom for width up to 300 mm, reinforced bottom for width above and including 400 mm
Adjustable EasyFix levelling feet
Anchors for fixing in concrete
Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution

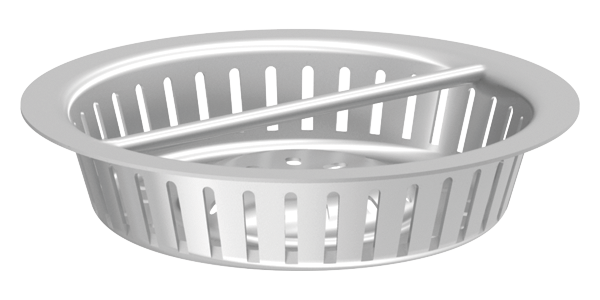

Silt basket available as accessory

Dimensions							Gully compatibility	Material	Item number
Wo	Wi	Lo	Li	H1	H2	D
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
200	170	530	500	50	60	125	ACO hygienic gully 142	1.4301	416584
		530	500	50	60	125	ACO hygienic gully 142	1.4404	416602
		830	800	50	60	125	ACO hygienic gully 142	1.4301	416585
		830	800	50	60	125	ACO hygienic gully 142	1.4404	416603
		1030	1000	50	60	125	ACO hygienic gully 142	1.4301	416586
		1030	1000	50	60	125	ACO hygienic gully 142	1.4404	416604
		1230	1200	50	60	125	ACO hygienic gully 142	1.4301	416587
		1230	1200	50	60	125	ACO hygienic gully 142	1.4404	416605
		1530	1500	50	60	125	ACO hygienic gully 142	1.4301	416588
		1530	1500	50	60	125	ACO hygienic gully 142	1.4404	416606
		2030	2000	50	60	125	ACO hygienic gully 142	1.4301	416589
		2030	2000	50	60	125	ACO hygienic gully 142	1.4404	416607
		530	500	50	60	142	ACO hygienic gully 157	1.4301	416590
		530	500	50	60	142	ACO hygienic gully 157	1.4404	416608
		830	800	50	60	142	ACO hygienic gully 157	1.4301	416591
		830	800	50	60	142	ACO hygienic gully 157	1.4404	416609
		1030	1000	50	60	142	ACO hygienic gully 157	1.4301	416592
		1030	1000	50	60	142	ACO hygienic gully 157	1.4404	416610
		1230	1200	50	60	142	ACO hygienic gully 157	1.4301	416593
		1230	1200	50	60	142	ACO hygienic gully 157	1.4404	416611
		1530	1500	50	60	142	ACO hygienic gully 157	1.4301	416594
		1530	1500	50	60	142	ACO hygienic gully 157	1.4404	416612
		2030	2000	50	60	142	ACO hygienic gully 157	1.4301	416595
		2030	2000	50	60	142	ACO hygienic gully 157	1.4404	416613
300	270	330	300	50	55	142	ACO hygienic gully 157	1.4301	416614
		330	300	50	55	142	ACO hygienic gully 157	1.4404	416628
		630	600	50	60	142	ACO hygienic gully 157	1.4301	416615
		630	600	50	60	142	ACO hygienic gully 157	1.4404	416629
		1030	1000	50	60	142	ACO hygienic gully 157	1.4301	416616
		1030	1000	50	60	142	ACO hygienic gully 157	1.4404	416630
		1530	1500	50	60	142	ACO hygienic gully 157	1.4301	416617
		1530	1500	50	60	142	ACO hygienic gully 157	1.4404	416631
		2030	2000	50	60	142	ACO hygienic gully 157	1.4301	416618
		2030	2000	50	60	142	ACO hygienic gully 157	1.4404	416632
		3030	3000	50	70	142	ACO hygienic gully 157	1.4301	416619
		3030	3000	50	70	142	ACO hygienic gully 157	1.4404	416633
		4030	4000	50	80	142	ACO hygienic gully 157	1.4301	416620
		4030	4000	50	80	142	ACO hygienic gully 157	1.4404	416634
400	370	430	400	50	60	142	ACO hygienic gully 157	1.4301	416642
		430	400	50	60	142	ACO hygienic gully 157	1.4404	416648
		630	600	50	60	142	ACO hygienic gully 157	1.4301	416643
		630	600	50	60	142	ACO hygienic gully 157	1.4404	416649
		830	800	50	60	142	ACO hygienic gully 157	1.4301	416644
		830	800	50	60	142	ACO hygienic gully 157	1.4404	416650
500	470	530	500	50	65	142	ACO hygienic gully 157	1.4301	416654
		530	500	50	65	142	ACO hygienic gully 157	1.4404	416660
		830	800	50	65	142	ACO hygienic gully 157	1.4301	416655
		830	800	50	65	142	ACO hygienic gully 157	1.4404	416661
		1030	1000	50	65	142	ACO hygienic gully 157	1.4301	416656
		1030	1000	50	65	142	ACO hygienic gully 157	1.4404	416662
300	270	330	300	50	55	200	ACO hygienic gully 218	1.4301	416621
		330	300	50	55	200	ACO hygienic gully 218	1.4404	416635
		630	600	50	60	200	ACO hygienic gully 218	1.4301	416622
		630	600	50	60	200	ACO hygienic gully 218	1.4404	416636
		1030	1000	50	60	200	ACO hygienic gully 218	1.4301	416623
		1030	1000	50	60	200	ACO hygienic gully 218	1.4404	416637
		1530	1500	50	60	200	ACO hygienic gully 218	1.4301	416624
		1530	1500	50	60	200	ACO hygienic gully 218	1.4404	416638
		2030	2000	50	60	200	ACO hygienic gully 218	1.4301	416625
		2030	2000	50	60	200	ACO hygienic gully 218	1.4404	416639
		3030	3000	50	70	200	ACO hygienic gully 218	1.4301	416626
		3030	3000	50	70	200	ACO hygienic gully 218	1.4404	416640
		4030	4000	50	80	200	ACO hygienic gully 218	1.4301	416627
		4030	4000	50	80	200	ACO hygienic gully 218	1.4404	416641
400	370	430	400	50	60	200	ACO hygienic gully 218	1.4301	416645
		430	400	50	60	200	ACO hygienic gully 218	1.4404	416651
		630	600	50	60	200	ACO hygienic gully 218	1.4301	416646
		630	600	50	60	200	ACO hygienic gully 218	1.4404	416652
		830	800	50	60	200	ACO hygienic gully 218	1.4301	416647
		830	800	50	60	200	ACO hygienic gully 218	1.4404	416653
500	470	530	500	50	65	200	ACO hygienic gully 218	1.4301	416657
		530	500	50	65	200	ACO hygienic gully 218	1.4404	416663
		830	800	50	65	200	ACO hygienic gully 218	1.4301	416658
		830	800	50	65	200	ACO hygienic gully 218	1.4404	416664
		1030	1000	50	65	200	ACO hygienic gully 218	1.4301	416659
		1030	1000	50	65	200	ACO hygienic gully 218	1.4404	416665
600	570	630	600	50	70	200	ACO hygienic gully 218	1.4301	416666
		630	600	50	70	200	ACO hygienic gully 218	1.4404	416669
		930	900	50	70	200	ACO hygienic gully 218	1.4301	416667
		930	900	50	70	200	ACO hygienic gully 218	1.4404	416670
		1230	1200	50	70	200	ACO hygienic gully 218	1.4301	416668
		1230	1200	50	70	200	ACO hygienic gully 218	1.4404	416671
800	770	830	800	50	80	200	ACO hygienic gully 218	1.4301	416672
800	770	830	800	50	80	200	ACO hygienic gully 218	1.4404	416673

Dimensions							Gully compatibility	Material	Item number
Wo	Wi	Lo	Li	H1	H2	D	Gully compatibility	Material	Item number
200 mm	170 mm	530 mm	500 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4301	416584
		530 mm	500 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4404	416602
		830 mm	800 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4301	416585
		830 mm	800 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4404	416603
		1030 mm	1000 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4301	416586
		1030 mm	1000 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4404	416604
		1230 mm	1200 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4301	416587
		1230 mm	1200 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4404	416605
		1530 mm	1500 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4301	416588
		1530 mm	1500 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4404	416606
		2030 mm	2000 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4301	416589
		2030 mm	2000 mm	50 mm	60 mm	125 mm	ACO hygienic gully 142	1.4404	416607
		530 mm	500 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416590
		530 mm	500 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416608
		830 mm	800 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416591
		830 mm	800 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416609
		1030 mm	1000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416592
		1030 mm	1000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416610
		1230 mm	1200 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416593
		1230 mm	1200 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416611
		1530 mm	1500 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416594
		1530 mm	1500 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416612
		2030 mm	2000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416595
		2030 mm	2000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416613
300 mm	270 mm	330 mm	300 mm	50 mm	55 mm	142 mm	ACO hygienic gully 157	1.4301	416614
		330 mm	300 mm	50 mm	55 mm	142 mm	ACO hygienic gully 157	1.4404	416628
		630 mm	600 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416615
		630 mm	600 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416629
		1030 mm	1000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416616
		1030 mm	1000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416630
		1530 mm	1500 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416617
		1530 mm	1500 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416631
		2030 mm	2000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416618
		2030 mm	2000 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416632
		3030 mm	3000 mm	50 mm	70 mm	142 mm	ACO hygienic gully 157	1.4301	416619
		3030 mm	3000 mm	50 mm	70 mm	142 mm	ACO hygienic gully 157	1.4404	416633
		4030 mm	4000 mm	50 mm	80 mm	142 mm	ACO hygienic gully 157	1.4301	416620
		4030 mm	4000 mm	50 mm	80 mm	142 mm	ACO hygienic gully 157	1.4404	416634
400 mm	370 mm	430 mm	400 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416642
		430 mm	400 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416648
		630 mm	600 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416643
		630 mm	600 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416649
		830 mm	800 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416644
		830 mm	800 mm	50 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416650
500 mm	470 mm	530 mm	500 mm	50 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416654
		530 mm	500 mm	50 mm	65 mm	142 mm	ACO hygienic gully 157	1.4404	416660
		830 mm	800 mm	50 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416655
		830 mm	800 mm	50 mm	65 mm	142 mm	ACO hygienic gully 157	1.4404	416661
		1030 mm	1000 mm	50 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416656
		1030 mm	1000 mm	50 mm	65 mm	142 mm	ACO hygienic gully 157	1.4404	416662
300 mm	270 mm	330 mm	300 mm	50 mm	55 mm	200 mm	ACO hygienic gully 218	1.4301	416621
		330 mm	300 mm	50 mm	55 mm	200 mm	ACO hygienic gully 218	1.4404	416635
		630 mm	600 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416622
		630 mm	600 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416636
		1030 mm	1000 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416623
		1030 mm	1000 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416637
		1530 mm	1500 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416624
		1530 mm	1500 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416638
		2030 mm	2000 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416625
		2030 mm	2000 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416639
		3030 mm	3000 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416626
		3030 mm	3000 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4404	416640
		4030 mm	4000 mm	50 mm	80 mm	200 mm	ACO hygienic gully 218	1.4301	416627
		4030 mm	4000 mm	50 mm	80 mm	200 mm	ACO hygienic gully 218	1.4404	416641
400 mm	370 mm	430 mm	400 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416645
		430 mm	400 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416651
		630 mm	600 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416646
		630 mm	600 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416652
		830 mm	800 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416647
		830 mm	800 mm	50 mm	60 mm	200 mm	ACO hygienic gully 218	1.4404	416653
500 mm	470 mm	530 mm	500 mm	50 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416657
		530 mm	500 mm	50 mm	65 mm	200 mm	ACO hygienic gully 218	1.4404	416663
		830 mm	800 mm	50 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416658
		830 mm	800 mm	50 mm	65 mm	200 mm	ACO hygienic gully 218	1.4404	416664
		1030 mm	1000 mm	50 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416659
		1030 mm	1000 mm	50 mm	65 mm	200 mm	ACO hygienic gully 218	1.4404	416665
600 mm	570 mm	630 mm	600 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416666
		630 mm	600 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4404	416669
		930 mm	900 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416667
		930 mm	900 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4404	416670
		1230 mm	1200 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416668
		1230 mm	1200 mm	50 mm	70 mm	200 mm	ACO hygienic gully 218	1.4404	416671
800 mm	770 mm	830 mm	800 mm	50 mm	80 mm	200 mm	ACO hygienic gully 218	1.4301	416672
800 mm	770 mm	830 mm	800 mm	50 mm	80 mm	200 mm	ACO hygienic gully 218	1.4404	416673

ACO frameless ladder grating

ACO hygienic ladder grating

ACO hygienic slot cover

ACO mesh grating

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 125 mm

Description

Replacement sealing ring:

Optional compatible silt baskets:

449960 (1.4301)
449961 (1.4404)

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 1.2 l/s
Maximum flow rate with vertical gully: 1.2 l/s
Material: 1.4301
Silt basket not included
Weight: 0.6 kg

Downloads

Add to wallet

Item no.
449677

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 125 mm

Description

Replacement sealing ring:

Optional compatible silt baskets:

449960 (1.4301)
449961 (1.4404)

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 1.2 l/s
Maximum flow rate with vertical gully: 1.2 l/s
Material: 1.4404
Silt basket not included
Weight: 0.6 kg

Downloads

Add to wallet

Item no.
449679

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 125 mm

Description

Replacement sealing ring:

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 0.8 l/s
Maximum flow rate with vertical gully: 0.8 l/s
Material: 1.4301
Silt basket included
Weight: 0.7 kg

Downloads

Add to wallet

Item no.
449678

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 125 mm

Description

Replacement sealing ring:

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 0.8 l/s
Maximum flow rate with vertical gully: 0.8 l/s
Material: 1.4404
Silt basket included
Weight: 0.7 kg

Downloads

Add to wallet

Item no.
449680

Silt basket

Suitable for

Compatible only with Easy FAT 125

449677
449679

Description

Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
449960

Silt basket

Suitable for

Compatible only with Easy FAT 125

449677
449679

Description

Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
449961

EasyFix stabilizing set

Suitable for

ACO hygienic and commercial box channels, width 200 mm
ACO vinyl box channels, width 170 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Downloads

Add to wallet

Item no.
446513

EasyFix stabilizing set

Suitable for

ACO hygienic and commercial box channels, width 300 mm
ACO vinyl box channels, width 270 mm
ACO modular box channel 270

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Downloads

Add to wallet

Item no.
446514

EasyFix stabilizing set

Suitable for

ACO hygienic and commercial box channels, width 400 mm
ACO vinyl box channels, width 370 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Downloads

Add to wallet

Item no.
446515

EasyFix stabilizing set

Suitable for

ACO hygienic and commercial box channels, width 500 mm
ACO vinyl box channels, width 470 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Downloads

Add to wallet

Item no.
446516

EasyFix stabilizing set

Suitable for

ACO hygienic and commercial box channels, width 600 mm
ACO vinyl box channels, width 570 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Downloads

Add to wallet

Item no.
446517

EasyFix stabilizing set

Suitable for

ACO hygienic and commercial box channels, width 800 mm
ACO vinyl box channels, width 770 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Downloads

Add to wallet

Item no.
446518

ACO tundish portable

Suitable for

ACO drainage independent of visible edge dimensions

Description

Stainless steel
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
415821

Silt basket

Suitable for

ACO gully 142 - Telescopic
- Vertical or horizontal
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
- Outlet øD [mm]: 125
- Direction of gully outlet: vertical, horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: vertical

Description

Stainless steel
0,4 litre capacity
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
416900

Silt basket

Suitable for

ACO gully 142 - Telescopic
- Vertical or horizontal
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
- Outlet øD [mm]: 125
- Direction of gully outlet: vertical, horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: vertical

Description

Stainless steel
0,4 litre capacity
Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
416901

Silt basket

Suitable for

ACO gully 142 - Fixed height
- Vertical or horizontal
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: welded with ACO hygienic gully 142
- Direction of gully outlet: vertical, horizontal

Description

Stainless steel
0,3 litre capacity
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
416902

Silt basket

Suitable for

ACO gully 142 - Fixed height
- Vertical or horizontal
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: welded with ACO hygienic gully 142
- Direction of gully outlet: vertical, horizontal

Description

Stainless steel
0,3 litre capacity
Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
416903

Silt basket

Suitable for

Compatible only with Easy FAT 142

448810
448811

Description

Material grade: 1.4301

Downloads

Add to wallet

Item no.
414740

Silt basket

Suitable for

Compatible only with Easy FAT 142

448810
448811

Description

Material grade: 1.4404

Downloads

Add to wallet

Item no.
414840

ACO Easy FAT 142

Suitable for

ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 142 mm

Description

Replacement sealing ring:

Optional compatible silt baskets:

414740 (1.4301)
414840 (1.4404)

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 2.15 l/s
Maximum flow rate with vertical gully: 2.6 l/s
Material: 1.4301
Silt basket not included

Downloads

Add to wallet

Item no.
448810

ACO Easy FAT 142

Suitable for

ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 142 mm

Description

Replacement sealing ring:

Optional compatible silt baskets:

414740 (1.4301)
414840 (1.4404)

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 2.15 l/s
Maximum flow rate with vertical gully: 2.6 l/s
Material: 1.4404
Silt basket not included

Downloads

Add to wallet

Item no.
448811

ACO Easy FAT 142

Suitable for

ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 142 mm

Description

Replacement sealing ring:

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 2.1 l/s
Maximum flow rate with vertical gully: 2.4 l/s
Material: 1.4301
Silt basket included

Downloads

Add to wallet

Item no.
449096

ACO Easy FAT 142

Suitable for

ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
ACO modular channels - top section outlet øD 142 mm

Description

Replacement sealing ring:

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 2.1 l/s
Maximum flow rate with vertical gully: 2.4 l/s
Material: 1.4404
Silt basket included

Downloads

Add to wallet

Item no.
449128

Silt basket

Suitable for

ACO gully 157 - vertical
- Fixed height or elescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical

Description

Stainless steel
0,6 litre capacity
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
416904

Silt basket

Suitable for

ACO gully 157 - vertical
- Fixed height or elescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical

Description

Stainless steel
0,6 litre capacity
Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
416905

Silt basket

Suitable for

ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal

Description

Stainless steel
0,3 litre capacity
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
416906

Silt basket

Suitable for

ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal

Description

Stainless steel
0,3 litre capacity
Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
416907

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
ACO modular channels - top section outlet øD 200 mm

Description

Replacement sealing ring:

Optional compatible silt baskets:

449962 (1.4301)
449963 (1.4404)

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 4.2 l/s
Maximum flow rate with vertical gully: 6.2 l/s
Material: 1.4301
Silt basket not included
Weight: 1.4 kg

Downloads

Add to wallet

Item no.
449685

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
ACO modular channels - top section outlet øD 200 mm

Description

Replacement sealing ring:

Optional compatible silt baskets:

449962 (1.4301)
449963 (1.4404)

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 4.2 l/s
Maximum flow rate with vertical gully: 6.2 l/s
Material: 1.4404
Silt basket not included
Weight: 1.4 kg

Downloads

Add to wallet

Item no.
449687

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
ACO modular channels - top section outlet øD 200 mm

Description

Replacement sealing ring:

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 3.6 l/s
Maximum flow rate with vertical gully: 4.2 l/s
Material: 1.4301
Silt basket included
Weight: 1.9 kg

Downloads

Add to wallet

Item no.
449686

ACO Easy FAT

Suitable for

ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
ACO modular channels - top section outlet øD 200 mm

Description

Replacement sealing ring:

Benefits

User-friendly installation and maintenance
Complete ease in removing and cleaning
Minimum steel thickness of 1.2 mm
Fully pickled and passivated
Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

Maximum flow rate with horizontal gully: 3.6 l/s
Maximum flow rate with vertical gully: 4.2 l/s
Material: 1.4404
Silt basket included
Weight: 1.9 kg

Downloads

Add to wallet

Item no.
449688

Silt basket

Suitable for

Compatible only with Easy FAT 200

449685
449687

Description

Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
449962

Silt basket

Suitable for

Compatible only with Easy FAT 200

449685
449687

Description

Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
449963

Silt basket

Suitable for

ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical

Description

Stainless steel

1,4 litre capacity
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
416908

Silt basket

Suitable for

ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical

Description

Stainless steel

1,4 litre capacity
Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
416909

Silt basket

Suitable for

ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal

Description

Stainless steel

0,7 litre capacity
Material grade 1.4301 (304)

Downloads

Add to wallet

Item no.
416910

Silt basket

Suitable for

ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal

Description

Stainless steel

0,7 litre capacity
Material grade 1.4404 (316L)

Downloads

Add to wallet

Item no.
416911

Browser not supported

ACO hygienic box channel - standard edge

Product benefits

Product information

ACO Easy FAT

Suitable for

Description

ACO Easy FAT

Suitable for

Description

ACO Easy FAT

Suitable for

Description

ACO Easy FAT

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

EasyFix stabilizing set

Suitable for

Description

EasyFix stabilizing set

Suitable for

Description

EasyFix stabilizing set

Suitable for

Description

EasyFix stabilizing set

Suitable for

Description

EasyFix stabilizing set

Suitable for

Description

EasyFix stabilizing set

Suitable for

Description

ACO tundish portable

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

ACO Easy FAT 142

Suitable for

Description

ACO Easy FAT 142

Suitable for

Description

ACO Easy FAT 142

Suitable for

Description

ACO Easy FAT 142

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket

Suitable for

Description

Silt basket
