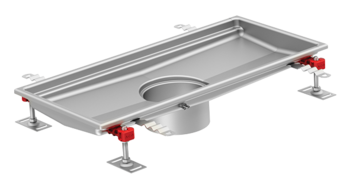

ACO hygienic box channel - standard edge

Product benefits

  • ACO hygienic drainage developed under HygieneFirst philosophy fulfils strongest hygienic requirements and applies relevant hygienic design principles reserved for food processing equipment.
    • Fully inspectable and cleanable
    • Full drainability
    • Internal radii equal or larger than 3 mm
    • Minimal longitudinal slope 1%
    • Minimal sectional slope 5°
    • Fully welded hygienic joints
    • Steel thickness min. 1,5 mm
    • Edge infill
    • ACO protective cover available
    • Fully pickled and passivated

Product information

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Outlet diameter 125, 142 or 200 mm
  • V-shape bottom for width up to 300 mm, reinforced bottom for width above and including 400 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
  • Silt basket available as accessory
Channel dimensionsCompatible with gullyMaterialItem

number
DownloadsRemember
WoWiLoLiH2D
[mm][mm][mm][mm][mm][mm]
20017053050060125ACO hygienic gully 1421.4301416584
20017053050060125ACO hygienic gully 1421.4404416602
20017083080060125ACO hygienic gully 1421.4301416585
20017083080060125ACO hygienic gully 1421.4404416603
2001701030100060125ACO hygienic gully 1421.4301416586
2001701030100060125ACO hygienic gully 1421.4404416604
2001701230120060125ACO hygienic gully 1421.4301416587
2001701230120060125ACO hygienic gully 1421.4404416605
2001701530150060125ACO hygienic gully 1421.4301416588
2001701530150060125ACO hygienic gully 1421.4404416606
2001702030200060125ACO hygienic gully 1421.4301416589
2001702030200060125ACO hygienic gully 1421.4404416607
20017053050060142ACO hygienic gully 1571.4301416590
20017053050060142ACO hygienic gully 1571.4404416608
20017083080060142ACO hygienic gully 1571.4301416591
20017083080060142ACO hygienic gully 1571.4404416609
2001701030100060142ACO hygienic gully 1571.4301416592
2001701030100060142ACO hygienic gully 1571.4404416610
2001701230120060142ACO hygienic gully 1571.4301416593
2001701230120060142ACO hygienic gully 1571.4404416611
2001701530150060142ACO hygienic gully 1571.4301416594
2001701530150060142ACO hygienic gully 1571.4404416612
2001702030200060142ACO hygienic gully 1571.4301416595
2001702030200060142ACO hygienic gully 1571.4404416613
30027033030055142ACO hygienic gully 1571.4301416614
30027033030055142ACO hygienic gully 1571.4404416628
30027063060060142ACO hygienic gully 1571.4301416615
30027063060060142ACO hygienic gully 1571.4404416629
3002701030100060142ACO hygienic gully 1571.4301416616
3002701030100060142ACO hygienic gully 1571.4404416630
3002701530150060142ACO hygienic gully 1571.4301416617
3002701530150060142ACO hygienic gully 1571.4404416631
3002702030200060142ACO hygienic gully 1571.4301416618
3002702030200060142ACO hygienic gully 1571.4404416632
3002703030300070142ACO hygienic gully 1571.4301416619
3002703030300070142ACO hygienic gully 1571.4404416633
3002704030400080142ACO hygienic gully 1571.4301416620
3002704030400080142ACO hygienic gully 1571.4404416634
40037043040060142ACO hygienic gully 1571.4301416642
40037043040060142ACO hygienic gully 1571.4404416648
40037063060060142ACO hygienic gully 1571.4301416643
40037063060060142ACO hygienic gully 1571.4404416649
40037083080060142ACO hygienic gully 1571.4301416644
40037083080060142ACO hygienic gully 1571.4404416650
50047053050065142ACO hygienic gully 1571.4301416654
50047053050065142ACO hygienic gully 1571.4404416660
50047083080065142ACO hygienic gully 1571.4301416655
50047083080065142ACO hygienic gully 1571.4404416661
5004701030100065142ACO hygienic gully 1571.4301416656
5004701030100065142ACO hygienic gully 1571.4404416662
30027033030055200ACO hygienic gully 2181.4301416621
30027033030055200ACO hygienic gully 2181.4404416635
30027063060060200ACO hygienic gully 2181.4301416622
30027063060060200ACO hygienic gully 2181.4404416636
3002701030100060200ACO hygienic gully 2181.4301416623
3002701030100060200ACO hygienic gully 2181.4404416637
3002701530150060200ACO hygienic gully 2181.4301416624
3002701530150060200ACO hygienic gully 2181.4404416638
3002702030200060200ACO hygienic gully 2181.4301416625
3002702030200060200ACO hygienic gully 2181.4404416639
3002703030300070200ACO hygienic gully 2181.4301416626
3002703030300070200ACO hygienic gully 2181.4404416640
3002704030400080200ACO hygienic gully 2181.4301416627
3002704030400080200ACO hygienic gully 2181.4404416641
40037043040060200ACO hygienic gully 2181.4301416645
40037043040060200ACO hygienic gully 2181.4404416651
40037063060060200ACO hygienic gully 2181.4301416646
40037063060060200ACO hygienic gully 2181.4404416652
40037083080060200ACO hygienic gully 2181.4301416647
40037083080060200ACO hygienic gully 2181.4404416653
50047053050065200ACO hygienic gully 2181.4301416657
50047053050065200ACO hygienic gully 2181.4404416663
50047083080065200ACO hygienic gully 2181.4301416658
50047083080065200ACO hygienic gully 2181.4404416664
5004701030100065200ACO hygienic gully 2181.4301416659
5004701030100065200ACO hygienic gully 2181.4404416665
60057063060070200ACO hygienic gully 2181.4301416666
60057063060070200ACO hygienic gully 2181.4404416669
60057093090070200ACO hygienic gully 2181.4301416667
60057093090070200ACO hygienic gully 2181.4404416670
6005701230120070200ACO hygienic gully 2181.4301416668
6005701230120070200ACO hygienic gully 2181.4404416671
80077083080080200ACO hygienic gully 2181.4301416672
80077083080080200ACO hygienic gully 2181.4404416673
Channel dimensionsCompatible with gullyMaterialItem

number
WoWiLoLiH2D
200 mm170 mm530 mm500 mm60 mm125 mmACO hygienic gully 1421.4301416584
200 mm170 mm530 mm500 mm60 mm125 mmACO hygienic gully 1421.4404416602
200 mm170 mm830 mm800 mm60 mm125 mmACO hygienic gully 1421.4301416585
200 mm170 mm830 mm800 mm60 mm125 mmACO hygienic gully 1421.4404416603
200 mm170 mm1030 mm1000 mm60 mm125 mmACO hygienic gully 1421.4301416586
200 mm170 mm1030 mm1000 mm60 mm125 mmACO hygienic gully 1421.4404416604
200 mm170 mm1230 mm1200 mm60 mm125 mmACO hygienic gully 1421.4301416587
200 mm170 mm1230 mm1200 mm60 mm125 mmACO hygienic gully 1421.4404416605
200 mm170 mm1530 mm1500 mm60 mm125 mmACO hygienic gully 1421.4301416588
200 mm170 mm1530 mm1500 mm60 mm125 mmACO hygienic gully 1421.4404416606
200 mm170 mm2030 mm2000 mm60 mm125 mmACO hygienic gully 1421.4301416589
200 mm170 mm2030 mm2000 mm60 mm125 mmACO hygienic gully 1421.4404416607
200 mm170 mm530 mm500 mm60 mm142 mmACO hygienic gully 1571.4301416590
200 mm170 mm530 mm500 mm60 mm142 mmACO hygienic gully 1571.4404416608
200 mm170 mm830 mm800 mm60 mm142 mmACO hygienic gully 1571.4301416591
200 mm170 mm830 mm800 mm60 mm142 mmACO hygienic gully 1571.4404416609
200 mm170 mm1030 mm1000 mm60 mm142 mmACO hygienic gully 1571.4301416592
200 mm170 mm1030 mm1000 mm60 mm142 mmACO hygienic gully 1571.4404416610
200 mm170 mm1230 mm1200 mm60 mm142 mmACO hygienic gully 1571.4301416593
200 mm170 mm1230 mm1200 mm60 mm142 mmACO hygienic gully 1571.4404416611
200 mm170 mm1530 mm1500 mm60 mm142 mmACO hygienic gully 1571.4301416594
200 mm170 mm1530 mm1500 mm60 mm142 mmACO hygienic gully 1571.4404416612
200 mm170 mm2030 mm2000 mm60 mm142 mmACO hygienic gully 1571.4301416595
200 mm170 mm2030 mm2000 mm60 mm142 mmACO hygienic gully 1571.4404416613
300 mm270 mm330 mm300 mm55 mm142 mmACO hygienic gully 1571.4301416614
300 mm270 mm330 mm300 mm55 mm142 mmACO hygienic gully 1571.4404416628
300 mm270 mm630 mm600 mm60 mm142 mmACO hygienic gully 1571.4301416615
300 mm270 mm630 mm600 mm60 mm142 mmACO hygienic gully 1571.4404416629
300 mm270 mm1030 mm1000 mm60 mm142 mmACO hygienic gully 1571.4301416616
300 mm270 mm1030 mm1000 mm60 mm142 mmACO hygienic gully 1571.4404416630
300 mm270 mm1530 mm1500 mm60 mm142 mmACO hygienic gully 1571.4301416617
300 mm270 mm1530 mm1500 mm60 mm142 mmACO hygienic gully 1571.4404416631
300 mm270 mm2030 mm2000 mm60 mm142 mmACO hygienic gully 1571.4301416618
300 mm270 mm2030 mm2000 mm60 mm142 mmACO hygienic gully 1571.4404416632
300 mm270 mm3030 mm3000 mm70 mm142 mmACO hygienic gully 1571.4301416619
300 mm270 mm3030 mm3000 mm70 mm142 mmACO hygienic gully 1571.4404416633
300 mm270 mm4030 mm4000 mm80 mm142 mmACO hygienic gully 1571.4301416620
300 mm270 mm4030 mm4000 mm80 mm142 mmACO hygienic gully 1571.4404416634
400 mm370 mm430 mm400 mm60 mm142 mmACO hygienic gully 1571.4301416642
400 mm370 mm430 mm400 mm60 mm142 mmACO hygienic gully 1571.4404416648
400 mm370 mm630 mm600 mm60 mm142 mmACO hygienic gully 1571.4301416643
400 mm370 mm630 mm600 mm60 mm142 mmACO hygienic gully 1571.4404416649
400 mm370 mm830 mm800 mm60 mm142 mmACO hygienic gully 1571.4301416644
400 mm370 mm830 mm800 mm60 mm142 mmACO hygienic gully 1571.4404416650
500 mm470 mm530 mm500 mm65 mm142 mmACO hygienic gully 1571.4301416654
500 mm470 mm530 mm500 mm65 mm142 mmACO hygienic gully 1571.4404416660
500 mm470 mm830 mm800 mm65 mm142 mmACO hygienic gully 1571.4301416655
500 mm470 mm830 mm800 mm65 mm142 mmACO hygienic gully 1571.4404416661
500 mm470 mm1030 mm1000 mm65 mm142 mmACO hygienic gully 1571.4301416656
500 mm470 mm1030 mm1000 mm65 mm142 mmACO hygienic gully 1571.4404416662
300 mm270 mm330 mm300 mm55 mm200 mmACO hygienic gully 2181.4301416621
300 mm270 mm330 mm300 mm55 mm200 mmACO hygienic gully 2181.4404416635
300 mm270 mm630 mm600 mm60 mm200 mmACO hygienic gully 2181.4301416622
300 mm270 mm630 mm600 mm60 mm200 mmACO hygienic gully 2181.4404416636
300 mm270 mm1030 mm1000 mm60 mm200 mmACO hygienic gully 2181.4301416623
300 mm270 mm1030 mm1000 mm60 mm200 mmACO hygienic gully 2181.4404416637
300 mm270 mm1530 mm1500 mm60 mm200 mmACO hygienic gully 2181.4301416624
300 mm270 mm1530 mm1500 mm60 mm200 mmACO hygienic gully 2181.4404416638
300 mm270 mm2030 mm2000 mm60 mm200 mmACO hygienic gully 2181.4301416625
300 mm270 mm2030 mm2000 mm60 mm200 mmACO hygienic gully 2181.4404416639
300 mm270 mm3030 mm3000 mm70 mm200 mmACO hygienic gully 2181.4301416626
300 mm270 mm3030 mm3000 mm70 mm200 mmACO hygienic gully 2181.4404416640
300 mm270 mm4030 mm4000 mm80 mm200 mmACO hygienic gully 2181.4301416627
300 mm270 mm4030 mm4000 mm80 mm200 mmACO hygienic gully 2181.4404416641
400 mm370 mm430 mm400 mm60 mm200 mmACO hygienic gully 2181.4301416645
400 mm370 mm430 mm400 mm60 mm200 mmACO hygienic gully 2181.4404416651
400 mm370 mm630 mm600 mm60 mm200 mmACO hygienic gully 2181.4301416646
400 mm370 mm630 mm600 mm60 mm200 mmACO hygienic gully 2181.4404416652
400 mm370 mm830 mm800 mm60 mm200 mmACO hygienic gully 2181.4301416647
400 mm370 mm830 mm800 mm60 mm200 mmACO hygienic gully 2181.4404416653
500 mm470 mm530 mm500 mm65 mm200 mmACO hygienic gully 2181.4301416657
500 mm470 mm530 mm500 mm65 mm200 mmACO hygienic gully 2181.4404416663
500 mm470 mm830 mm800 mm65 mm200 mmACO hygienic gully 2181.4301416658
500 mm470 mm830 mm800 mm65 mm200 mmACO hygienic gully 2181.4404416664
500 mm470 mm1030 mm1000 mm65 mm200 mmACO hygienic gully 2181.4301416659
500 mm470 mm1030 mm1000 mm65 mm200 mmACO hygienic gully 2181.4404416665
600 mm570 mm630 mm600 mm70 mm200 mmACO hygienic gully 2181.4301416666
600 mm570 mm630 mm600 mm70 mm200 mmACO hygienic gully 2181.4404416669
600 mm570 mm930 mm900 mm70 mm200 mmACO hygienic gully 2181.4301416667
600 mm570 mm930 mm900 mm70 mm200 mmACO hygienic gully 2181.4404416670
600 mm570 mm1230 mm1200 mm70 mm200 mmACO hygienic gully 2181.4301416668
600 mm570 mm1230 mm1200 mm70 mm200 mmACO hygienic gully 2181.4404416671
800 mm770 mm830 mm800 mm80 mm200 mmACO hygienic gully 2181.4301416672
800 mm770 mm830 mm800 mm80 mm200 mmACO hygienic gully 2181.4404416673

EasyFix stabilizing set

Suitable for

ACO box channel - Wo = 200 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

EasyFix stabilizing set

Suitable for

ACO box channel - Wo = 300 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

EasyFix stabilizing set

Suitable for

ACO box channel - Wo = 400 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

EasyFix stabilizing set

Suitable for

ACO box channel - Wo = 500 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

EasyFix stabilizing set

Suitable for

ACO box channel - Wo = 600 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

EasyFix stabilizing set

Suitable for

ACO box channel - Wo = 800 mm

Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO gully 142 - Telescopic
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
    • Outlet øD [mm]: 125
    • Direction of gully outlet: vertical, horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,4 litre capacity
  • Material grade 1.4404 (316L)

Silt basket

Suitable for
  • ACO gully 142 - Fixed height
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: welded with ACO hygienic gully 142
    • Direction of gully outlet: vertical, horizontal
Description
  • Stainless steel
  • 0,3 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO gully 142 - Fixed height
    • Vertical or horizontal
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 200
    • Outlet øD [mm]: 142
    • Direction of gully outlet: horizontal
    • Width Wo [mm]: 200
    • Outlet øD [mm]: welded with ACO hygienic gully 142
    • Direction of gully outlet: vertical, horizontal
Description
  • Stainless steel
  • 0,3 litre capacity
  • Material grade 1.4404 (316L)

Silt basket

Suitable for
  • ACO gully 157 - vertical
    • Fixed height or elescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,6 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO gully 157 - vertical
    • Fixed height or elescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: vertical
Description
  • Stainless steel
  • 0,6 litre capacity
  • Material grade 1.4404 (316L)

Silt basket

Suitable for
  • ACO gully 142 and 157 - horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: horizontal
Description
  • Stainless steel
  • 0,3 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO gully 142 and 157 - horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
    • Direction of gully outlet: horizontal
Description
  • Stainless steel
  • 0,3 litre capacity
  • Material grade 1.4404 (316L)

Silt basket

Suitable for
  • ACO hygienic gully 218 - Vertical
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
    • Direction of gully outlet: vertical
Description

Stainless steel

  • 1,4 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO hygienic gully 218 - Vertical
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
    • Direction of gully outlet: vertical
Description

Stainless steel

  • 1,4 litre capacity
  • Material grade 1.4404 (316L)

Silt basket

Suitable for
  • ACO hygienic gully 218 - Horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
    • Direction of gully outlet: horizontal
Description

Stainless steel

  • 0,7 litre capacity
  • Material grade 1.4301 (304)

Silt basket

Suitable for
  • ACO hygienic gully 218 - Horizontal
    • Fixed height or Telescopic
  • ACO hygenic box channel
    • Channel dimension
    • Width Wo [mm]: 300, 400, 500, 600, 800
    • Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
    • Direction of gully outlet: horizontal
Description

Stainless steel

  • 0,7 litre capacity
  • Material grade 1.4404 (316L)
