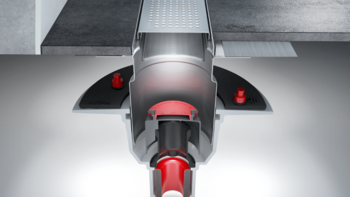

ACO ShowerDrain Public 110


Product benefits

  • Building material class A1
  • Tested and practical fire protection solutions (German approval AbZ. Z-19.17-2144)
    • For Fit-in installation - minimum ceiling thickness: 100 mm
  • abG: Z-19.53-2419
  • Sound insulation tested to EN 4109/VDI 4100:2012
    • Noise level: LAFmax ≤ 22 dB(A)

Product information

  • Cast iron, material EN-GJL-200
  • Tested to EN 1253-1
  • Surface:
    • Epoxidized white (easy-to-clean coating)
  • Connection to all standard sealing systems
  • Pipe connection SML according to: EN 877
  • Core drill: Ø 160 mm

Fire protection

Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887

Nominal width: DN 50

Socket inclinationFlange designRecess (LxB)Flow rateWeightItem

number
DownloadsRemember
[mm][l/s][kg]
Image90°Location flange200 x 1701.03.75149.60.20
Image90°Adhesive bonding flange360 x 1801.07.45150.60.20
Image90°Mechanical clamping flange320 x 1801.08.35151.60.20
Image1,5°Location flange360 x 1701.04.75149.80.20
Image1,5°Adhesive bonding flange360 x 1801.08.35150.80.20
Image1,5°Mechanical clamping flange360 x 1801.08.95151.90.20

Nominal width: DN 70

Socket inclinationFlange designRecess (LxB)Flow rateWeightItem

number
DownloadsRemember
[mm][l/s][kg]
Image90°Location flange200 x 1702.03.95169.60.20
Image90°Adhesive bonding flange360 x 1802.07.75170.60.20
Image90°Mechanical clamping flange320 x 1802.08.65171.60.20
Image1,5°Location flange360 x 1701.64.75169.70.20
Image1,5°Adhesive bonding flange360 x 1801.68.35170.80.20
Image1,5°Mechanical clamping flange360 x 1801.68.95171.90.20

Nominal width: DN 100

Socket inclinationFlange designRecess (LxB)Flow rateWeightItem

number
DownloadsRemember
[mm][l/s][kg]
Image90°Location flange200 x 1702.04.55569.60.20
Image90°Adhesive bonding flange360 x 1802.08.35570.60.20
Image90°Mechanical clamping flange320 x 1802.09.25571.60.20
Image1,5°Location flange360 x 1701.65.25569.70.20
Image1,5°Adhesive bonding flange360 x 1801.68.85570.80.20
Image1,5°Mechanical clamping flange360 x 1801.69.45571.90.20
Socket inclinationNominal widthRecess (LxB)Flow rateWeightItem

number
  • Coated in white epoxy
Image90°DN 50Location flange200 x 170 mm1.0 l/sWithout lateral inlet3.7 kg5149.60.20
Image90°DN 50Adhesive bonding flange360 x 180 mm1.0 l/sWithout lateral inlet7.4 kg5150.60.20
Image90°DN 50Mechanical clamping flange320 x 180 mm1.0 l/sWithout lateral inlet8.3 kg5151.60.20
Image1,5°DN 50Location flange360 x 170 mm1.0 l/sWithout lateral inlet4.7 kg5149.80.20
Image1,5°DN 50Adhesive bonding flange360 x 180 mm1.0 l/sWithout lateral inlet8.3 kg5150.80.20
Image1,5°DN 50Mechanical clamping flange360 x 180 mm1.0 l/sWithout lateral inlet8.9 kg5151.90.20
Image90°DN 70Location flange200 x 170 mm2.0 l/sWithout lateral inlet3.9 kg5169.60.20
Image90°DN 70Adhesive bonding flange360 x 180 mm2.0 l/sWithout lateral inlet7.7 kg5170.60.20
Image90°DN 70Mechanical clamping flange320 x 180 mm2.0 l/sWithout lateral inlet8.6 kg5171.60.20
Image1,5°DN 70Location flange360 x 170 mm1.6 l/sWithout lateral inlet4.7 kg5169.70.20
Image1,5°DN 70Adhesive bonding flange360 x 180 mm1.6 l/sWithout lateral inlet8.3 kg5170.80.20
Image1,5°DN 70Mechanical clamping flange360 x 180 mm1.6 l/sWithout lateral inlet8.9 kg5171.90.20
Image90°DN 100Location flange200 x 170 mm2.0 l/sWithout lateral inlet4.5 kg5569.60.20
Image90°DN 100Adhesive bonding flange360 x 180 mm2.0 l/sWithout lateral inlet8.3 kg5570.60.20
Image90°DN 100Mechanical clamping flange320 x 180 mm2.0 l/sWithout lateral inlet9.2 kg5571.60.20
Image1,5°DN 100Location flange360 x 170 mm1.6 l/sWithout lateral inlet5.2 kg5569.70.20
Image1,5°DN 100Adhesive bonding flange360 x 180 mm1.6 l/sWithout lateral inlet8.8 kg5570.80.20
Image1,5°DN 100Mechanical clamping flange360 x 180 mm1.6 l/sWith lateral inlet9.4 kg5571.90.20

Odour trap

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Consisting of:
    • Bell and pneumatic pipe
  • Weight: 0.2 kg

Odour and smoke stop

Suitable for
  • Foul air trap
  • Fire protection sets
Description
  • Made of rubber
  • Only use with foul air trap or fire protection set
  • For ACO Passavant floor gully: Flow reduction to 0.3 l/s
  • Weight: 0.1 kg

Fire protection set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 50
Description
  • Fire and smoke blocker for subsequent fire protection equipment of gully bodies
  • Consisting of
    • Odour seal with heat shield
    • Fire protection cartridge
  • German approval: AbZ. Z‑19.17‑2144
  • Weight: 0.4 kg

Fire protection set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 70
Description
  • Fire and smoke blocker for subsequent fire protection equipment of gully bodies
  • Consisting of
    • Odour seal with heat shield
    • Fire protection cartridge
  • German approval: AbZ. Z‑19.17‑2144
  • Weight: 0.4 kg

Fire protection set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 100
Description
  • Fire and smoke blocker for subsequent fire protection equipment of gully bodies
  • Consisting of
    • Odour seal with heat shield
    • Fire protection cartridge
  • German approval: AbZ. Z‑19.17‑2144
  • Weight: 0.5 kg

Fit-In installation set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 50
Description
  • Non-combustible
    • Building material class A1
  • For mortar-free installation in core drills: Ø 160 mm
  • Fit-in dimensions
    • Diameter: 159 mm
    • Height: 149 mm
  • German approval:
    • AbZ. Z‑19.17‑2144
    • aBG: Z-19.53-2419
  • Weight: 1.2 kg

Fit-In installation set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 70
Description
  • Non-combustible
    • Building material class A1
  • For mortar-free installation in core drills: Ø 160 mm
  • Fit-in dimensions
    • Diameter: 159 mm
    • Height: 149 mm
  • German approval:
    • AbZ. Z‑19.17‑2144
    • aBG: Z-19.53-2419
  • Weight: 1.2 kg

Fit-In installation set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 100
Description
  • Non-combustible
    • Building material class A1
  • For mortar-free installation in core drills: Ø 160 mm
  • Fit-in dimensions
    • Diameter: 159 mm
    • Height: 149 mm
  • German approval:
    • AbZ. Z‑19.17‑2144
    • aBG: Z-19.53-2419
  • Weight: 1 kg

Sealing ring

Suitable for
  • All Passavant top sections
    • DN 50 – DN 100
Description
  • As a seal between the top section and body
  • Ring colour: black
  • Weight: 0.1 kg
