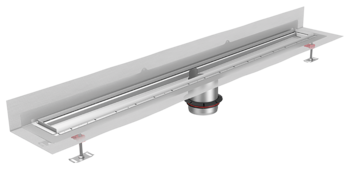

Channel body ACO ShowerDrain Public 110, with vertical wall flange, installation height: 60 – 135 mm (top of screed)

Stainless steel, surface pickle passivated
Tested according to to EN 1253‑1
Product class: A (EN 1253‑1)
Load class: K3 (EN 1253‑1)
Installation: modular system in combination with separate gully body
Height-adjustability: 30 mm - 140 mm, with respect to selected gully body
Visible width: 110 mm
Channel width inside: 107 mm
Frame for tiles:
- Height: 15 mm
- With integrated diffusion vents for secondary drainage
Flange design: flange is part of the channel (one piece), factory-bonded membrane with 60 mm overlapping
Scope of delivery channel body: feet for height-adjustability, combination ring for stainless steel gully ACO Variant-CR 142

Please note: Customiszed design up to 5,000 mm on request

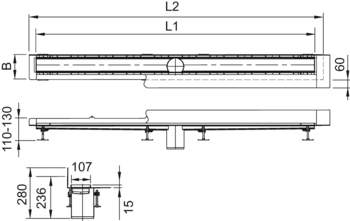

Dimensions			Number of gullys	Item number
L1	L2	B	Number of gullys
[mm]	[mm]	[mm]	[piece]
1500	1600	179	1	9011.70.16
2000	2100	179	1	9011.70.21
2500	2600	179	1	9011.70.26
3000	3100	179	1	9011.70.31
