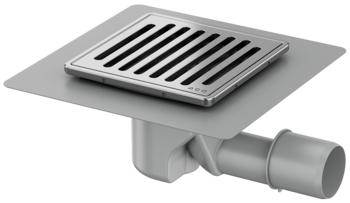

Complet Bath gullies MG

Product benefits

  • Fulfils the requirements of EN 1253-1
  • Minimum installation height
  • Flange for connecting the composite seal
  • Optimum pipe cleaning access
  • Complete system

Product information

  • Material:
    • Plastic (Gully)
    • Stainless steel (Frame und Grating)
  • Load class: K3
  • Flow rate:
    • 0.5 l/s with 20 mm build-up (EN 1253-1)
  • Foul air trap: one-piece with removable submersible pipe
  • Suitable for: Tile thickness 6 mm
  • Mounting: ready for installation
  • Flange: with surrounding sealing flange 50 mm
  • Outlet socket: suitable for all push-fit pipe socket systems

Socket inclination: 90°

FrameGratingDescriptionItem

number
DownloadsRemember
[mm][mm]
  • Stainless steel
  • 105 x 105
  • Slot grating
  • Stainless steel
  • 95 x 95
  • Placed loosely
  • Flow rate: 0.5 l/s
  • Water trap depth: 50 mm
2259.50.10
  • Stainless steel
  • 150 x 150
  • Slot grating
  • Stainless steel
  • 140 x 140
  • Placed loosely
  • Flow rate: 0.5 l/s
  • Water trap depth: 50 mm
2259.50.15

Socket inclination: 1,5°

FrameGratingDescriptionItem

number
DownloadsRemember
[mm][mm]
  • Stainless steel
  • 105 x 105
  • Slot grating
  • Stainless steel
  • 95 x 95
  • Placed loosely
  • Installed height: 52 mm
  • Flow rate: 0.5 l/s
  • Water trap depth: 25 mm
2245.25.10
  • Stainless steel
  • 150 x 150
  • Slot grating
  • Stainless steel
  • 140 x 140
  • Placed loosely
  • Installed height: 51 mm
  • Flow rate: 0.5 l/s
  • Water trap depth: 25 mm
2245.25.15
  • Stainless steel
  • 105 x 105
  • Slot grating
  • Stainless steel
  • 95 x 95
  • Placed loosely
  • Installed height: 76 mm
  • Flow rate: 0.5 l/s
  • Water trap depth: 30 mm
2245.30.10
  • Stainless steel
  • 150 x 150
  • Slot grating
  • Stainless steel
  • 140 x 140
  • Placed loosely
  • Installed height: 76 mm
  • Flow rate: 0.5 l/s
  • Water trap depth: 30 mm
2245.30.15
  • Stainless steel
  • 105 x 105
  • Slot grating
  • Stainless steel
  • 95 x 95
  • Placed loosely
  • Installed height: 96 mm
  • Flow rate: 0.5 l/s
  • Water trap depth: 50 mm
2245.50.10
  • Stainless steel
  • 150 x 150
  • Slot grating
  • Stainless steel
  • 140 x 140
  • Placed loosely
  • Installed height: 96 mm
  • Flow rate: 0.5 l/s
  • Water trap depth: 50 mm
2245.50.15
FrameGratingDescriptionItem

number
Socket inclination: 90°
ImageStainless steel105 x 105 mmSlot gratingStainless steel95 x 95 mmPlaced loosely
  • Flow rate: 0.5 l/s
  • Water trap depth: 50 mm
2259.50.10
ImageStainless steel150 x 150 mmSlot gratingStainless steel140 x 140 mmPlaced loosely
  • Flow rate: 0.5 l/s
  • Water trap depth: 50 mm
2259.50.15
Socket inclination: 1,5°
