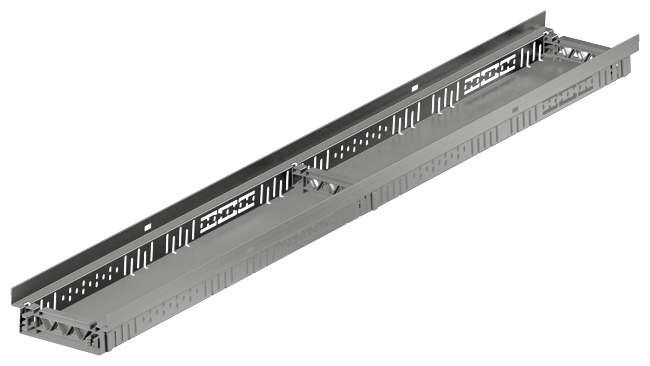

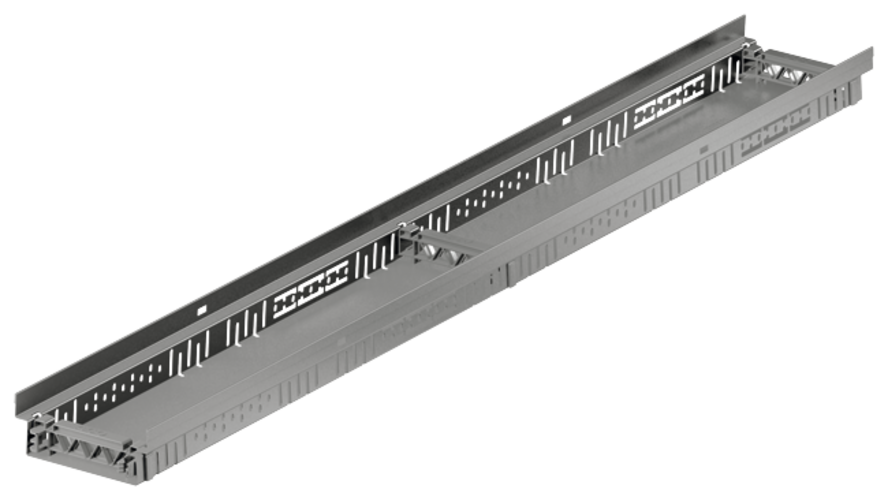

Channel body with fixed overall height

Description	Dimensions			Weight	Item number
	Length	Width	Height	Weight
	[mm]	[mm]	[mm]	[kg]
Channel element	2000	129	21	2.70	3002748
	1500	129	21	2.30	3002749
	1000	129	21	3.00	3002750
	500	129	21	2.60	3002751
	2000	157	21	2.70	3002753
	1500	157	21	2.40	3002754
	1000	157	21	2.10	3002755
	500	157	21	2.70	3002756
	2000	200	21	3.20	3002758
	1500	200	21	2.50	3002759
	1000	200	21	1.60	3002760
	500	200	21	0.80	3002761
	2000	129	30	3.00	3009011
	1000	129	30	1.48	3009012
	500	129	30	0.74	3009013
	2000	157	30	3.40	3009015
	1000	157	30	1.70	3009016
	500	157	30	0.83	3009017
	2000	100	50	3.30	320702
	1000	100	50	1.40	320703
	500	100	50	0.80	320704
	2000	157	50	3.90	320710
	1000	157	50	2.00	320711
	500	157	50	1.00	320712
	2000	129	50	3.60	320706
	1000	129	50	1.80	320707
	500	129	50	0.90	320708
	2000	200	50	4.80	320771
	1000	200	50	2.40	320772
	500	200	50	1.20	320773
	2000	250	50	5.60	320775
	1000	250	50	2.80	320776
	500	250	50	1.40	320777
	2000	100	80	4.09	3009019
	1000	100	80	2.05	3009030
	500	100	80	1.03	3009031
	2000	129	80	4.45	3009033
	1000	129	80	2.20	3009034
	500	129	80	1.15	3009035
	2000	157	80	5.02	3009037
	1000	157	80	2.52	3009038
	500	157	80	1.27	3009039
	2000	200	80	5.75	3009041
	1000	200	80	2.89	3009042
	500	200	80	1.46	3009043
	2000	250	80	6.58	3009045
	1000	250	80	3.31	3009046
	500	250	80	1.67	3009047
	2000	100	100	4.75	3009057
	1000	100	100	2.38	3009058
	500	100	100	1.19	3009059
	2000	129	100	5.23	3009061
	1000	129	100	2.62	3009062
	500	129	100	1.31	3009063
	2000	157	100	5.69	3009065
	1000	157	100	2.87	3009066
	500	157	100	1.43	3009067
	2000	200	100	6.41	3009069
	1000	200	100	3.22	3009070
	500	200	100	1.62	3009071
	2000	250	100	7.24	3009073
	1000	250	100	3.64	3009074
	500	250	100	1.83	3009075

Description	Dimensions			Weight	Item number
Description	Length	Width	Height	Weight	Item number
Channel element	2000 mm	129 mm	21 mm	2.70 kg	3002748
Channel element	1500 mm	129 mm	21 mm	2.30 kg	3002749
Channel element	1000 mm	129 mm	21 mm	3.00 kg	3002750
Channel element	500 mm	129 mm	21 mm	2.60 kg	3002751
Channel element	2000 mm	157 mm	21 mm	2.70 kg	3002753
Channel element	1500 mm	157 mm	21 mm	2.40 kg	3002754
Channel element	1000 mm	157 mm	21 mm	2.10 kg	3002755
Channel element	500 mm	157 mm	21 mm	2.70 kg	3002756
Channel element	2000 mm	200 mm	21 mm	3.20 kg	3002758
Channel element	1500 mm	200 mm	21 mm	2.50 kg	3002759
Channel element	1000 mm	200 mm	21 mm	1.60 kg	3002760
Channel element	500 mm	200 mm	21 mm	0.80 kg	3002761
Channel element	2000 mm	129 mm	30 mm	3.00 kg	3009011
Channel element	1000 mm	129 mm	30 mm	1.48 kg	3009012
Channel element	500 mm	129 mm	30 mm	0.74 kg	3009013
Channel element	2000 mm	157 mm	30 mm	3.40 kg	3009015
Channel element	1000 mm	157 mm	30 mm	1.70 kg	3009016
Channel element	500 mm	157 mm	30 mm	0.83 kg	3009017
Channel element	2000 mm	100 mm	50 mm	3.30 kg	320702
Channel element	1000 mm	100 mm	50 mm	1.40 kg	320703
Channel element	500 mm	100 mm	50 mm	0.80 kg	320704
Channel element	2000 mm	157 mm	50 mm	3.90 kg	320710
Channel element	1000 mm	157 mm	50 mm	2.00 kg	320711
Channel element	500 mm	157 mm	50 mm	1.00 kg	320712
Channel element	2000 mm	129 mm	50 mm	3.60 kg	320706
Channel element	1000 mm	129 mm	50 mm	1.80 kg	320707
Channel element	500 mm	129 mm	50 mm	0.90 kg	320708
Channel element	2000 mm	200 mm	50 mm	4.80 kg	320771
Channel element	1000 mm	200 mm	50 mm	2.40 kg	320772
Channel element	500 mm	200 mm	50 mm	1.20 kg	320773
Channel element	2000 mm	250 mm	50 mm	5.60 kg	320775
Channel element	1000 mm	250 mm	50 mm	2.80 kg	320776
Channel element	500 mm	250 mm	50 mm	1.40 kg	320777
Channel element	2000 mm	100 mm	80 mm	4.09 kg	3009019
Channel element	1000 mm	100 mm	80 mm	2.05 kg	3009030
Channel element	500 mm	100 mm	80 mm	1.03 kg	3009031
Channel element	2000 mm	129 mm	80 mm	4.45 kg	3009033
Channel element	1000 mm	129 mm	80 mm	2.20 kg	3009034
Channel element	500 mm	129 mm	80 mm	1.15 kg	3009035
Channel element	2000 mm	157 mm	80 mm	5.02 kg	3009037
Channel element	1000 mm	157 mm	80 mm	2.52 kg	3009038
Channel element	500 mm	157 mm	80 mm	1.27 kg	3009039
Channel element	2000 mm	200 mm	80 mm	5.75 kg	3009041
Channel element	1000 mm	200 mm	80 mm	2.89 kg	3009042
Channel element	500 mm	200 mm	80 mm	1.46 kg	3009043
Channel element	2000 mm	250 mm	80 mm	6.58 kg	3009045
Channel element	1000 mm	250 mm	80 mm	3.31 kg	3009046
Channel element	500 mm	250 mm	80 mm	1.67 kg	3009047
Channel element	2000 mm	100 mm	100 mm	4.75 kg	3009057
Channel element	1000 mm	100 mm	100 mm	2.38 kg	3009058
Channel element	500 mm	100 mm	100 mm	1.19 kg	3009059
Channel element	2000 mm	129 mm	100 mm	5.23 kg	3009061
Channel element	1000 mm	129 mm	100 mm	2.62 kg	3009062
Channel element	500 mm	129 mm	100 mm	1.31 kg	3009063
Channel element	2000 mm	157 mm	100 mm	5.69 kg	3009065
Channel element	1000 mm	157 mm	100 mm	2.87 kg	3009066
Channel element	500 mm	157 mm	100 mm	1.43 kg	3009067
Channel element	2000 mm	200 mm	100 mm	6.41 kg	3009069
Channel element	1000 mm	200 mm	100 mm	3.22 kg	3009070
Channel element	500 mm	200 mm	100 mm	1.62 kg	3009071
Channel element	2000 mm	250 mm	100 mm	7.24 kg	3009073
Channel element	1000 mm	250 mm	100 mm	3.64 kg	3009074
Channel element	500 mm	250 mm	100 mm	1.83 kg	3009075

{Abdeckroste Profiline 2.0 fixe Bauhöhe}

{Abdeckroste 100 / 130 / 155 mm - Stahl verzinkt}

3002778
