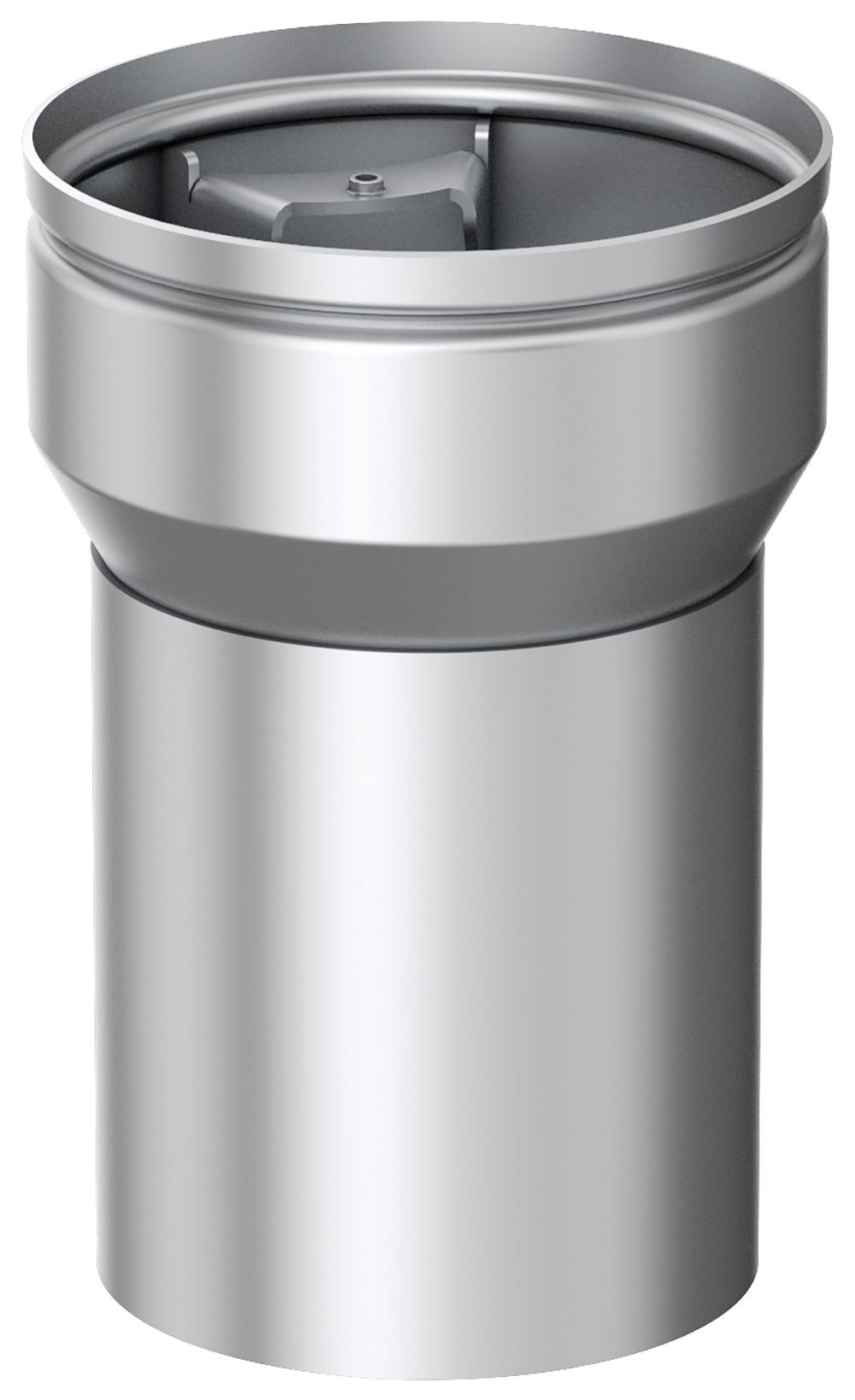

Gully body ACO direct balcony drain

Product benefits

  • Adjustable to local terrain thanks to modular approach

Product information

  • Gully bodies DN 50 – DN 100
  • Stainless steel, material grade 304
  • For locally built concrete or ready-made concrete slabs
    • Balcony slab thicknesses: 120, 140, 160, 180 or 200 mm
  • For ring strainer/strainer lid
    • Strainer height not adjustable
Nominal widthFlow rate as required by DINDimensionsWeightItem

number
DownloadsRemember
d1d2d3d4l1l2
[l/s][mm][mm][mm][mm][mm][mm][kg]
ImageDN 505.45398102731031201.050174.52.63
1231401.150174.52.66
1431601.260174.52.69
1631801.360174.52.75
1832001.470174.52.78
2032201.470174.96.44
ImageDN 707.5731171181021021201.150174.52.64
1221401.320174.52.67
1421601.490174.52.70
1621801.660174.52.76
1822001.830174.52.79
2022201.830174.58.52
2222401.830174.58.54
DN 1009.01021401411331021201.80174.52.65
1221402.080174.52.68
1421602.360174.52.71
1621802.650174.52.77
1822002.930174.52.80
2022202.930174.58.53
Nominal widthFlow rate as required by DINWeightItem

number
ImageDN 505.4 l/s1.05 kg0174.52.63
ImageDN 505.4 l/s1.15 kg0174.52.66
ImageDN 505.4 l/s1.26 kg0174.52.69
ImageDN 505.4 l/s1.36 kg0174.52.75
ImageDN 505.4 l/s1.47 kg0174.52.78
ImageDN 505.4 l/s1.47 kg0174.96.44
ImageDN 707.5 l/s1.15 kg0174.52.64
ImageDN 707.5 l/s1.32 kg0174.52.67
ImageDN 707.5 l/s1.49 kg0174.52.70
ImageDN 707.5 l/s1.66 kg0174.52.76
ImageDN 707.5 l/s1.83 kg0174.52.79
ImageDN 707.5 l/s1.83 kg0174.58.52
ImageDN 707.5 l/s1.83 kg0174.58.54
ImageDN 1009.0 l/s1.8 kg0174.52.65
ImageDN 1009.0 l/s2.08 kg0174.52.68
ImageDN 1009.0 l/s2.36 kg0174.52.71
ImageDN 1009.0 l/s2.65 kg0174.52.77
ImageDN 1009.0 l/s2.93 kg0174.52.80
ImageDN 1009.0 l/s2.93 kg0174.58.53

Casing bell

Suitable for
  • Balcony and terrace gullies
    • DN 50/DN 70 with fixed flange
    • DN 70/DN 100 with fixed flange
Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 50
  • Weight: 0.1 kg

Casing bell

Suitable for
  • Balcony and terrace gullies
    • DN 50/DN 70 with fixed flange
    • DN 70/DN 100 with fixed flange
Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 70
  • Weight: 0.2 kg

Casing bell

Suitable for
  • Balcony and terrace gullies
    • DN 50/DN 70 with fixed flange
    • DN 70/DN 100 with fixed flange
Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 100
  • Weight: 0.2 kg

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 50
  • h = 9 mm
  • d = 98 mm
  • Weight: 0.1 kg

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 70
  • h = 7 mm
  • d = 118 mm
  • Weight: 0.1 kg

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 100
  • h = 8 mm
  • d = 141 mm
  • Weight: 0.2 kg

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully bodies
Description
  • Made of stainless steel
  • DN 50
  • h = 9 mm
  • d = 98 mm
  • d1 = 55 mm
  • Weight: 0.1 kg

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully bodies
Description
  • Made of stainless steel
  • DN 70
  • h = 12 mm
  • d = 118 mm
  • d1 = 76 mm
  • Weight: 0.1 kg

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully bodies
Description
  • Made of stainless steel
  • DN 100
  • h = 10 mm
  • d = 141 mm
  • d1 = 103 mm
  • Weight: 0.1 kg
