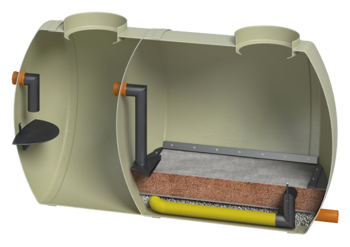

Stormclean G-H

Product benefits

  • Simultaneous water cleaning via the removal of mineral oils, heavy metals and suspended solids
  • Technical filter already pre-assembled! Just plug it in.
  • 3in1 solution – sludge trap, technical filter, sampling unit in one tank
  • Tailored solutions available to meet individual project requirements
  • Optimal accessibility for maintenance, cleaning and disposal
  • As lightweight as plastic, as strong as concrete
  • Filter product life of up to four years (filter life may vary depending on the type of pollution being filtered)
    • Replaceable for the new material, available with specific item number

Product information

  • Inner parts made of PEHD
  • With integrated connection for sampling
  • Sludge trap included
DescriptionMax. initial water flow*Surface filter chamberInlet/outlet

DN/OD
Drained surfacePositionContentsGeotextile total surfaceEAN CodeWeightItem

number
DownloadsRemember
Sludge trapVolume filter chamberTotal capacityFilter volumeVolume gravel
[l/s][m²][m²][l][m³][l][l][l][m²][kg]
TF 1000 G-H3243001000Horizontal42504.688831.20.87.88590830025608274012945.F1
TF 1300 G-H415.23001300Horizontal50346.2112401.51.19.98590830025622344912946.F1
DescriptionMax. initial water flow*Surface filter chamberInlet/outlet

DN/OD
Drained surfacePositionContentsGeotextile total surfaceEAN CodeWeightItem

number
Sludge trapVolume filter chamberTotal capacityFilter volumeVolume gravel
TF 1000 G-H32 l/s4 m²3001000 m²Horizontal4250 l4.6 m³8883 l1.2 l0.8 l7.8 m²85908300256082740 kg12945.F1
TF 1300 G-H41 l/s5.2 m²3001300 m²Horizontal5034 l6.2 m³11240 l1.5 l1.1 l9.9 m²85908300256223449 kg12946.F1
Item

number
DimensionsRequired top sections
H1H2D2T tankTotal length of tankTotal heightInlet/outlet difference
[mm][mm][mm][mm][mm][mm][mm][piece]
12945.F113404018005805060192013002 x DN 600
12946.F113404018005806110192013002 x DN 600

Filter set TF 1000 G-H

Description
  • Weight: 714 kg

Filter set TF 1300 G-H

Description
  • Weight: 920 kg
