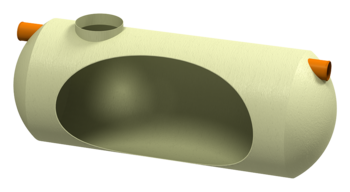

Sludge Trap G-H

Product benefits

  • Simple to install, space efficient
  • Alarm device - optional accessories
  • Compatible combination options with Oleopator G without an integrated sludge trap

Product information

  • Horizontal tank made of glass reinforced plastic - no heavy machinery required, resistant material
  • Suitable top sections
  • Pipe connection using suitable push sockets or pipe connectors (no welded sockets)
Nominal sizeInlet/outlet

DN/OD
ContentsWeightItem

number
DownloadsRemember
Sludge trapTotal capacity
[l][l][kg]
200 NS2003000303423812800.01
6500655937312801.01
250 NS250100001000149012802.01
150001500373412803.01
315 NS315200002015585912804.01
3000030260147012805.01
400 NS4004000040008191812806.01
5000050001208612807.01
7000071461289612808.01
Nominal sizeInlet/outlet

DN/OD
ContentsWeightItem

number
Sludge trapTotal capacity
200 NS2003000 l3034 l238 kg12800.01
200 NS2006500 l6559 l373 kg12801.01
250 NS25010000 l10001 l490 kg12802.01
250 NS25015000 l15003 l734 kg12803.01
315 NS31520000 l20155 l859 kg12804.01
315 NS31530000 l30260 l1470 kg12805.01
400 NS40040000 l40008 l1918 kg12806.01
400 NS40050000 l50001 l2086 kg12807.01
400 NS40070000 l71461 l2896 kg12808.01
Item

number
Nominal sizeDimensionsACO Belts*
H1H2D2T tankLength
[mm][mm][mm][mm][mm][piece]
12800.01200 NS1030980122029032802
12801.01200 NS16301580182029031452
12802.01250 NS15801530182034047053
12803.01250 NS18801830212034050654
12804.01315 NS18151765212040568655
12805.01315 NS21402090240036077127
12806.01400 NS2030198024004701060210
12807.01400 NS2030198024004701346512
12808.01400 NS2230218025904601570020
