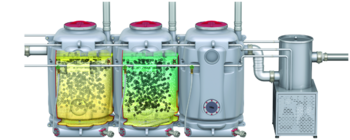

Waste water treatment plant ACO Biojet PE


Product benefits

  • Reduction of non-volatile lipophilic substances to approx. 100 mg/l after biological treatment
  • The biochemical processes stabilise the pH-value in the neutral range
  • Thanks to the biochemical processes the BOD5And COD levels in the wastewater are reduced
  • No residues which need to be disposed of finally
  • Low cost of maintenance and management
  • Lifetime costs consist only of energy to drive the pumping technology and the active ingredients
  • Compact tank construction
  • Minimal space required
  • Economic step increases in nominal size
  • No problem in inserting parts into the plant thanks to use of building blocks approach
  • The strains of micro-organisms used are ecologically safe for health and the environment

Product information

  • Biological wastewater treatment downstream of grease separators as per EN 1825/DIN 4040-100 for NS (2/4/5,5/7/8,5/10/15/20/25)
  • Energy-saving and user-friendly automatic operation
  • Free-standing construction in frost-free areas
  • Bioreactor, container made of polyethylene (LLD-PE)
  • Sediment unit, container and housing in stainless steel, material grade 316
  • Sealed odour-free installation
  • Segmented/modular construction (extensible)
  • Biological reactor and sedimentation unit
    • With low maintenance and low-cost plant technology
    • With fluidized bed technology and specially adapted micro-organisms (Group 1 non-pathogenic strains)
    • With automatic recycling of sediments from the sedimentation unit into the plant
    • With automatic discharge of cleaned wastewater into sewerage system
    • With standard IP 55 controls with automatic program sequence and collection of error messages for central technical supervision (building control systems)
    • With scour outlet DN 50 for maintenance.
  • System ACO Passavant
    • Intake and outlet DN 150
    • Connection port or nozzle for connection pipe with external diameter: 160 mm (adaptor to DN 100 supplied unfitted in NS 2/4)
    • Separate plant air extraction, connection nozzle with external diameter 110 mm
    • Electrical connector: 400 V/50 Hz/1.5 kW
    • Required air volume: 3 times space volume per hour

Infobox

Note: Container as segment construction on request.

Operation side: Right-hand

TypeNumber of bioreactorsContentsWeightItem

number
DownloadsRemember
BioreactorsOverallEmptyFull
[l][l][kg][kg]
2182090024011403502.00.00
421640172034020603504.00.00
5,532460254044029803505.00.00
743280336054039003507.00.00
8,554100418064048203508.00.00
1064920500074057403510.00.00
15865606720108078003515.00.00
201082008360128096403520.00.00
25129840100001480114803525.00.00

Operation side: Left-hand

TypeNumber of bioreactorsContentsWeightItem

number
DownloadsRemember
BioreactorsOverallEmptyFull
[l][l][kg][kg]
2182090024011403502.00.10
421640172034020603504.00.10
5,532460254044029803505.00.10
743280336054039003507.00.10
8,554100418064048203508.00.10
1064920500074057403510.00.10
15865606720108078003515.00.10
201082008360128096403520.00.10
25129840100001480114803525.00.10
TypeNumber of bioreactorsContentsWeightOperation sideItem

number
BioreactorsOverallEmptyFull
21820 l900 l240 kg1140 kgRight-hand3502.00.00
421640 l1720 l340 kg2060 kgRight-hand3504.00.00
5,532460 l2540 l440 kg2980 kgRight-hand3505.00.00
743280 l3360 l540 kg3900 kgRight-hand3507.00.00
8,554100 l4180 l640 kg4820 kgRight-hand3508.00.00
1064920 l5000 l740 kg5740 kgRight-hand3510.00.00
1586560 l6720 l1080 kg7800 kgRight-hand3515.00.00
20108200 l8360 l1280 kg9640 kgRight-hand3520.00.00
25129840 l10000 l1480 kg11480 kgRight-hand3525.00.00
21820 l900 l240 kg1140 kgLeft-hand3502.00.10
421640 l1720 l340 kg2060 kgLeft-hand3504.00.10
5,532460 l2540 l440 kg2980 kgLeft-hand3505.00.10
743280 l3360 l540 kg3900 kgLeft-hand3507.00.10
8,554100 l4180 l640 kg4820 kgLeft-hand3508.00.10
1064920 l5000 l740 kg5740 kgLeft-hand3510.00.10
1586560 l6720 l1080 kg7800 kgLeft-hand3515.00.10
20108200 l8360 l1280 kg9640 kgLeft-hand3520.00.10
25129840 l10000 l1480 kg11480 kgLeft-hand3525.00.10
Scale drawing
TypeNumber of bioreactorsDimensions
AB
[mm][mm]
2121001100
4230501100
5,5340501100
7450501100
8,5560501100
10670501100
15868002500
201078002500
251288002500
