Light-Oil separator Oleolift P

Product benefits

  • Durable submersible pumps with metal impeller for high operational reliability and long product lifetime
  • All nominal sizes tested by independent test institute (LGA) - test report
  • Optimum accessibility guaranteed for maintenance, cleaning and disposal thanks to removable cage component
  • Separator with float switch of plastic, tared for light liquids with density until 0.90 g/cm3
  • Coalescence unit and float can be removed for cleaning without having to empty the separator

Product information

  • Easy to clean coalescence unit - durable wire mesh material
  • With one or two practical plastic covers with lockers for all sections
  • With ventilation connection DN 100
  • Ready for additional installation of cable bushings (e.g. alarm units, etc.)
  • Alarm device - optional accessories
  • Durable submersible pumps with metal impeller secures high operational reliability and long lifetime
  • Light oil separator according to DIN EN 858, Class I
  • For freestanding installation in frost free rooms
  • Manufactured of welded polyethylene in round or oval design
  • With supporting cage and coalescence unit
  • Inner parts made of PEHD
  • Inlet for respective pipe connection
  • Outlet for clamping coupling
  • Available in Mono or Duo pumps installations
Nominal sizeVariantPumping head **ShapeContentsMax. thickness of oil layerWeightItem

number
DownloadsRemember
Sludge trapOil storageTotal volume
[l][l][l][mm][kg]
NS 3Mono1-5Oval30060385311101418601.P106
5-10Oval30060385311103418601.P111
10-20Oval30060385311112418601.P120
1-5Oval60060695311136418602.P106
5-10Oval60060695311138418602.P111
10-20Oval60060695311148418602.P120
NS 6Mono1-5Oval600129977401258418604.P106
5-10Oval600129977401266418604.P111
10-20Oval600129977401271418604.P120
1-5Oval12002081600401288418605.P106
5-10Oval12002081600401296418605.P111
10-20Oval12002081600401301418605.P120
NS 10Mono1-5Oval10002731490253291418607.P106
5-10Oval10002731490253291418607.P111
10-20Oval10002731490253296418607.P120
NS 3Duo1-5Oval30060385311122418601.P206
5-10Oval30060385311126418601.P211
10-20Oval30060385311145418601.P220
1-5Oval60060695311156418602.P206
5-10Oval60060695311160418602.P211
10-20Oval60060695311180418602.P220
NS 6Duo1-5Oval600129977401280418604.P206
5-10Oval600129977401296418604.P211
10-20Oval600129977401306418604.P220
1-5Oval12002081600401310418605.P206
5-10Oval12002081600401326418605.P211
10-20Oval12002081600401336418605.P220
NS 10Duo1-5Oval10002731490253326418607.P206
5-10Oval10002731490253326418607.P211
10-20Oval10002731490253336418607.P220
Nominal sizeVariantPumping head **ShapeContentsMax. thickness of oil layerWeightItem

number
Sludge trapOil storageTotal volume
NS 3Mono1-5Oval300 l60 l385 l311 mm101 kg418601.P106
NS 3Mono5-10Oval300 l60 l385 l311 mm103 kg418601.P111
NS 3Mono10-20Oval300 l60 l385 l311 mm112 kg418601.P120
NS 3Mono1-5Oval600 l60 l695 l311 mm136 kg418602.P106
NS 3Mono5-10Oval600 l60 l695 l311 mm138 kg418602.P111
NS 3Mono10-20Oval600 l60 l695 l311 mm148 kg418602.P120
NS 6Mono1-5Oval600 l129 l977 l401 mm258 kg418604.P106
NS 6Mono5-10Oval600 l129 l977 l401 mm266 kg418604.P111
NS 6Mono10-20Oval600 l129 l977 l401 mm271 kg418604.P120
NS 6Mono1-5Oval1200 l208 l1600 l401 mm288 kg418605.P106
NS 6Mono5-10Oval1200 l208 l1600 l401 mm296 kg418605.P111
NS 6Mono10-20Oval1200 l208 l1600 l401 mm301 kg418605.P120
NS 10Mono1-5Oval1000 l273 l1490 l253 mm291 kg418607.P106
NS 10Mono5-10Oval1000 l273 l1490 l253 mm291 kg418607.P111
NS 10Mono10-20Oval1000 l273 l1490 l253 mm296 kg418607.P120
NS 3Duo1-5Oval300 l60 l385 l311 mm122 kg418601.P206
NS 3Duo5-10Oval300 l60 l385 l311 mm126 kg418601.P211
NS 3Duo10-20Oval300 l60 l385 l311 mm145 kg418601.P220
NS 3Duo1-5Oval600 l60 l695 l311 mm156 kg418602.P206
NS 3Duo5-10Oval600 l60 l695 l311 mm160 kg418602.P211
NS 3Duo10-20Oval600 l60 l695 l311 mm180 kg418602.P220
NS 6Duo1-5Oval600 l129 l977 l401 mm280 kg418604.P206
NS 6Duo5-10Oval600 l129 l977 l401 mm296 kg418604.P211
NS 6Duo10-20Oval600 l129 l977 l401 mm306 kg418604.P220
NS 6Duo1-5Oval1200 l208 l1600 l401 mm310 kg418605.P206
NS 6Duo5-10Oval1200 l208 l1600 l401 mm326 kg418605.P211
NS 6Duo10-20Oval1200 l208 l1600 l401 mm336 kg418605.P220
NS 10Duo1-5Oval1000 l273 l1490 l253 mm326 kg418607.P206
NS 10Duo5-10Oval1000 l273 l1490 l253 mm326 kg418607.P211
NS 10Duo10-20Oval1000 l273 l1490 l253 mm336 kg418607.P220
Item

number
Nominal sizeDimensions
H1H2D1D2L1L2BPnU
[mm][mm][mm][mm][mm][mm][mm][kW][A][V]
418601.P106NS 3845137810050161318435800.42.8230
418601.P111NS 3845137810050161318435801.16.4 / 4.8400 *
418601.P120NS 3845137810050161318435801.53.5400
418602.P106NS 3845138210050233125615800.42.8230
418602.P111NS 3845138210050233125615801.16.4 / 4.8400 *
418602.P120NS 3845138210050233125615801.53.5400
418604.P106NS 6980162016050245526867701.53.5400
418604.P111NS 6980162016050245526867701.53.5400
418604.P120NS 6980162016050245526867702.23.5400
418605.P106NS 61082169416050272029518701.53.5400
418605.P111NS 61082169416050272029518701.53.5400
418605.P120NS 61082169416050272029518702.23.5400
418607.P106NS 109921689160802610283210801.55400
418607.P111NS 109921689160502610283210802.25400
418607.P120NS 109921689160802610283210803.77.9400
418601.P206NS 3845137810050161318435800.85.6230
418601.P211NS 3845137810050161318435802.212.8400
418601.P220NS 38451378100501613184358037400
418602.P206NS 3845138210050233125615800.85.6230
418602.P211NS 3845138210050233125615802.212.8230
418602.P220NS 38451382100502331256158037400
418604.P206NS 69801620160502455268677037400
418604.P211NS 69801620160502455268677037400
418604.P220NS 6980162016050245526867704.47400
418605.P206NS 610821694160502720295187037400
418605.P211NS 610821694160502720295187037400
418605.P220NS 61082169416050272029518704.47400
418607.P206NS 10992168916080261028321080310400
418607.P211NS 109921689160502610283210804.410400
418607.P220NS 109921689160802610283210807.415.8400

Installation device for alarm device

Suitable for

Mandatory equipment for all alarm devices

Description

Alarm device installation kit

Sampling equipment

Description

For grease separators/light liquid separators for below ground installation. Sampling equipment consisting of manual pump and suction coupling, connection coupling, connecting hose and suction coupling and bolt connection

  • Suitable for inlet invert maximum T = 3,000 mm

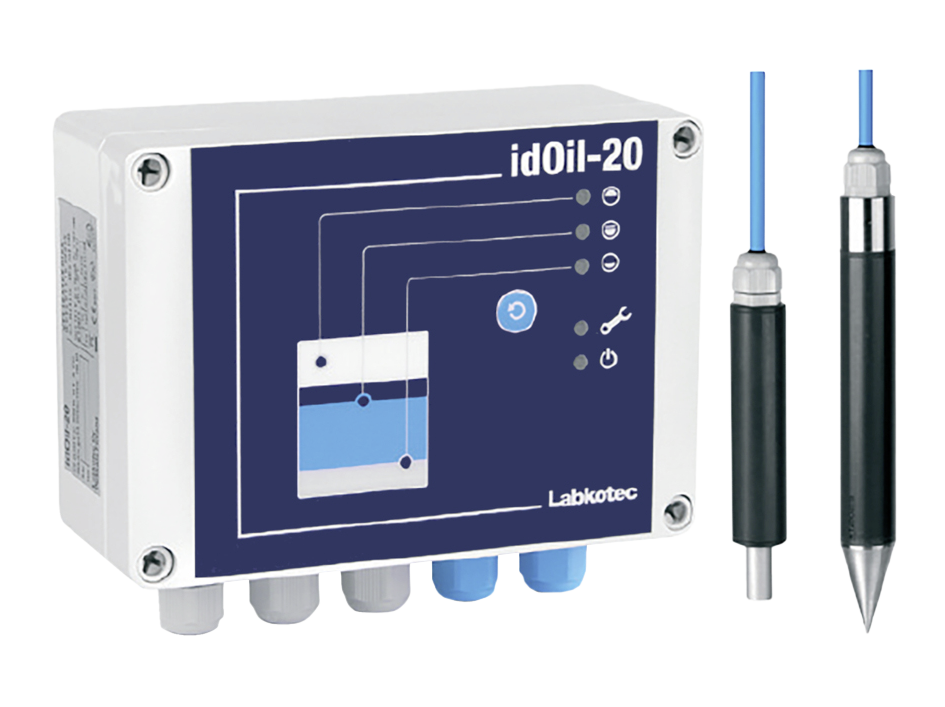

Alarm device

Suitable for

Alarm device only for oil accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m

Alarm device

Suitable for

Alarm device only for water accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m

Alarm device

Suitable for

Alarm device for oil and water accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m

Alarm device

Suitable for

Alarm device for oil, water and sludge accumulation

Description

GSM or WiFi solution available on demand

For light oil separators P series, enables combined or separated control of oil, sludge and liquid level of electrical connection:

  • 230 V/50 - 60 Hz
  • IP 67
  • Cable connection: 5 m
