Oleopator-P-SD

Product benefits

  • Shaft buoyancy-proof up to the top of the manhole cover without on-site concrete works on extension systems with load class D 400
  • Proven stability: min. 50 years according to German Standard DIN 19901

Product information

  • According to EN 858
  • Type test report
    • 7310434-01 (NS 3)
    • 7310434-02 (NS 6)
    • 7310434-03 (NS 8)
    • 7310434-03 (NS 10)
  • Inlet and outlet connection according to outside diameter D depending on Nominal Size of separator
  • Inlet and outlet parts of polyethylene
  • With integrated removable coalescing filter
  • Automatic closure device with float switch, density of float switch: 0.9 g/cm³
  • Disposal and cleaning via cover
  • With integrally formed raising tube for varying inlet heights
  • Optionally upgradable with concrete supporting rings 60, 80 and 100 mm up to inlet invert Tmax
Nominal sizeNominal widthContentsWeightItem

number
DownloadsRemember
Sludge trapOil storageOverall
[l][l][l][kg]
NS 33 / 300 NSDN 100381240731683903.40.00
3 / 600 NSDN 1006612401009793913.40.00
3 / 900 NSDN 1009272401272843923.40.00
NS 66 / 600 NSDN 1507022351036863906.40.00
6 / 1200 NSDN 150118023515291013916.40.00
NS 88 / 800 NSDN 1507802601246963908.40.00
NS 1010 / 1000 NSDN 150105726015291053910.40.00
Nominal sizeContentsWeightItem

number
Sludge trapOil storageOverall
NS 3381 l240 l731 l68.00 kg3903.40.00
NS 3661 l240 l1009 l79.00 kg3913.40.00
NS 3927 l240 l1272 l84.00 kg3923.40.00
NS 6702 l235 l1036 l86.00 kg3906.40.00
NS 61180 l235 l1529 l101.00 kg3916.40.00
NS 8780 l260 l1246 l96.00 kg3908.40.00
NS 101057 l260 l1529 l105.00 kg3910.40.00
Nominal sizeInlet/outlet as per DIN EN 877Dimensions
DH1H2T minT fix
[mm][mm][mm][mm][mm]
NS 3DN 1001109669461370970
123612161370970
145014301370970
NS 6DN 150160126112411340950
174317231260950
NS 8DN 150160147314531340950
NS 10DN 150160172317231260950

Alarm system Securat OL

Suitable for
  • Light liquid separators for below ground installation
    • Oleopator P/ Oleopass P
Description
  • Weight: 3 kg

Sampling device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Light oil separator for underground installation
  • Stach seperator FapuMax-P for underground installation
Description
  • Consisting of:
    • Sampling pot with suction coupling
    • Connection hose with suction coupling and connection gland
    • Hose length: 3 m
  • Weight: 3.4 kg

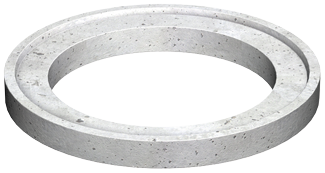

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg

Sealing sleeves DN 100 NBR

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • As insulation between air connection on tank and air line.
  • Weight: 0.1 kg
