Oleopator-P

Product benefits

  • Shaft buoyancy-proof up to the top of the manhole cover without on-site concrete works on extension systems with load class D 400
  • Proven stability: min. 50 years according to German Standard DIN 19901

Product information

  • Light liquid separator according to EN 858 and German Standard DIN 1999-100
  • For installation below ground
  • Draining and cleaning via manhole cover
  • Connections for inlet and outlet according to German Standards DIN 19534 and DIN 19537
  • ACO Passavant system
    • Matching top sections with load class A 15, B 125, D 400
    • Top sections
  • Matching sludge trap
Nominal sizeNominal widthContentsWeightItem

number
DownloadsRemember
Sludge trapOil storageOverallOverall
[l][l][l][kg]
NS 3DN 100450240775673903.80.00
670240995833913.80.00
9502401280843923.80.00
NS 6DN 150660235970913906.80.00
121023515251013916.80.00
NS 8DN 1508202601250943908.80.00
NS 10DN 150108026016151053910.80.00
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapOil storageOverallOverall
ImageNS 3DN 100450 l240 l775 l67 kg3903.80.00
ImageNS 3DN 100670 l240 l995 l83 kg3913.80.00
ImageNS 3DN 100950 l240 l1280 l84 kg3923.80.00
ImageNS 6DN 150660 l235 l970 l91 kg3906.80.00
ImageNS 6DN 1501210 l235 l1525 l101 kg3916.80.00
ImageNS 8DN 150820 l260 l1250 l94 kg3908.80.00
ImageNS 10DN 1501080 l260 l1615 l105 kg3910.80.00
Scale drawing
Nominal sizeInlet/outlet as per DIN EN 877Sludge trapDimensions
DHH1H2
[l][mm][mm][mm][mm]
NS 3DN 100450110137710201000
NS 3DN 100670110159412301210
NS 3DN 100950110186515001480
NS 6DN 150660160159412101190
NS 6DN 1501210160212917401720
NS 8DN 150820160186514801460
NS 10DN 1501080160212917401720

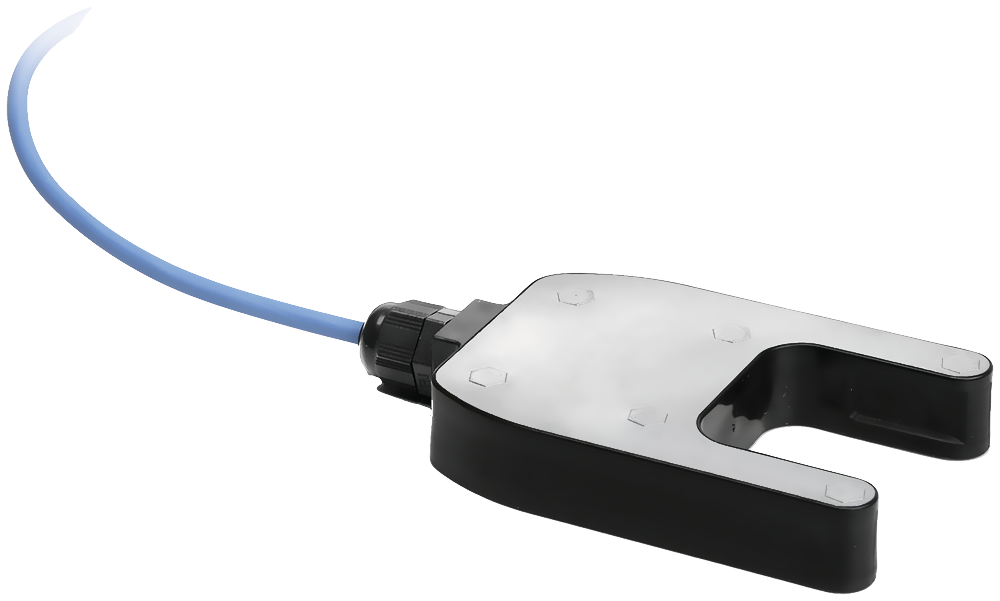

Sludge level sensor

Description
  • Weight: 0.9 kg

Alarm system Securat OL

Suitable for
  • Light liquid separators for below ground installation
    • Oleopator P/ Oleopass P
Description
  • Weight: 3 kg

Sampling device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Light oil separator for underground installation
  • Stach seperator FapuMax-P for underground installation
Description
  • Consisting of:
    • Sampling pot with suction coupling
    • Connection hose with suction coupling and connection gland
    • Hose length: 3 m
  • Weight: 3.4 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg

Sealing sleeves DN 100 NBR

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • As insulation between air connection on tank and air line.
  • Weight: 0.1 kg
