Oleopator G-H NS100+

Product benefits

  • All nominal sizes extrapolated from tested products which are tested by independent test institute (LGA) - test report
  • New coalescence basket designed for DN 600 covers.
  • Coalescence baskets - easy to clean from the ground surface.
  • Integrated sludge trap
  • Coalescence PU foam split into three segments - easy maintenance and service
  • Optimum accessibility guaranteed for maintenance, cleaning and disposal thanks to removable cage component
  • Coalescence insert and float can be removed for cleaning without having to empty the separator
  • Integrated sludge trap (except NS300)
  • Sampling system can be integrated
  • Alarm device - optional accessories
  • Service access between sludge trap and oil separator

Product information

  • Complies with standards EN 858 class I - nominal size is extrapolated from the tested oleopators
  • Horizontal tank made of glass reinforced plastic - no heavy machinery required, resistant material
  • With coalescence insert (filter) - assembly of multiple coalescence baskets
  • Inner parts made of PEHD
  • Suitable top sections DN600
  • Pipe connection using suitable push sockets or pipe connectors (no welded sockets)
Nominal sizeInlet/outlet

DN/OD
ContentsWeightItem

number
DownloadsRemember
Sludge trapOil storageTotal capacity
[l][l][l][kg]
150 NS40015000513734158235012895.01
200 NS50020000711847149320012896.01
250 NS50025000843361106330012897.01
300 NS5001354546482340012898.01
Nominal sizeInlet/outlet

DN/OD
ContentsWeightItem

number
Sludge trapOil storageTotal capacity
150 NS40015000 l5137 l34158 l2350 kg12895.01
200 NS50020000 l7118 l47149 l3200 kg12896.01
250 NS50025000 l8433 l61106 l3300 kg12897.01
300 NS5000 l13545 l46482 l3400 kg12898.01
Item

number
Nominal sizeDimensionsACO Belts*ACO Belts**Required top sectionsQuantity of coalescence unitsQty. of closing devices
H1H2D2T tankTotal heightLength
[mm][mm][mm][mm][mm][mm][piece][piece][piece][piece][piece]
12895.01150 NS193018902400570250094004103 x 6002 x coalesce basket2
12896.01200 NS1830179024006702500128204144 x 6003 x coalesce basket3
12897.01250 NS2015197524006752690136004195 x 6004 x coalesce basket4
12898.01300 NS1810179024006902500131804146 x 6005 x coalesce basket5

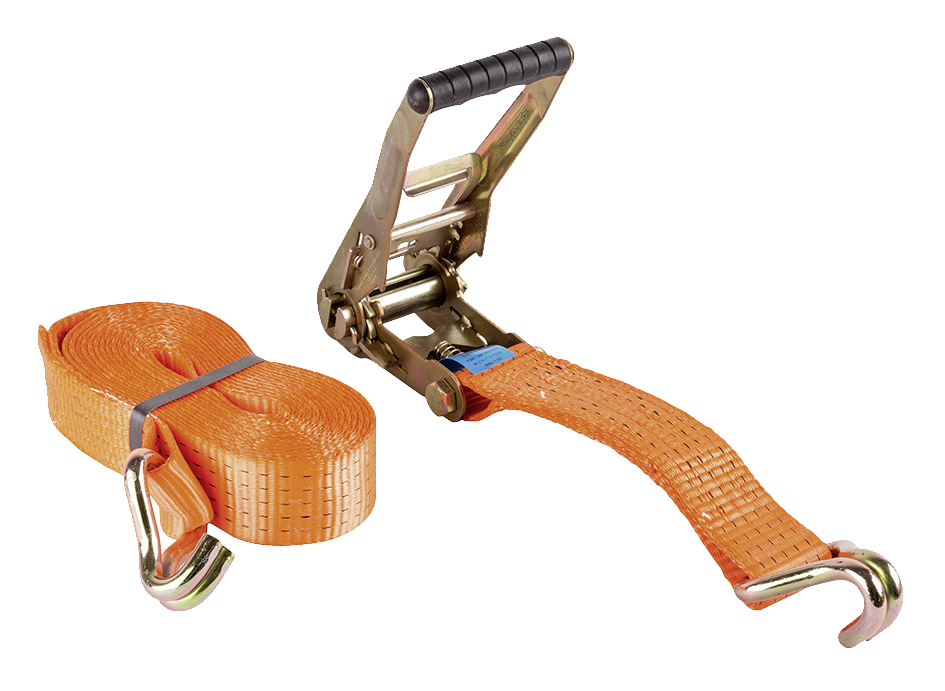

ACO Belt 75 SS

Suitable for

7,5 m

Description
  • Load strap: Polyester
  • Tensioner and hooks: Stainless steel
  • Package includes 2 pcs of anchors T10/150SS
  • Usage for tanks dia ≤ 2.57 m

ACO Belt 120 SS

Suitable for

12 m

Description
  • Load strap: Polyester
  • Tensioner and hooks: Stainless steel
  • Package includes 2 pcs of anchors T10/150SS
  • Usage for tanks dia ≤ 2.57 m

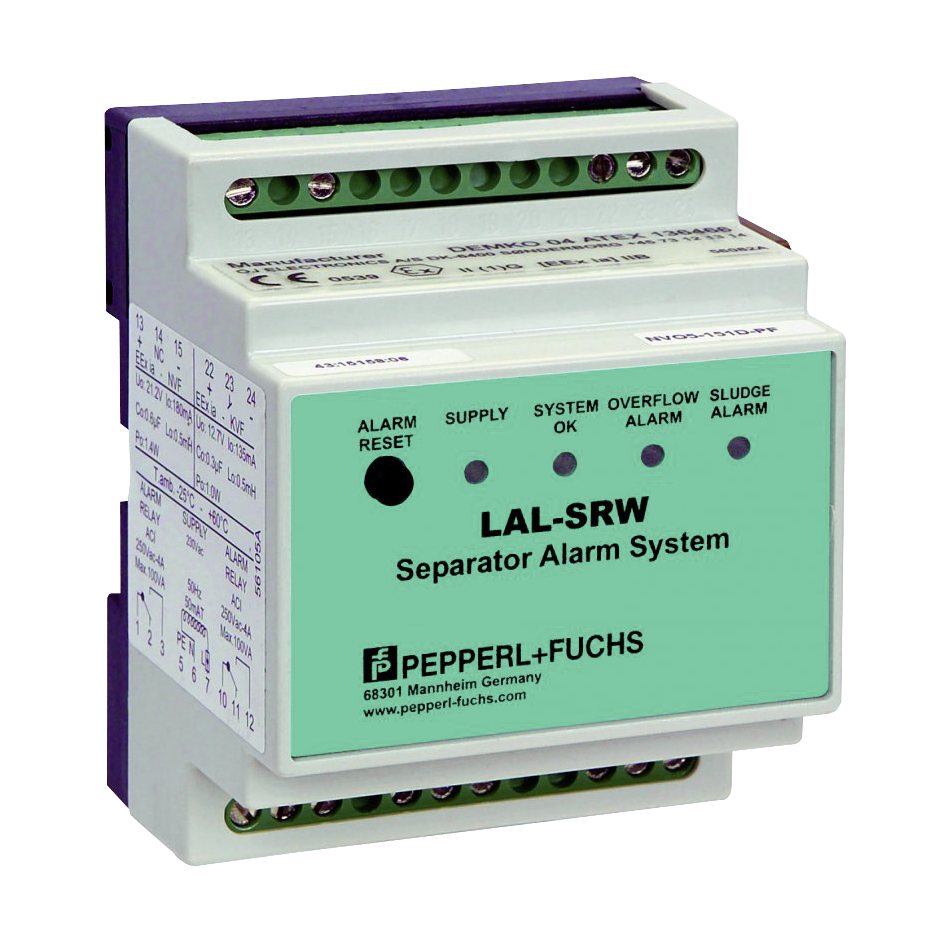

Alarm device (OB)

Suitable for

Oil layer thickness and overflow

Description
  • Monitoring device, 2x cable connections, oil level sensor, overflow sensor
  • 3 kg

Alarm device (O)

Suitable for

Oil layer thickness

Description
  • Monitoring device, cable connection, oil level sensor
  • 1,1 kg

Alarm device (B)

Suitable for

Overflow

Description
  • Monitoring device, cable connection, overflow sensor
  • 1,1 kg

Alarm device (OB) + casing

Suitable for

Oil layer thickness and overflow, includes alarm device and casing

Description
  • Monitoring device, 2x cable connections, oil level sensor, overflow sensor
  • 3 kg
  • Casing included

Control unit GA 1 + one sensor GA - SG1

Suitable for

GA-1 is an alarm device specially designed for grease separators. They indicate when it is time to empty the grease separator and thus prevents harmful grease emissions to the sewer system.

Description
  • Dimensions: 125 mm x 75 mm x 35 mm (L x H x D
  • Material: Polycarbonate
  • Enclosure: IP65
  • Operation temperature: -30 °C...+50 °C
    • Supply voltage: 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption: GA-1: 5 VA, GA-2: 5 VA
    • Sensors: 1 or 2 GA-SG1 sensors
    • Relay outputs: Potential-free relay output 250 V, 5 A
    • 1 pcs for GA-1 Operational delay 10 sec. Relay de-energize
    • 2 pcs for GA-2 at trigger point.
    • Electrical safety: IEC/EN 61010-1, Class II , CAT II
    • EMC: IEC/EN 61000-6-3 (Emission)
    • IEC/EN 61000-6-1 (Immunity)

Control unit GA 2 + two senzors GA - SG1

Suitable for

GA-2 is an alarm device for monitoring the thickness of the grease layer accumulating in a grease interceptor and the blocking of the interceptor. The system consists of a GA-2 control unit, two GA-SG1 sensors and a cable joint.

Description
  • Dimensions 125 mm x 75 mm x 35 mm (L x H x D)
  • Package 1,2 kg (control unit + 2 sensors + cable joint)
  • Enclosure IP 65, material polycarbonate
  • Cable glands adjustment range 6-10 mm
  • Operation temperature -30 ºC...+50 ºC
    • Supply voltage 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption 5 VA
    • Sensors 2 pcs GA-SG1 sensors
    • Relay output 2 pcs potential-free relay outputs
    • 250 V, 5 A Operational delay 10 sec.
    • Relay de-energize at trigger point.
    • Electrical safety IEC/EN 61010-1, Class II , CAT II
    • EMC Emission IEC/EN 61000-6-3
    • Immunity IEC/EN 61000-6-1

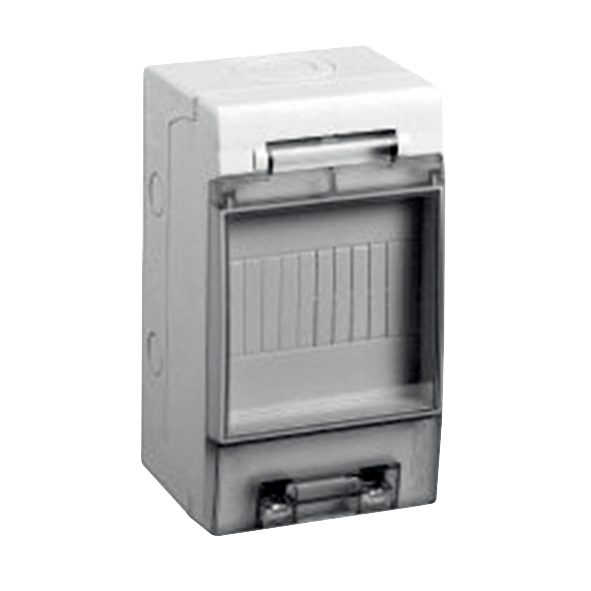

Alarm Device Casing

Suitable for

For installation the monitoring device outside an explosion hazard area

Description

Casing for alarm device (OB, O, B)
