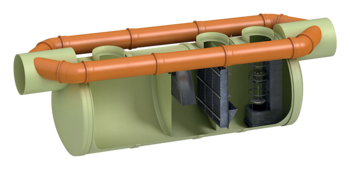

Oleopator-Bypass G-H - Integrated

Product benefits

  • All nominal sizes tested by independent test institute (LGA) - test report
  • Optimum accessibility guaranteed for maintenance, cleaning and disposal thanks to removable cage component
  • Coalescence insert and float can be removed for cleaning without having to empty the separator
  • Integrated sludge trap
  • Easy to clean coalescence unit
  • Sampling system can be integrated
  • Alarm device - optional accessories
  • Option for drainage of large areas in combination with traditional separator technology

Product information

  • Complies with standards EN 858 class I
  • Horizontal tank made of glass reinforced plastic - no heavy machinery required, resistant material
  • With coalescence insert (filter)
  • With bypass channel and integrated bypass control
  • Inner parts made of PEHD
  • Suitable top sections
  • Pipe connection using suitable push sockets or pipe connectors (no welded sockets)
Nominal sizeMax. flow NSBInlet/outlet

DN/OD
Bypass DN/ODContentsWeightItem

number
DownloadsRemember
Sludge trapOil storageTotal capacity
[l/s][l][l][l][kg]
40 NS20060040040002295915280012869.01
40080040040002295915289012870.01
50 NS25060040050002295978082012871.01
50080040050002295978092012872.01
65 NS3258004006500365618812170012873.01
6508004006500365618812183012874.01
80 NS40010005008000365620294186012875.01
80010005008000365620294198012876.01
100 NS500100050010000365622817200012877.01
1000100050010000365622817210012878.01
150 NS1500100050015000513734058250012582.01
200 NS1500100050020000711847138340012583.01
Nominal sizeMax. flow NSBInlet/outlet

DN/OD
Bypass DN/ODContentsWeightItem

number
Sludge trapOil storageTotal capacity
40 NS200 l/s6004004000 l2295 l9152 l800 kg12869.01
40 NS400 l/s8004004000 l2295 l9152 l890 kg12870.01
50 NS250 l/s6004005000 l2295 l9780 l820 kg12871.01
50 NS500 l/s8004005000 l2295 l9780 l920 kg12872.01
65 NS325 l/s8004006500 l3656 l18812 l1700 kg12873.01
65 NS650 l/s8004006500 l3656 l18812 l1830 kg12874.01
80 NS400 l/s10005008000 l3656 l20294 l1860 kg12875.01
80 NS800 l/s10005008000 l3656 l20294 l1980 kg12876.01
100 NS500 l/s100050010000 l3656 l22817 l2000 kg12877.01
100 NS1000 l/s100050010000 l3656 l22817 l2100 kg12878.01
150 NS1500 l/s100050015000 l5137 l34058 l2500 kg12582.01
200 NS1500 l/s100050020000 l7118 l47138 l3400 kg12583.01
Item

number
Nominal sizeDimensionsACO Belts*ACO Belts**Required top sectionsQuantity of coalescence unitsQty. of closing devices
H1H2D2T tankTotal heightLength
[mm][mm][mm][mm][mm][mm][piece][piece][piece][piece][piece]
12869.0140 NS19001800240060625252518 / 4266241 x 1 x coalesce basket1
12870.0140 NS19001800240060627252518 / 4266241 x 1 x coalesce basket1
12871.0150 NS19011801240060625252918 / 4781241 x 1 x coalesce basket1
12872.0150 NS19011801240064627252618 / 4781241 x 1 x coalesce basket1
12873.0165 NS17241624240079325265743 / 7753262 x 1 x 1 x coalesce wall1
12874.0165 NS17241624240079325535743 / 7753262 x 1 x 1 x coalesce wall1
12875.0180 NS17451645240081827776225 / 8253262 x 1 x 1 x coalesce wall1
12876.0180 NS17451645240081827776225 / 8253262 x 1 x 1 x coalesce wall1
12877.01100 NS17451645240082227757025 / 9053272 x 1 x coalesce wall1
12878.01100 NS17451645240082227737025 / 9053272 x 1 x coalesce wall1
12582.01150 NS1920182024006012920111784103 x 2 x coalesce basket2
12583.01200 NS1811171124007102811145984144 x 3 x coalesce basket3

ACO Belt 75 SS

Suitable for

7,5 m

Description
  • Load strap: Polyester
  • Tensioner and hooks: Stainless steel
  • Package includes 2 pcs of anchors T10/150SS
  • Usage for tanks dia ≤ 2.57 m

ACO Belt 120 SS

Suitable for

12 m

Description
  • Load strap: Polyester
  • Tensioner and hooks: Stainless steel
  • Package includes 2 pcs of anchors T10/150SS
  • Usage for tanks dia ≤ 2.57 m

Alarm device (OB)

Suitable for

Oil layer thickness and overflow

Description
  • Monitoring device, 2x cable connections, oil level sensor, overflow sensor
  • 3 kg

Alarm device (O)

Suitable for

Oil layer thickness

Description
  • Monitoring device, cable connection, oil level sensor
  • 1,1 kg

Alarm device (B)

Suitable for

Overflow

Description
  • Monitoring device, cable connection, overflow sensor
  • 1,1 kg

Alarm device (OB) + casing

Suitable for

Oil layer thickness and overflow, includes alarm device and casing

Description
  • Monitoring device, 2x cable connections, oil level sensor, overflow sensor
  • 3 kg
  • Casing included

Control unit GA 1 + one sensor GA - SG1

Suitable for

GA-1 is an alarm device specially designed for grease separators. They indicate when it is time to empty the grease separator and thus prevents harmful grease emissions to the sewer system.

Description
  • Dimensions: 125 mm x 75 mm x 35 mm (L x H x D
  • Material: Polycarbonate
  • Enclosure: IP65
  • Operation temperature: -30 °C...+50 °C
    • Supply voltage: 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption: GA-1: 5 VA, GA-2: 5 VA
    • Sensors: 1 or 2 GA-SG1 sensors
    • Relay outputs: Potential-free relay output 250 V, 5 A
    • 1 pcs for GA-1 Operational delay 10 sec. Relay de-energize
    • 2 pcs for GA-2 at trigger point.
    • Electrical safety: IEC/EN 61010-1, Class II , CAT II
    • EMC: IEC/EN 61000-6-3 (Emission)
    • IEC/EN 61000-6-1 (Immunity)

Control unit GA 2 + two senzors GA - SG1

Suitable for

GA-2 is an alarm device for monitoring the thickness of the grease layer accumulating in a grease interceptor and the blocking of the interceptor. The system consists of a GA-2 control unit, two GA-SG1 sensors and a cable joint.

Description
  • Dimensions 125 mm x 75 mm x 35 mm (L x H x D)
  • Package 1,2 kg (control unit + 2 sensors + cable joint)
  • Enclosure IP 65, material polycarbonate
  • Cable glands adjustment range 6-10 mm
  • Operation temperature -30 ºC...+50 ºC
    • Supply voltage 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption 5 VA
    • Sensors 2 pcs GA-SG1 sensors
    • Relay output 2 pcs potential-free relay outputs
    • 250 V, 5 A Operational delay 10 sec.
    • Relay de-energize at trigger point.
    • Electrical safety IEC/EN 61010-1, Class II , CAT II
    • EMC Emission IEC/EN 61000-6-3
    • Immunity IEC/EN 61000-6-1

Alarm Device Casing

Suitable for

For installation the monitoring device outside an explosion hazard area

Description

Casing for alarm device (OB, O, B)
