Light-Oil separator Coalisator-P


Product benefits

  • Optional direct suction for retrofitting
  • Critical inlet and outlet parts made of non-combustible material according to German Standard DIN 1999-100
  • Can be combined with the separately available sludge trap with 150 or 300 litre volumes

Product information

  • Light liquid separator Class I made of polyethylene
  • According to EN 858 and German Standard DIN 1999-100
  • With automatic closing
    • Float made of plastic
    • Tared for light liquid with a density up to 0.90 g/cm³
  • With supporting cage and coalescence insert with wire mesh
    • All parts removable
  • With height-adjustable top section
    • Can be shortened every 45 mm
  • Cover
    • Made of cast iron
    • Load class: B 125
  • Inlet and outlet fittings made of stainless steel, material grade 304
Scale drawing
DescriptionNominal capacityInlet/outlet as per DIN EN 877Dimensions
H1H2DL x WL1 x W1
[mm][mm][mm][mm][mm]
  • Inlet depth (T)
    • 510 – 965 mm
NS 1.5DN 100405385110750 x 650640 x 340
765745110750 x 650640 x 340
NS 3DN 100405385110750 x 650640 x 340

Securat idOil 20 alarm system

Suitable for
  • Coalisator P
Description
  • For combined or separate monitoring of different fill levels
  • Electrical connection
    • Voltage: 230 V
    • 50-60 Hz
    • IP 67
  • Cable length: 5 m
  • Weight: 3 kg

Cable set 20m

Suitable for
  • Alarm system light oil separator
    • Securat idOil 20
Description
  • External diameter: 5.0 mm
  • Blue
  • As a connecting cable
  • Weight: 0.1 kg

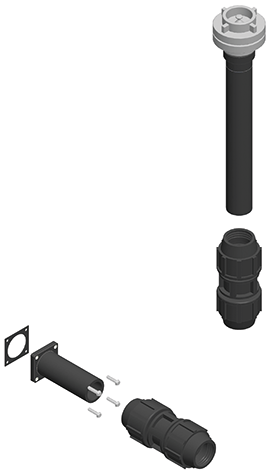

Adapter kit

Suitable for
  • Coalisator P
Description
  • For on-site suction line DN 65
  • Incl. Storz-B coupling
  • Incl. blank coupling
  • One adapter set per container is required
  • Weight: 3.9 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

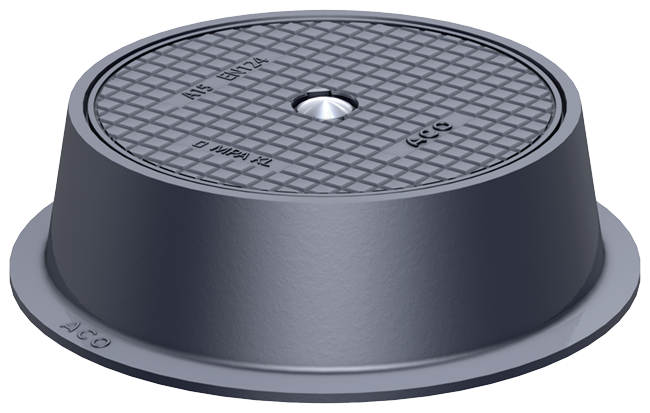

Road cap

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-D
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach separators FapuMax-P-DA for underground installation
  • Oil separators Coalisator-P
Description
  • Shaft cover tested to DIN EN 124/DIN 1229
  • Load class: A 15
  • Frame and cover made of cast iron
  • Diameter: 300 mm
  • Clear width: 250 mm
  • Weight: 9.8 kg

Sampling shaft DN 100

Suitable for
  • Coalisator P
Description
  • Plastic
  • Load class B125
  • Clear width: 450 mm
  • Inspection opening: 600 x 300 mm
  • Gradient: 153 mm
  • Inlet invert: 530 – 985 mm
  • Weight: 47.5 kg

Sampling shaft DN 100

Suitable for
  • Coalisator P
Description
  • Plastic
  • Load class B125
  • Clear width: 450 mm
  • Inspection opening: 600 x 300 mm
  • Gradient: 33 mm
  • Inlet invert: 660 – 1115 mm
  • Weight: 47.5 kg
