Grease separator LipuJet-S-RB basic model

Product benefits

  • Easy to transport and fit thanks delivery of individual parts
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Suction and emptying sump with drain plug socket 1½"
  • Odour-proof maintenance opening
    • Diameter: 300 mm for NS 1 – 4
    • Diameter: 500 mm for NS 7 – 20
Scale drawing
Item

number
Nominal capacityDimensions
L1L2L3H1H2H3H4DD1Z/Anzahl Segmente
[mm][mm][mm][mm][mm][mm][mm][mm][mm]
7502.32.00NS 21180120150975905120015201101000785/2
7504.32.00NS 4118012015012401170145017701101000785/2
7507.32.00NS 7180012015014301330178021001601500790/3
7510.32.00NS 10180012015016001500195022701601500790/3
7515.32.00NS 15205012015017551685212024402101750820/3
7520.32.00NS 20205012015019351885232026402101750820/3

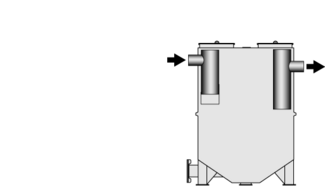

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

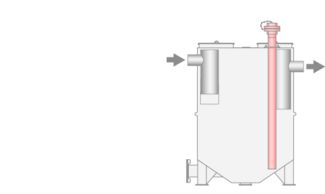

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
LipuJet-S-RD

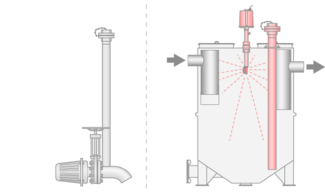

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • Optionally with disposal pump
  • No odour build-up
LipuJet-S-RM (without disposal pump)
LipuJet-S-RMP (with disposal pump)

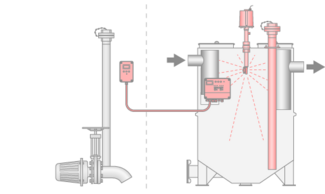

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-S-RA (without disposal pump)
LipuJet-S-RAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

Message system with GSM module

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli lifting plants
  • Muli-Max
  • Sinkamat-Z (underfloor) duo
  • Grease separators
  • Measuring device for grease layers
  • Wet refuse collection systems
  • Technical processing systems
Description
  • Does not require mains power
  • Visible and audible alarms
  • 6 digital & 2 analogue freely configurable inputs
  • 1 alarm output 12V
  • Incl. GSM- aerial (2,5m wire)
  • Relaying alarms to mobile phones by SMS
  • For mounting outside the ex-area
  • Housing: 155x180 x103 mm
  • Slot for standard SIM-card
  • Protection level: IP54 (with fitted IP44 antenna socket)
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Filling device

Suitable for
  • Grease separator LipuJet-S-OB/OD/RB/RD
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With ball valve R ¾"
  • Weight: 2.3 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Viewing window

Suitable for
  • Grease separator LipuJet-S-OB/OD/RB/RD
Description
  • Nominal width: DN 200
  • With screen wiper
  • Weight: 2.3 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.9 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 12.2 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 horizontal pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.1 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
  • Light oil separator Coalisator-R/-RD
    • NS 3
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 100 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 9.5 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
  • Light oil separator Coalisator-R/-RD
    • NS 6 – 10
Description
  • Stainless steel, material grade 316
  • Round shape
  • For installation in DN 150 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
  • Light oil separator Coalisator-E
    • NS 20
Description
  • Made from stainless steel, material grade 304
  • Round shape
  • For installation in DN 200 vertical pipes coming from grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 1 – 4
  • Starch separator FapuJet-S
    • NS 0.5 – 1
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 100 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 11 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 5.5 – 10
  • Starch separator FapuJet-S
    • NS 2
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 150 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 13.4 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-S/Lipator-S
    • NS 15 – 20
Description
  • Stainless steel, material grade 316
  • Round shape
  • Gradient drop: 70 mm
  • For installation in DN 200 vertical pipes going to grease separator
  • With EC connector and claw
  • Connections tested to DIN EN 877
  • Weight: 14.3 kg

PIPE connection set ND 100 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 1-4
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 100
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1000 mm
  • Weight: 5.2 kg

PIPE connection set ND 150 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 5.5-10
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 150
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1500 mm
  • Weight: 12.7 kg

PIPE connection set ND 200 for Grease Separators

Suitable for
  • Grease separator LipuJet for free-standing installation
    • NS 15-25
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 200
  • 2 x bends 45°
  • 1 x intermediate piece 500 mm
  • 1 x calm region 2000 mm
  • Weight: 25 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg

Service grease separator: commissioning

Suitable for
  • ACO grease separator for free-standing installation
Description

Commissioning includes the following services:

  • Arrival and removal including working hours, which do not exceed the scope of the commissioning
  • Installation check
  • Electrical testing
  • Mechanical testing
  • System parameterisation
  • Multiple trial runs
  • Operating personnel induction
  • Creation of a commissioning checklist

Upon conclusion of an original ACO maintenance contract, the costs of

commissioning will be offset with the first maintenance service!

Further information: ACO Service 036965/ 819-444

Service grease separator: maintenance

Suitable for
  • ACO grease separator for free-standing installation
    • One contract per grease separator
Description
  • Maintenance in accordance with the checklist based on EN 1825-2 when concluding a maintenance contract with ACO Building Drainage.
  • Separator systems should be maintained by an authorised qualified contractor
  • The maintenance interval should not be longer than 1 x year.

The maintenance service includes the following work:

  • Arrival and removal including working hours, which do not exceed the scope of the maintenance
  • Checking internal wall surfaces
  • Functional check on electrical equipment, if available
  • Checking the entire system with the creation of a test report and, if necessary, a repair offer

A disposal vehicle should be available at the time of maintenance.

Further information: ACO Service 036965/ 819-444

Service grease separator: General inspection

Suitable for
  • ACO grease separator for free-standing installation
Description

According to DIN 4040-100, separator systems must be checked before commissioning and then at regular intervals of a maximum of 5 years after full emptying.

Testing takes place according to EN 1825 / EN 1610.

Our report includes the exact description of the system with measurement, measurement graphics and image documentation, as well as suggestions for further procedures (defect elimination).

The following preparations must be made on-site before the general inspection:

  • Free access for all vehicles
  • Full installation of the system
  • Electrical connection 230V
  • The system must be emptied and clean at the time of testing
  • The possibility of quick water filling is required (supply of fresh water by the disposer or C-connection)
  • An assistant will be provided to us free-of-charge for the work
  • You shall provide climbing aids (ladders)
  • The contents of the separator must be disposed of on the day of the general inspection! Disposal is ordered by the customer, unless otherwise expressly agreed.
  • For the duration of the General Inspection, no inlet into the separator may take place for approx. 4-5 hours

Further information: ACO Service 036965/ 819-444

TOP
