Grease separator LipuJet-P-RD extension stage 1

Product benefits

  • Easy to transport and fit thanks delivery of individual parts
  • Empty directly without odour
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1½"
  • Odour-proof maintenance opening, diameter: 350 mm
Nominal sizeNominal widthContentsWeightItem

number
DownloadsRemember
Sludge trapGrease storeOverallEmptyFullHeaviest single component
[l][l][l][kg][kg][kg]
NS 2DN 100290120680123803483502.62.30
NS 4DN 1005001608901391029553504.62.30
NS 7DN 150830400212031024301123507.62.30
NS 10DN 1501150400245032127711163510.62.30
NS 15DN 2001950800361035839681343515.62.30
NS 20DN 2002440800407036044301343520.62.30
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFullHeaviest single component
ImageNS 2DN 100290 l120 l680 l123 kg803 kg48 kg3502.62.30
ImageNS 4DN 100500 l160 l890 l139 kg1029 kg55 kg3504.62.30
ImageNS 7DN 150830 l400 l2120 l310 kg2430 kg112 kg3507.62.30
ImageNS 10DN 1501150 l400 l2450 l321 kg2771 kg116 kg3510.62.30
ImageNS 15DN 2001950 l800 l3610 l358 kg3968 kg134 kg3515.62.30
ImageNS 20DN 2002440 l800 l4070 l360 kg4430 kg134 kg3520.62.30
Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4H5DD1Z/Anzahl Segmente
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3502.62.30NS 21255602009759051320137015201101150795/2
3504.62.30NS 4125560200124011701580163017801101150820/2
3507.62.30NS 7182060200143013301880193020801601660785/3
3510.62.30NS 10182060200160015002050210022501601660785/3
3515.62.30NS 15213060200176516652200225024002001920880/3
3520.62.30NS 20213060200195518552400245026002001920880/3

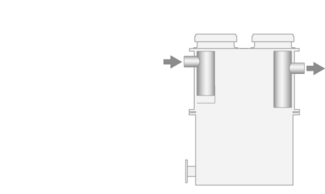

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning
LipuJet-P-RB

Features of upgrade level 1:

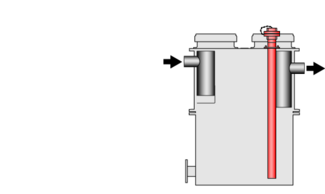

  • Connection for direct suction
  • Odour build-up only during cleaning

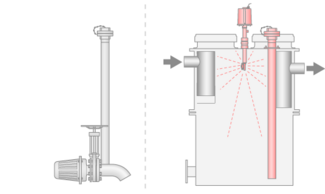

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • Optionally with disposal pump
  • No odour build-up
LipuJet-P-RM (without disposal pump)
LipuJet-P-RMP (with disposal pump)

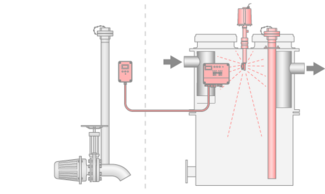

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-P-RA (without disposal pump)
LipuJet-P-RAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

Message system with GSM module

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli lifting plants
  • Muli-Max
  • Sinkamat-Z (underfloor) duo
  • Grease separators
  • Measuring device for grease layers
  • Wet refuse collection systems
  • Technical processing systems
Description
  • Does not require mains power
  • Visible and audible alarms
  • 6 digital & 2 analogue freely configurable inputs
  • 1 alarm output 12V
  • Incl. GSM- aerial (2,5m wire)
  • Relaying alarms to mobile phones by SMS
  • For mounting outside the ex-area
  • Housing: 155x180 x103 mm
  • Slot for standard SIM-card
  • Protection level: IP54 (with fitted IP44 antenna socket)
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Filling device

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With DVGW / KIWA approval and inclined valve R ¾ "
  • With pressure relief valve with dirt trap
  • Weight: 3.5 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Viewing window

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Nominal width: DN 200
  • With screen wiper
  • Weight: 3.2 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation of horizontal pipes DN 100 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 20
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 20
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 20
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg

PIPE connection set ND 100 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 1-4
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 100
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1000 mm
  • Weight: 5.2 kg

PIPE connection set ND 150 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 5.5-10
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 150
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1500 mm
  • Weight: 12.7 kg

PIPE connection set ND 200 for Grease Separators

Suitable for
  • Grease separator LipuJet for free-standing installation
    • NS 15-25
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 200
  • 2 x bends 45°
  • 1 x intermediate piece 500 mm
  • 1 x calm region 2000 mm
  • Weight: 25 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Inlet valve DN 200

Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 20
Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg

Service grease separator: commissioning

Suitable for
  • ACO grease separator for free-standing installation
Description

Commissioning includes the following services:

  • Arrival and removal including working hours, which do not exceed the scope of the commissioning
  • Installation check
  • Electrical testing
  • Mechanical testing
  • System parameterisation
  • Multiple trial runs
  • Operating personnel induction
  • Creation of a commissioning checklist

Upon conclusion of an original ACO maintenance contract, the costs of

commissioning will be offset with the first maintenance service!

Further information: ACO Service 036965/ 819-444

Service grease separator: maintenance

Suitable for
  • ACO grease separator for free-standing installation
    • One contract per grease separator
Description
  • Maintenance in accordance with the checklist based on EN 1825-2 when concluding a maintenance contract with ACO Building Drainage.
  • Separator systems should be maintained by an authorised qualified contractor
  • The maintenance interval should not be longer than 1 x year.

The maintenance service includes the following work:

  • Arrival and removal including working hours, which do not exceed the scope of the maintenance
  • Checking internal wall surfaces
  • Functional check on electrical equipment, if available
  • Checking the entire system with the creation of a test report and, if necessary, a repair offer

A disposal vehicle should be available at the time of maintenance.

Further information: ACO Service 036965/ 819-444

Service grease separator: General inspection

Suitable for
  • ACO grease separator for free-standing installation
Description

According to DIN 4040-100, separator systems must be checked before commissioning and then at regular intervals of a maximum of 5 years after full emptying.

Testing takes place according to EN 1825 / EN 1610.

Our report includes the exact description of the system with measurement, measurement graphics and image documentation, as well as suggestions for further procedures (defect elimination).

The following preparations must be made on-site before the general inspection:

  • Free access for all vehicles
  • Full installation of the system
  • Electrical connection 230V
  • The system must be emptied and clean at the time of testing
  • The possibility of quick water filling is required (supply of fresh water by the disposer or C-connection)
  • An assistant will be provided to us free-of-charge for the work
  • You shall provide climbing aids (ladders)
  • The contents of the separator must be disposed of on the day of the general inspection! Disposal is ordered by the customer, unless otherwise expressly agreed.
  • For the duration of the General Inspection, no inlet into the separator may take place for approx. 4-5 hours

Further information: ACO Service 036965/ 819-444
