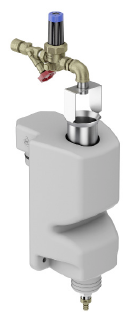

Grease separator LipuJet-P-RB basic model

Product benefits

  • Easy to transport and assemble (incorporation in individual segments)
  • Optimum insertion dimension
  • Easier handling due to weight reduction
  • Rotatable inlet fitting and stretchable odor trap
  • Multifunctional container

Product information

  • Grease separator according to EN 1825 - Nominal Sizes (15/20/22.5)
  • With integrated sludge trap
  • Container made of polyethylene, in segment construction
  • For indoor installation – frost-free
  • Fastening set for buoyancy-proof anchoring
  • Suction and drainage sump
  • Odour-tight maintenance opening (clear width Ø450 mm)
  • Odour-tight inspection opening through Inlet and outlet
  • Inspection window with wiper (optional)
  • Filling unit (components with DVGW and KIWA approvals) for manual refilling (optional):
    • Free-flow valve
    • Pressure reducer with dirt trap
    • Odour trap
  • Pipe connectors on the inlet and outlet with transition seal for pipe OD 210 mm
  • Execution right or left / following components are to be operated on the right or left to the central axis:
    • Inspection window (optional)
    • Filling unit (optional)
  • Declaration of Performance (DoP) No: BD-G1-1004
  • Connections:
    • Inlet and outlet DN200/OD200 mm
    • Vent DN100/OD110 mm
    • Water connection filling unit Rp ¾" (optional)
    • Bottom outlet Rp1"
Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 15DN 2001550600313032034503515.50.00
NS 20DN 2002020800407034544153520.50.00
NS 22.5DN 20025501000500039553953525.50.00
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFull
NS 15DN 2001550 l600 l3130 l320 kg3450 kg3515.50.00
NS 20DN 2002020 l800 l4070 l345 kg4415 kg3520.50.00
NS 22.5DN 2002550 l1000 l5000 l395 kg5395 kg3525.50.00
Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4B1DD1Z/Anzahl SegmenteB
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3515.50.00NS 158080205015351465199021501900200189042500
3520.50.00NS 208080205019251855238025401900200189042500
3525.50.00NS 22.58080205023052235276029101900200189052500

Inlet valve DN 200

Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 15
Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Viewing window

Suitable for
  • LipuJet-P-RB /-RD
Description
  • With screen wiper
  • Weight: 2.1 kg

Filling device

Suitable for
  • LipuJet-P-RB /-RD
Description
  • Components with DVGW and KIWA approvals for manual refilling:
  • Free-flow valve
  • Pressure reducer with dirt trap
  • Odor trap
  • Weight: 4.7 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
