Grease separator LipuJet-P-RAP extension stage 3

Product benefits

  • Easy to transport and assemble (incorporation in individual segments)
  • Optimum insertion dimension
  • Easier handling due to weight reduction
  • Rotatable inlet fitting and stretchable odor trap
  • Multifunctional container
  • Emptying, cleaning and filling without odor nuisance
  • Individually adjustable pre- and after-cleaning times
  • Hydromechanical high-pressure interior cleaning – cold water connection only necessary

Product information

  • Grease separator according to EN 1825 - Nominal Sizes (15/20/22.5)
  • With integrated sludge trap
  • Container made of polyethylene, in segment construction
  • For indoor installation – frost-free
  • Fastening set for buoyancy-proof anchoring
  • Suction and drainage sump
  • Odour-tight maintenance opening (clear width Ø450 mm)
  • Odour-tight inspection opening through Inlet and outlet
  • Central connection for direct suction with fixed coupling and blind coupling
  • Inspection window with wiper
  • High-pressure internal cleaning:
    • Motor-driven high-pressure spray head (360° cleaning over two axles)
    • HP (high pressure) pump (nominal pressure 175 bar)
  • Filling unit (components with DVGW and KIWA approvals) for automatic refilling:
    • Free-flow valve
    • Pressure reducer with dirt trap
    • Solenoid valve
    • Odour trap
  • Level measurement via pneumatic pressure measurement including bubbler injection:
    • Pneumatic box with miniature compressor and pressure sensor
    • Pitot tube
  • Shut-off valve in front of the disposal pump
  • Disposal pump:
    • Vortex impeller design
    • Three-phase motor
    • Delivery data according to performance diagram
  • Control with connection cable 1.5  m
  • And CEE plug 16 A including phase changer, protection class IP 54
  • Pipe connectors on the inlet and outlet with transition seal for pipe OD 210 mm
  • Execution right or left / following components are to be operated on the right or left to the central axis:
    • Inspection window
    • Direct suction
    • Filling unit
    • High pressure spray head
    • HP pump
    • Pneumatic box
    • Control
  • Declaration of Performance (DoP) No: BD-G1-1025
  • Connections:
    • Inlet and outlet DN200/OD200 mm
    • Vent DN100/OD110 mm
    • Direct suction with fixed coupling Storz-B/2½" and blind coupling
    • Water connection filling unit Rp ¾"
    • Bottom outlet Rp1"
  • Electrical connection:
    • 400V/50Hz/16A/8.0kW
    • Fusing: 3x16A (slow) or according to local conditions

Operation side: Right-hand

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 15DN 2001550600313033034603515.54.00
NS 20DN 2002020800407035044203520.54.00
NS 22.5DN 20025501000500040054003525.54.00

Operation side: left

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 15DN 2001550600313033034603515.54.10
NS 20DN 2002020800407035044203520.54.10
NS 22.5DN 20025501000500040054003525.54.10
Nominal sizeNominal widthContentsWeightOperation sideItem

number
Sludge trapGrease storeOverallEmptyFull
NS 15DN 2001550 l600 l3130 l330 kg3460 kgRight-hand3515.54.00
NS 15DN 2001550 l600 l3130 l330 kg3460 kgleft3515.54.10
NS 20DN 2002020 l800 l4070 l350 kg4420 kgRight-hand3520.54.00
NS 20DN 2002020 l800 l4070 l350 kg4420 kgleft3520.54.10
NS 22.5DN 2002550 l1000 l5000 l400 kg5400 kgRight-hand3525.54.00
NS 22.5DN 2002550 l1000 l5000 l400 kg5400 kgleft3525.54.10
Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4B1DD1Z/Anzahl SegmenteB
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3515.54.00NS 15750275205015351465199021501900200189042550
3515.54.10NS 15750275205015351465199021501900200189042550
3520.54.00NS 20750275205019251855238025401900200189042550
3520.54.10NS 20750275205019251855238025401900200189042550
3525.54.00NS 22.5750275205023052235276029101900200189052550
3525.54.10NS 22.5750275205023052235276029101900200189052550

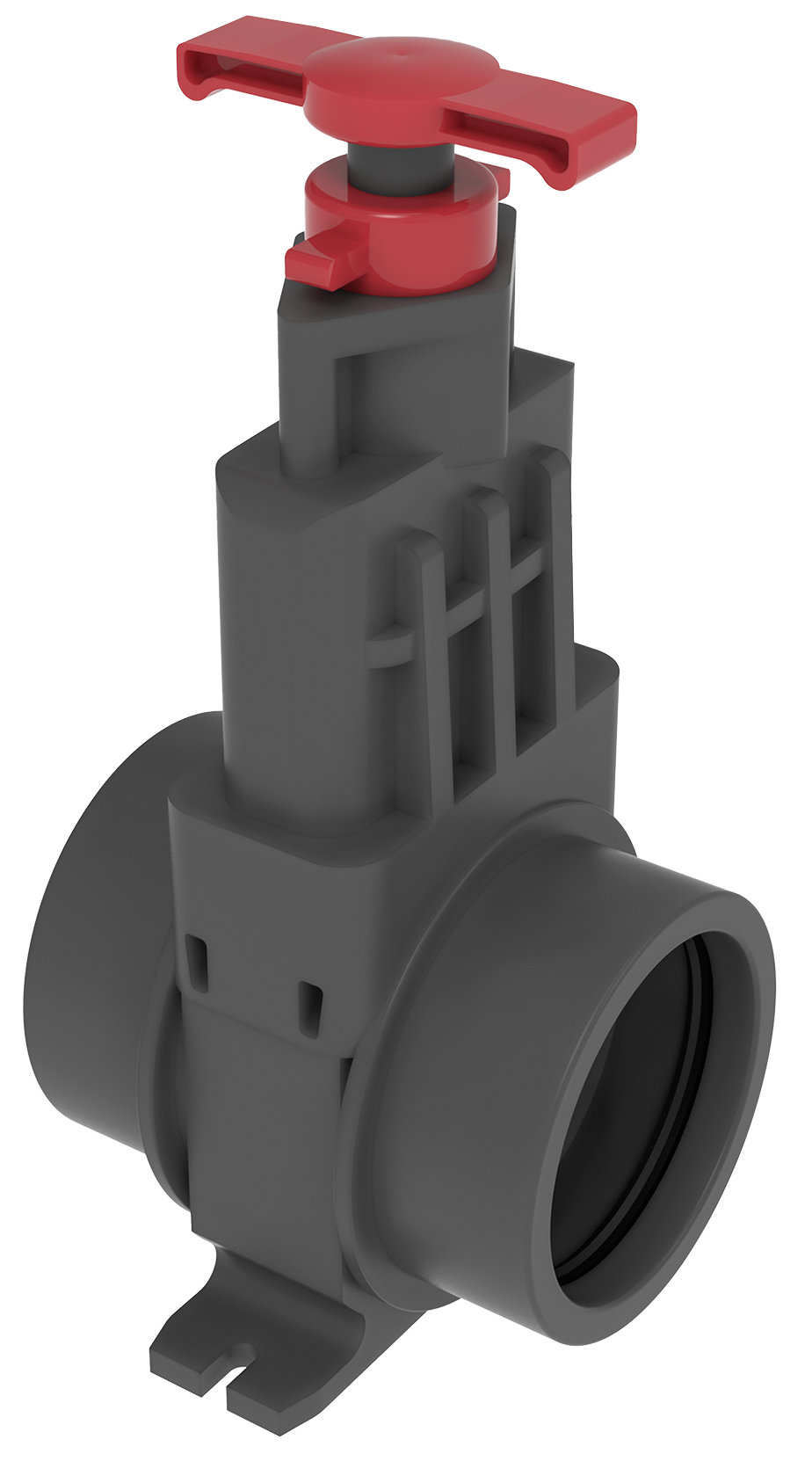

Inlet valve DN 200

Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 15
Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 7 kg
  • Weight: 10.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 7 kg
  • Weight: 10.2 kg

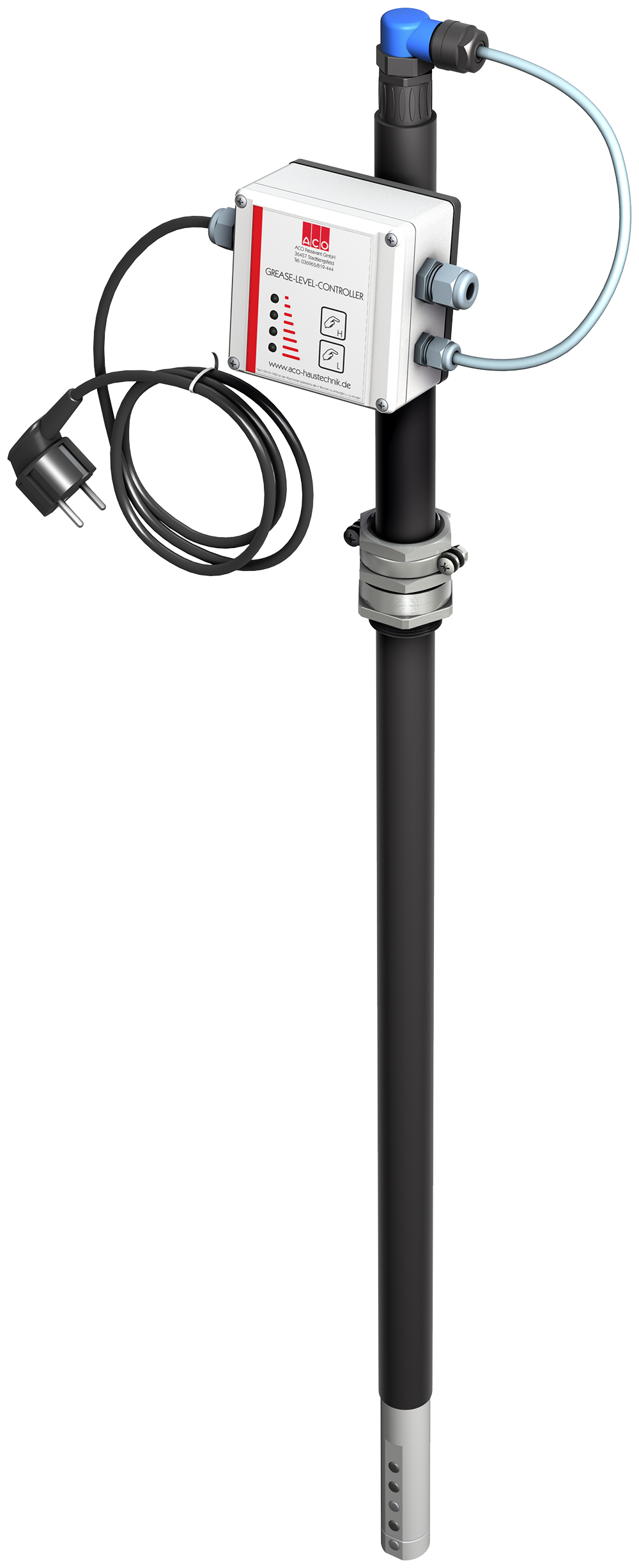

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 14 kg
  • Weight: 9.9 kg

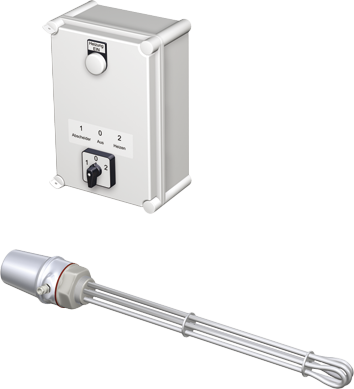

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

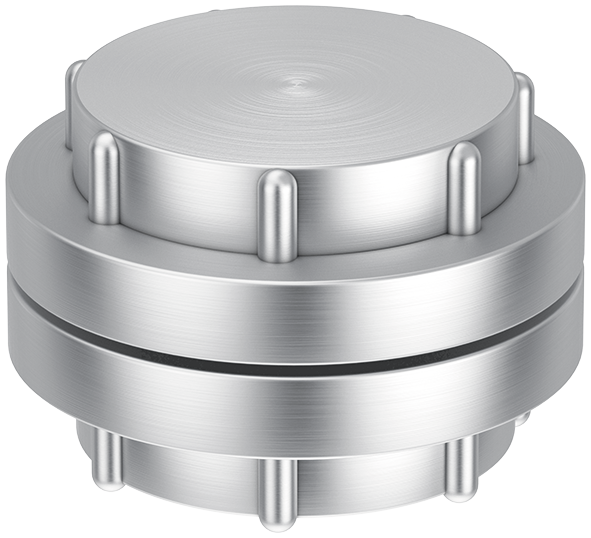

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

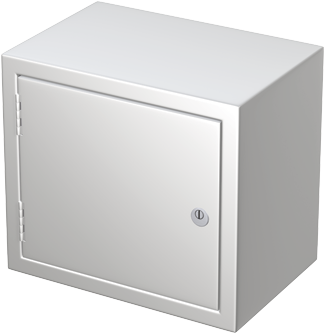

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 8 kg
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

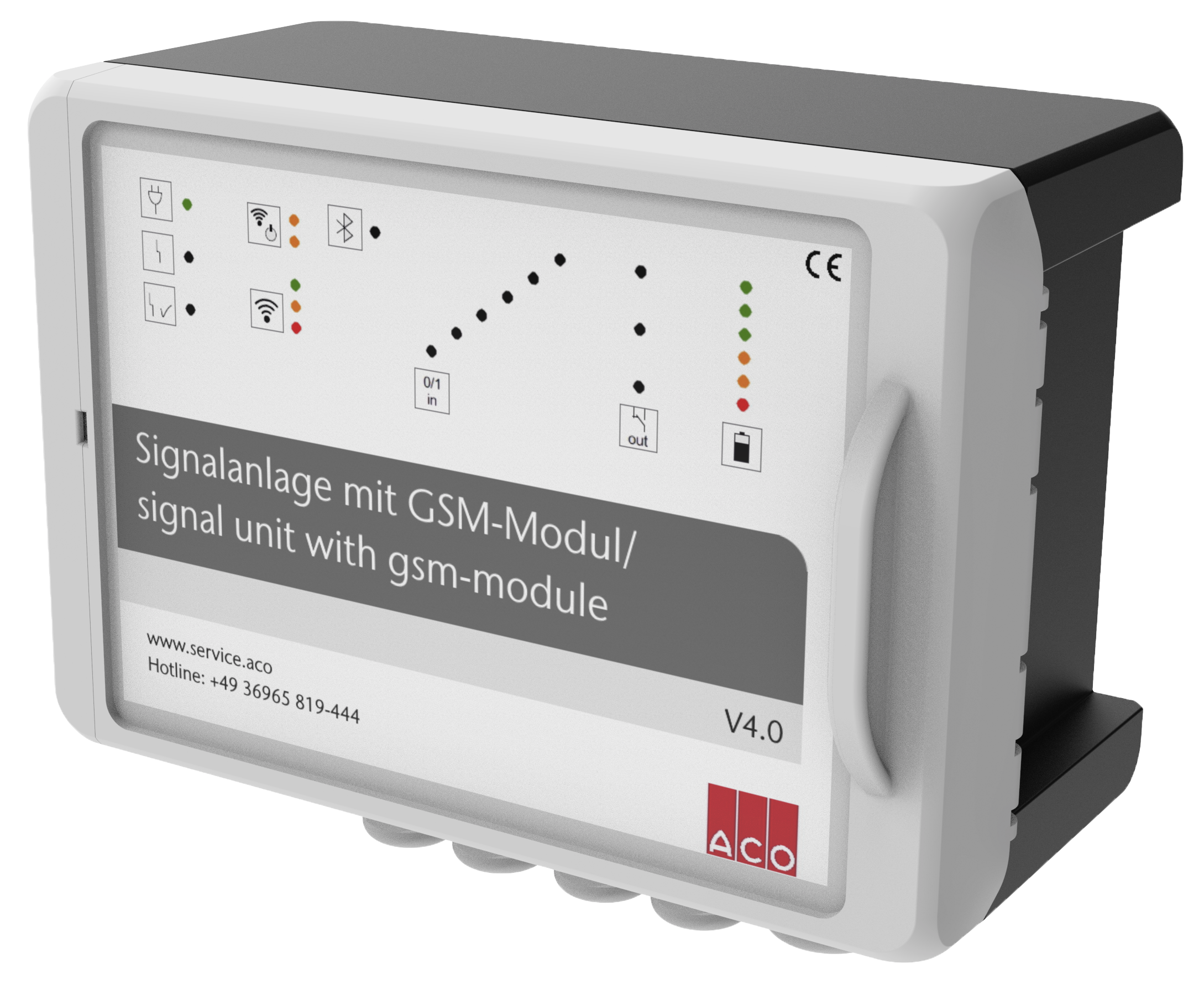

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

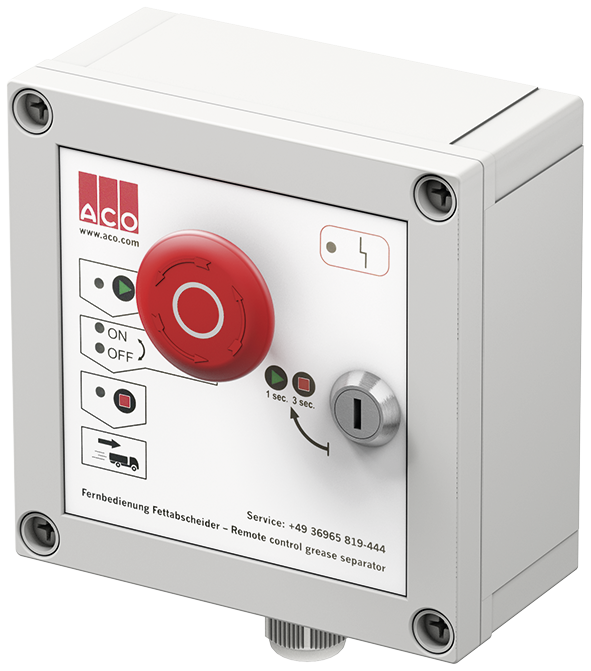

Remote control

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet
Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg
  • Weight: 1 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

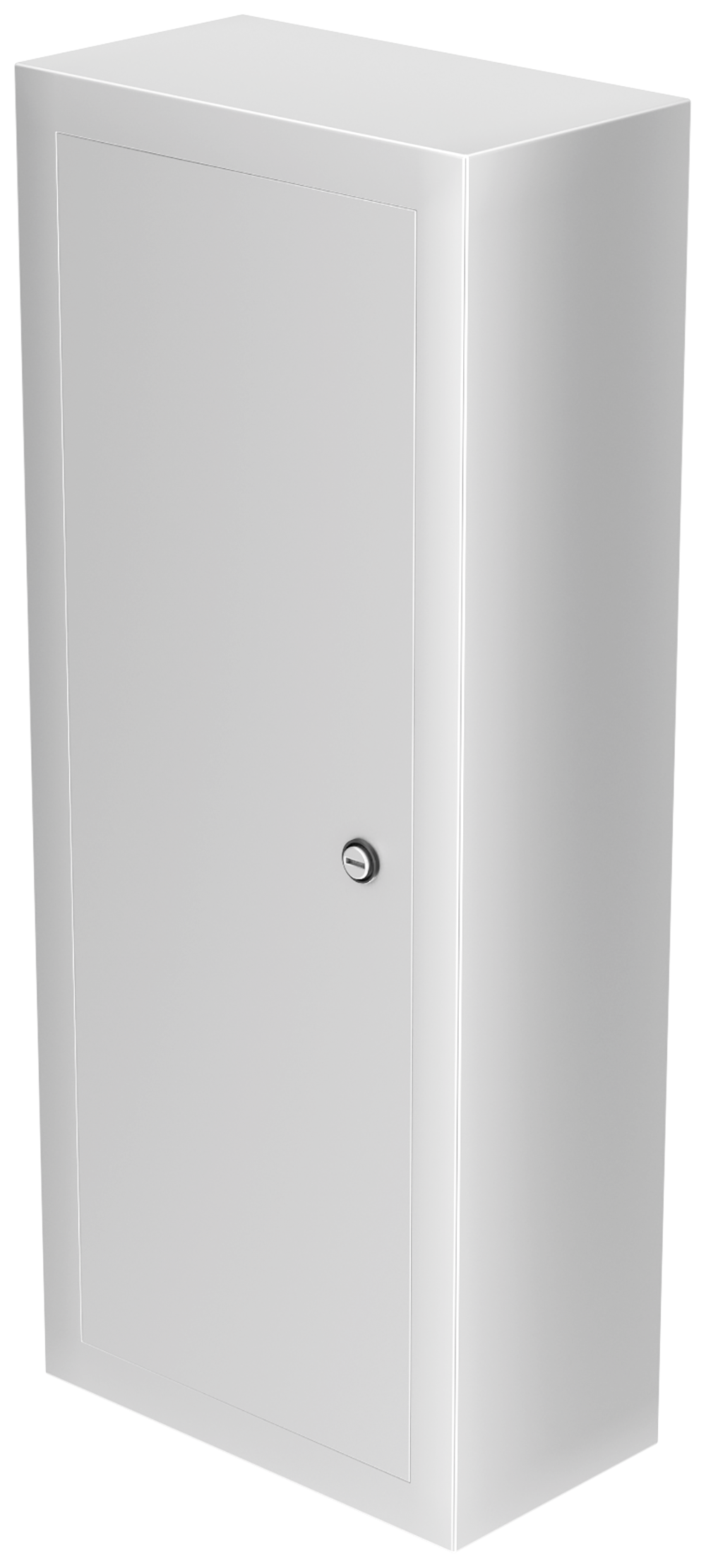

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

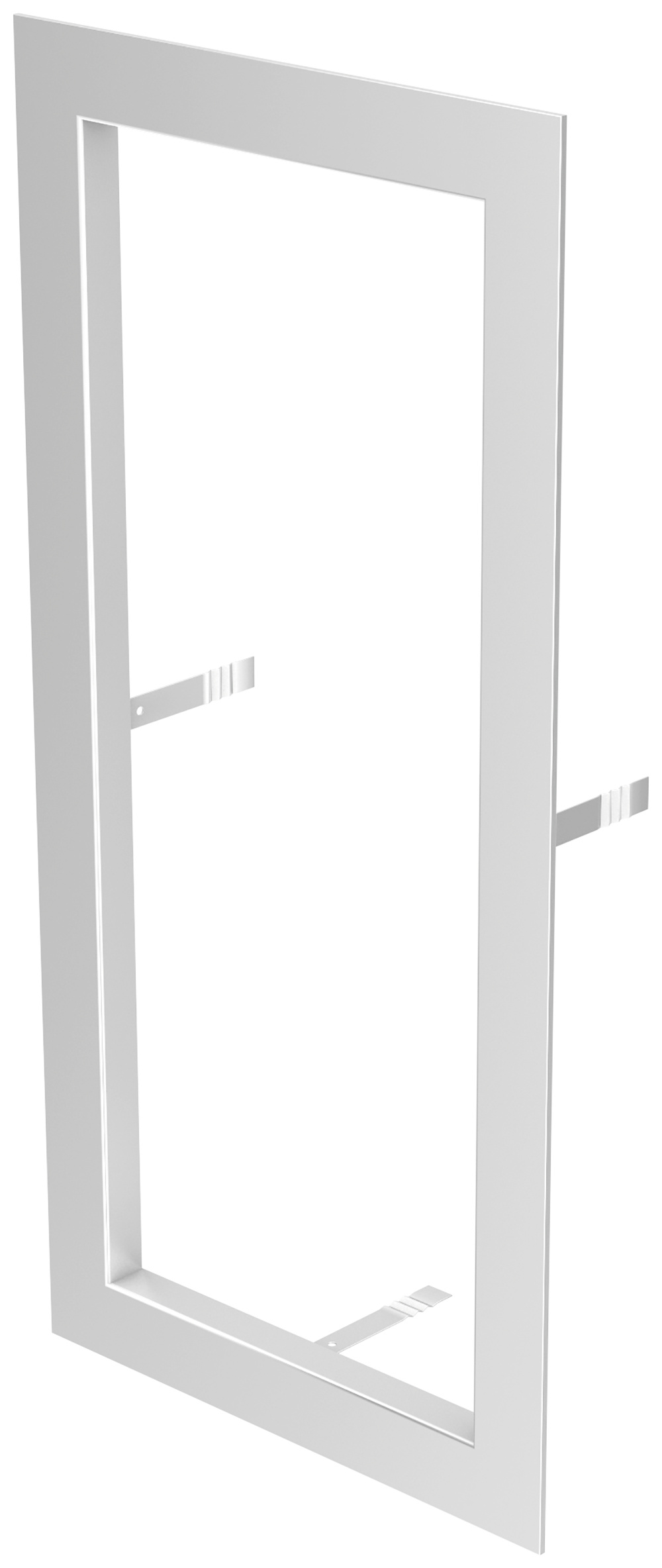

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

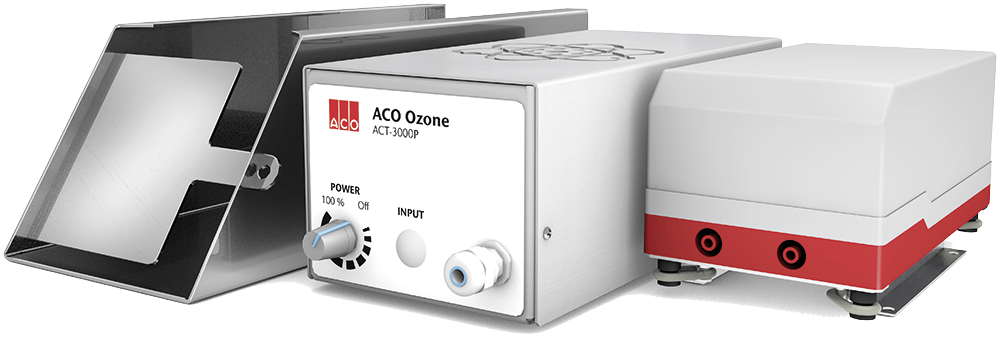

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
