Grease separator LipuJet-P-OD extension stage 1

Product benefits

  • Proven stability: 25 years
  • Easy to bring to installation site thanks to low weight and compact dimensions
  • Easy to empty and clean
  • Empty directly without odour
  • Odour-proof cover
  • Minimises disposal and maintenance costs thanks to economic step increases in nominal size
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1"
  • Odour-proof maintenance opening, diameter: 450 mm
Nominal sizeNominal widthContentsWeightItem

number
DownloadsRemember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 1DN 100106100320683883551.64.00
NS 2DN 100210100440755153552.64.00
NS 3DN 100300150630857153553.64.00
NS 4DN 1004002008301009303554.64.00
NS 5.5DN 150725360143017516053555.64.00
NS 7DN 150800400160019317933557.64.00
NS 8.5DN 150940475190021421143558.64.00
NS 10DN 1501000520200022622263560.64.00
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFull
ImageNS 1DN 100106 l100 l320 l68 kg388 kg3551.64.00
ImageNS 2DN 100210 l100 l440 l75 kg515 kg3552.64.00
ImageNS 3DN 100300 l150 l630 l85 kg715 kg3553.64.00
ImageNS 4DN 100400 l200 l830 l100 kg930 kg3554.64.00
ImageNS 5.5DN 150725 l360 l1430 l175 kg1605 kg3555.64.00
ImageNS 7DN 150800 l400 l1600 l193 kg1793 kg3557.64.00
ImageNS 8.5DN 150940 l475 l1900 l214 kg2114 kg3558.64.00
ImageNS 10DN 1501000 l520 l2000 l226 kg2226 kg3560.64.00
Scale drawing
Item

number
Nominal sizeDimensions
L1L2H1H2H3H4H5W1W2D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3551.64.00NS 111001300830760148013001350700770110
3552.64.00NS 2110013001055985168015001550700770110
3553.64.00NS 3145016501055985168015001550700770110
3554.64.00NS 4176020001055985168015001550700770110
3555.64.00NS 5.517602000125011801880170017509501020160
3557.64.00NS 719602200125011801880170017509501020160
3558.64.00NS 8.522502485125011801880170017509501020160
3560.64.00NS 1024502690125011801880170017509501020160

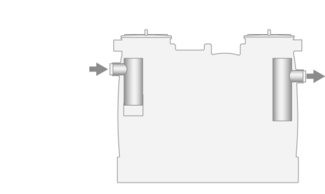

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning
LipuJet-P-OB

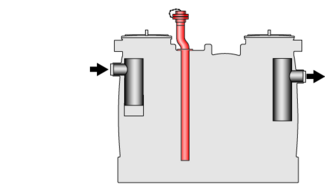

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning

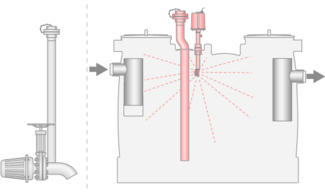

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • Optionally with disposal pump
  • No odour build-up
LipuJet-P-OM (without disposal pump)
LipuJet-P-OMP (with disposal pump)

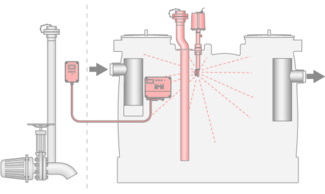

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-P-OA (without disposal pump)
LipuJet-P-OAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

7980.90.00: ACO Ozone-System

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli lifting plants
  • Muli-Max
  • Sinkamat-Z (underfloor) duo
  • Grease separators
  • Measuring device for grease layers
  • Wet refuse collection systems
  • Technical processing systems
Description
  • Does not require mains power
  • Visible and audible alarms
  • 6 digital & 2 analogue freely configurable inputs
  • 1 alarm output 12V
  • Incl. GSM- aerial (2,5m wire)
  • Relaying alarms to mobile phones by SMS
  • For mounting outside the ex-area
  • Housing: 155x180 x103 mm
  • Slot for standard SIM-card
  • Protection level: IP54 (with fitted IP44 antenna socket)
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Filling device

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With DVGW / KIWA approval and inclined valve R ¾ "
  • With pressure relief valve with dirt trap
  • Weight: 3.5 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Viewing window

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Nominal width: DN 200
  • With screen wiper
  • Weight: 3.2 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation of horizontal pipes DN 100 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

PIPE connection set ND 100 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 1-4
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 100
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1000 mm
  • Weight: 5.2 kg

PIPE connection set ND 150 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 5.5-10
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 150
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1500 mm
  • Weight: 12.7 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg

Service grease separator: commissioning

Suitable for
  • ACO grease separator for free-standing installation
Description

Commissioning includes the following services:

  • Arrival and removal including working hours, which do not exceed the scope of the commissioning
  • Installation check
  • Electrical testing
  • Mechanical testing
  • System parameterisation
  • Multiple trial runs
  • Operating personnel induction
  • Creation of a commissioning checklist

Upon conclusion of an original ACO maintenance contract, the costs of

commissioning will be offset with the first maintenance service!

Further information: ACO Service 036965/ 819-444

Service grease separator: maintenance

Suitable for
  • ACO grease separator for free-standing installation
    • One contract per grease separator
Description
  • Maintenance in accordance with the checklist based on EN 1825-2 when concluding a maintenance contract with ACO Building Drainage.
  • Separator systems should be maintained by an authorised qualified contractor
  • The maintenance interval should not be longer than 1 x year.

The maintenance service includes the following work:

  • Arrival and removal including working hours, which do not exceed the scope of the maintenance
  • Checking internal wall surfaces
  • Functional check on electrical equipment, if available
  • Checking the entire system with the creation of a test report and, if necessary, a repair offer

A disposal vehicle should be available at the time of maintenance.

Further information: ACO Service 036965/ 819-444

Service grease separator: General inspection

Suitable for
  • ACO grease separator for free-standing installation
Description

According to DIN 4040-100, separator systems must be checked before commissioning and then at regular intervals of a maximum of 5 years after full emptying.

Testing takes place according to EN 1825 / EN 1610.

Our report includes the exact description of the system with measurement, measurement graphics and image documentation, as well as suggestions for further procedures (defect elimination).

The following preparations must be made on-site before the general inspection:

  • Free access for all vehicles
  • Full installation of the system
  • Electrical connection 230V
  • The system must be emptied and clean at the time of testing
  • The possibility of quick water filling is required (supply of fresh water by the disposer or C-connection)
  • An assistant will be provided to us free-of-charge for the work
  • You shall provide climbing aids (ladders)
  • The contents of the separator must be disposed of on the day of the general inspection! Disposal is ordered by the customer, unless otherwise expressly agreed.
  • For the duration of the General Inspection, no inlet into the separator may take place for approx. 4-5 hours

Further information: ACO Service 036965/ 819-444
