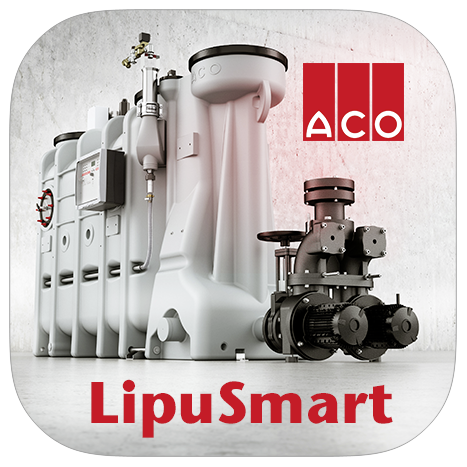

Grease separator with integrated lifting plant LipuSmart-P-OA extension stage 3

Product benefits

  • Integrated backflow protection
  • Only one vent stack necessary
    • For the LipuSmart-P NS 2, ACO recommends the on-site installation of 2 ventilation lines
  • Compact installation dimensions: The pump technology can be flexibly installed on 3 sides
  • Innovative overall system control via integration in the building control technology
  • 4in1 – complete solution
  • Optional Modbus connection
  • Structural stability of the container stability verification according to German Standard DIN 19901

Product information

  • Program-controlled, odour-free disposal and cleaning by means of direct suction and hydromechanical internal cleaning
  • Disposal connection DN 65, mating flange with Storz coupling 75B and blind connector 2½"
  • Fill unit with solenoid valve
  • Bluetooth interface (LipuSmart App/Android)

Infobox

The LipuSmart pump technology can be flexibly mounted on 3 sides of the container.

Operation side: left

Nominal sizeNominal widthContentsKey data pump unitWeightItem

number
Remember
Oleomax Duo mit SchlammfangGrease storeOverallTypeMotor powerUsable volumeDelivery headEmptyFull
[l][l][l][kW][l][m][kg][kg]
NS 2DN 100210100440Pumpenset 1,5kW1.515592296693552.76.32
NS 3DN 100300150630Pumpenset 1,5kW1.515592448743553.76.32
NS 4DN 100400200830Pumpenset 1,5kW1.5155925910893554.76.32
NS 5.5DN 1507253601430Pumpenset 4,0kW42352036317933555.76.32
NS 7DN 1508004001600Pumpenset 4,0kW42352037919793557.76.32
NS 8.5DN 1509404751900Pumpenset 4,0kW42352040023003558.76.32
NS 10DN 15010005202000Pumpenset 4,0kW42352041224123560.76.32

Operation side: Right-hand

Nominal sizeNominal widthContentsKey data pump unitWeightItem

number
Remember
Oleomax Duo mit SchlammfangGrease storeOverallTypeMotor powerUsable volumeDelivery headEmptyFull
[l][l][l][kW][l][m][kg][kg]
NS 2DN 100210100440Pumpenset 1,5kW1.515592296693552.76.42
NS 3DN 100300150630Pumpenset 1,5kW1.515592448743553.76.42
NS 4DN 100400200830Pumpenset 1,5kW1.5155925910893554.76.42
NS 5.5DN 1507253601430Pumpenset 4,0kW42352036317933555.76.42
NS 7DN 1508004001600Pumpenset 4,0kW42352037919793557.76.42
NS 8.5DN 1509404751900Pumpenset 4,0kW42352040023003558.76.42
NS 10DN 15010005202000Pumpenset 4,0kW42352041224123560.76.42
Nominal sizeNominal widthContentsKey data pump unitWeightOperation sideItem

number
Oleomax Duo mit SchlammfangGrease storeOverallTypeMotor powerUsable volumeEmptyFull
ImageNS 2DN 100210 l100 l440 lPumpenset 1,5kW1.5 kW155 l229 kg669 kgleft3552.76.32
ImageNS 3DN 100300 l150 l630 lPumpenset 1,5kW1.5 kW155 l244 kg874 kgleft3553.76.32
ImageNS 4DN 100400 l200 l830 lPumpenset 1,5kW1.5 kW155 l259 kg1089 kgleft3554.76.32
ImageNS 5.5DN 150725 l360 l1430 lPumpenset 4,0kW4 kW235 l363 kg1793 kgleft3555.76.32
ImageNS 7DN 150800 l400 l1600 lPumpenset 4,0kW4 kW235 l379 kg1979 kgleft3557.76.32
ImageNS 8.5DN 150940 l475 l1900 lPumpenset 4,0kW4 kW235 l400 kg2300 kgleft3558.76.32
ImageNS 10DN 1501000 l520 l2000 lPumpenset 4,0kW4 kW235 l412 kg2412 kgleft3560.76.32
ImageNS 2DN 100210 l100 l440 lPumpenset 1,5kW1.5 kW155 l229 kg669 kgRight-hand3552.76.42
ImageNS 3DN 100300 l150 l630 lPumpenset 1,5kW1.5 kW155 l244 kg874 kgRight-hand3553.76.42
ImageNS 4DN 100400 l200 l830 lPumpenset 1,5kW1.5 kW155 l259 kg1089 kgRight-hand3554.76.42
ImageNS 5.5DN 150725 l360 l1430 lPumpenset 4,0kW4 kW235 l363 kg1793 kgRight-hand3555.76.42
ImageNS 7DN 150800 l400 l1600 lPumpenset 4,0kW4 kW235 l379 kg1979 kgRight-hand3557.76.42
ImageNS 8.5DN 150940 l475 l1900 lPumpenset 4,0kW4 kW235 l400 kg2300 kgRight-hand3558.76.42
ImageNS 10DN 1501000 l520 l2000 lPumpenset 4,0kW4 kW235 l412 kg2412 kgRight-hand3560.76.42
Scale drawing
Nominal sizeDimensions
L1L2L3L4H1H2H3H4W1W2D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
NS 211008001625300105575316801500742880110
NS 314508001975300105575316801500742880110
NS 417608002285300105575316801500742880110
NS 5.5176083522873001250753188017009601130160
NS 7196083524873001250753188017009601130160
NS 8.5225083527773001250753188017009601130160
NS 10245083529773001250753188017009601130160

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg

Flashing light


Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Heating rod

Suitable for
  • LipuSmart OA/OAP
Description
  • Weight: 15 kg

7980.90.00: ACO Ozone-System

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Remote control

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet
Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Translated with www.DeepL.com/Translator (free version)
  • Weight: 2 kg

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg

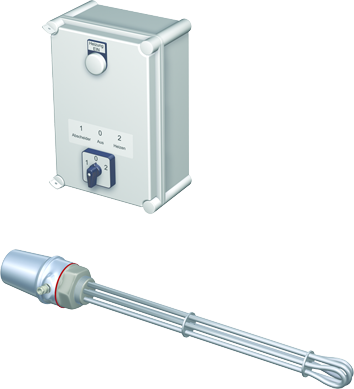

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

PIPE connection set ND 100 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 1-4
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 100
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1000 mm
  • Weight: 5.2 kg

PIPE connection set ND 150 for Grease Separators

Suitable for
  • Grease separator LipuJet/LipuSmart for free-standing installation
    • NS 5.5-10
Description
  • For connection of the grease separator feed line
  • From stainless steel, material grade 316 L
  • EPDM seal
  • DN 150
  • 2 x bends 45°
  • 1 x intermediate piece 250 mm
  • 1 x calm region 1500 mm
  • Weight: 12.7 kg

Hand membrane pump 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For fixing to wall
  • Incl. hose
    • Clear width: 48 x 80 mm
  • Incl, hose clamp
    • Clear width: 50 x 70 mm
    • Width: 12 mm
    • 2 pces required
  • Weight: 14.4 kg

Connection ports ventilation

Suitable for
  • LipuSmart-P
Description
  • Made of PE-HD
  • DN70 (OD 75mm)

Inlet socket DN 50

Suitable for
  • Junior basement gully with backflow stop
  • Basement gully DN 100
  • Sinkamat-K (free-standing)
  • LipuSmart-P
  • Muli-Mini
Description
  • Made of plastic
  • For lateral input option
  • For fitting on-site
  • Weight: 0.1 kg

Stop valve 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For hand membrane pump
  • Weight: 1 kg

Three way valve 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For hand membrane pump
  • Weight: 3.3 kg

Stop valve

Suitable for
  • LipuSmart-P inlet pump unit
Description
  • Made of cast iron
  • Slide plate, spindle made of stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle path (H1 – H2): 365 – 465 mm
  • Hand wheel diameter: 200 mm
  • Incl. seals and fixing material
  • Weight: 15 kg

Stop valve DN 80

Suitable for
  • LipuSmart-P
  • Muli-Star MDP1/MWP1
  • Muli-Star DDP 1/2
Description
  • Made of cast iron
  • 8 screws and nuts
  • 1 DN 80 seal
  • Length: 180 mm
  • Weight: 19.4 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Sealing ring

Suitable for
  • LipuSmart-P
  • Powerlift installation kit DN 100
  • Fäkablock II
  • All Muli wastewater lifting plants
Description
  • As additional component for pressure line DN 80
  • Weight: 0.3 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg

LipuSmart App

Suitable for
  • Control system for general system
    • LipuSmart-P-OA
    • LipuSmart-P-OAP
Description
  • Benefits for maintenance, monitoring and operation
  • Checklists for setting up the grease separators and lifting system unit
  • Grease separator protocol system
  • Assurance of control settings
  • Connection via Bluetooth interface
  • Operating systems
    • Android
    • IOS
  • Download:
    • Http://aco.me/lipusmartapp
    • QR-code in the data sheet
