LipuMax-PF-H-B Basic Flex
Product information
Grease separator
- Grease separator in accordance with EN 1825 Nominal Size 10,15 and 20
- For underground installation
- With integrated sludge trap
- 2 x maintenance openings Ø 840 mm for the respective accommodation of a required extension characteristic dimension 800 or 800 - 600 (accessories) with load classes A 15, B 125 or D 400
- Maximum inflow depth ZT up to approx. 1.10 m (distance from top edge of ground to lower edge of connection nozzle/ pipe invert)
- Maximum installation depth ET up to 3 m (distance from top edge of ground to lower edge of tank)
- Buoyancy safety of the tank: Buoyancy-proof up to 1.65 m above the lower edge of the tank with top section systems and load distribution plate (for A 15, B 125 / D 400)
- Declaration of Performance (DoP) No: BD/G1/-1024
- Connection parts for on-site vent stack
- 1 x Socket seal DN 100
Connections
- Pipe connections:
- Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15/20) for on-site supply line
- Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15/20) for on-site drain line
- 8 x horizontal pipe sockets (closed) DN 100 / OD 110 mm for on-site vent stack
| Nominal size | Sludge trap | Dimensions | |||
|---|---|---|---|---|---|
| H1 | H2 | L1 | L2 | ||
| [l] | [mm] | [mm] | [mm] | [mm] | |
| NS 10 | 1000 | 1100 | 1030 | 2520 | 1255 |
| NS 15 | 1500 | 1080 | 1010 | 3010 | 1745 |
| NS 20 | 2000 | 1080 | 1010 | 3750 | 2480 |
Top sections standard for separators
Sampling shafts set 450
Sampling shafts body 800
Disposal shafts
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 10 m
- Weight: 6.4 kg
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 20 m
- Weight: 7.8 kg
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 30 m
- Weight: 9.6 kg

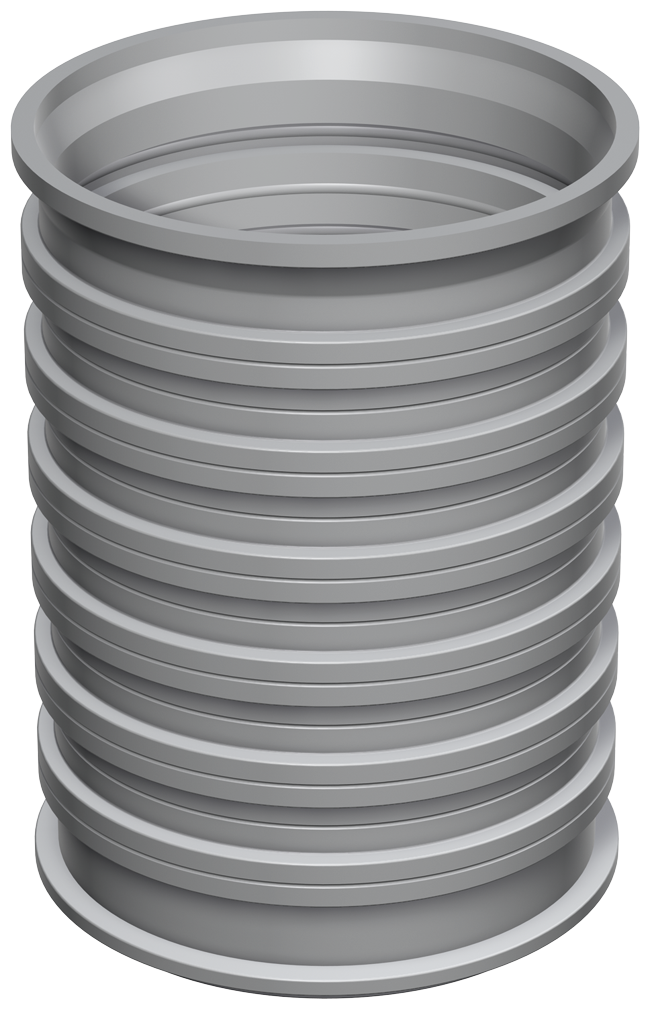

Extension 450
Suitable for
- Sampling shaft
Description
- Made from plastic, material polyethylene
- For fitting on upstream shaft for deep installations
- Structure height: 100 – 650 mm
- (can be reduced to 45 mm by cutting off at cutting marks)
- Max. two extension can be used
- Weight: 12 kg
- Weight: 8.8 kg

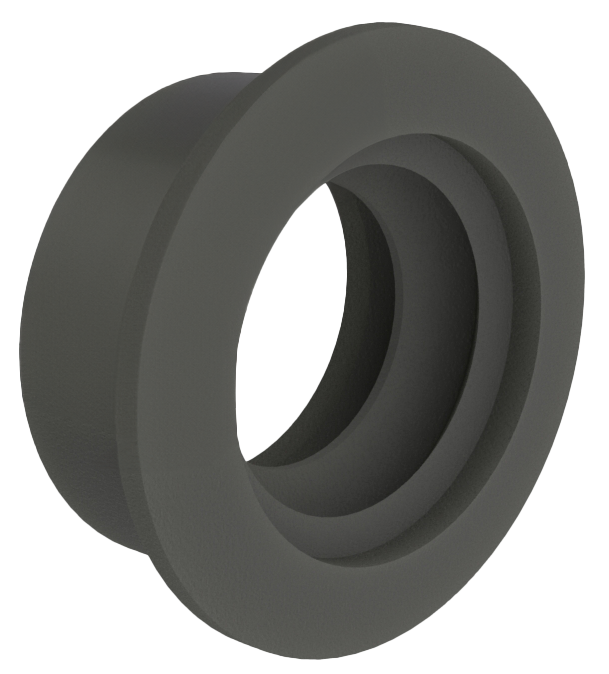

0150.27.08: Muffendichtung DN 200 / OD 200 mm
Description
- Weight: 0.6 kg
