LipuMax-P-H-DA Stage 3

Product benefits

  • Grease separator with integrated sludge trap in a single tank
  • Reduced/simplified installation work
  • Emptying, cleaning and filling the grease separator without unpleasant odours
  • Automatic operation of the disposal process
  • Control unit including remote control for outdoor installation

Product information

Grease separator

  • Grease separator in accordance with EN 1825 Nominal Size 10 and 15
  • For underground installation
  • With integrated sludge trap
  • 2 x maintenance openings Ø 650 mm for the respective accommodation of a required cover system (accessories) with load classes A 15, B 125 or D 400
  • Maximum inflow depth ZT up to approx. 1.15 m (distance from top edge of ground to lower edge of connection nozzle/ pipe invert)
  • Maximum installation depth ET up to approx. 2.25 m (distance from top edge of ground to lower edge of tank)
  • Buoyancy safety of the tank: Buoyancy-proof up to 1.65 m above the lower edge of the tank with cover system and load distribution plate (for A 15, B 125 / D 400)
  • Control unit for frost-free installation with connecting cable 1.5 m and CEE plug 16 A including phase inverter, protection class IP 54
  • Remote control for frost-free installation, protection class IP 54
  • Declaration of Performance (DoP) No: BD/G1/-1024
  • Internal jetting:
    • High-pressure spray head (360° cleaning) with connection cable 30 m
    • HP (high pressure) pump (nominal pressure 175 bar) with reservoir for frost-free installation
    • High-pressure hose 2.7 m long for connecting HP pump and filling line connection
    • Necessary high-pressure hose (accessories) 10, 20 or 30 m long for connecting the high-pressure spray head and the filling line.
  • Filling unit (components with DVGW and KIWA approvals) for frost-free installation for automatic refilling:
    • Free-flow valve
    • Pressure reducer with dirt traps
    • Solenoid valve
    • Pipe elbow
  • Connection parts for on-site disposal line:
    • 1x Compression fitting DN 80/ 65 (OD 90/ 75 mm)
    • 1 x Compression fitting DN 65 (OD 75 mm)
    • Pipe (OD 75 mm) with fixed coupling Storz-B / 2½" and blind coupling
  • Connection parts for on-site filling, supply (cable conduit) and vent stacks:
    • 3 x Socket seal DN 100
    • 1 x Cable gland
    • Pipe branch

Connections

  • Pipe connections:
  • Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15) for on-site supply line
  • Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15) for on-site drain line
  • 8 x horizontal pipe sockets (closed) DN 100 / OD 110 mm for on-site filling, supply (cable conduit) and ventilation lines
  • 1 horizontal pipe socket each (closed) DN 80 / OD 90 mm arranged on the right and left in the direction of flow for on-site disposal line
  • Water connections (30 l/min):
    • Internal thread ¾" on filling unit for on-site cold water line
    • External thread ¾" on the storage tank HP pump for on-site cold water line
  • Electrical connection:
    • 400 V / 50 Hz / 4.2 kW
    • General fuse protection: 3 x 16 A (time lag) or according to local conditions.
    • The power supply must comply with the directives of the local power supplier. In particular, attention should be paid to the specific protection measures and the cable cross-sections and potential compensation.
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Remember
Sludge trapGrease storeOverall
[l][l][l][kg]
NS 10DN 150100055020902603210.83.01
NS 15DN 200150062527803003215.80.01
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Sludge trapGrease storeOverall
NS 10DN 1501000 l550 l2090 l260 kg3210.83.01
NS 15DN 2001500 l625 l2780 l300 kg3215.80.01
Nominal sizeSludge trapDimensions
H1H2
[l][mm][mm]
NS 10100011001030
NS 15150010801010

Extension 450

Suitable for
  • Sampling shaft
Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 8.8 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg

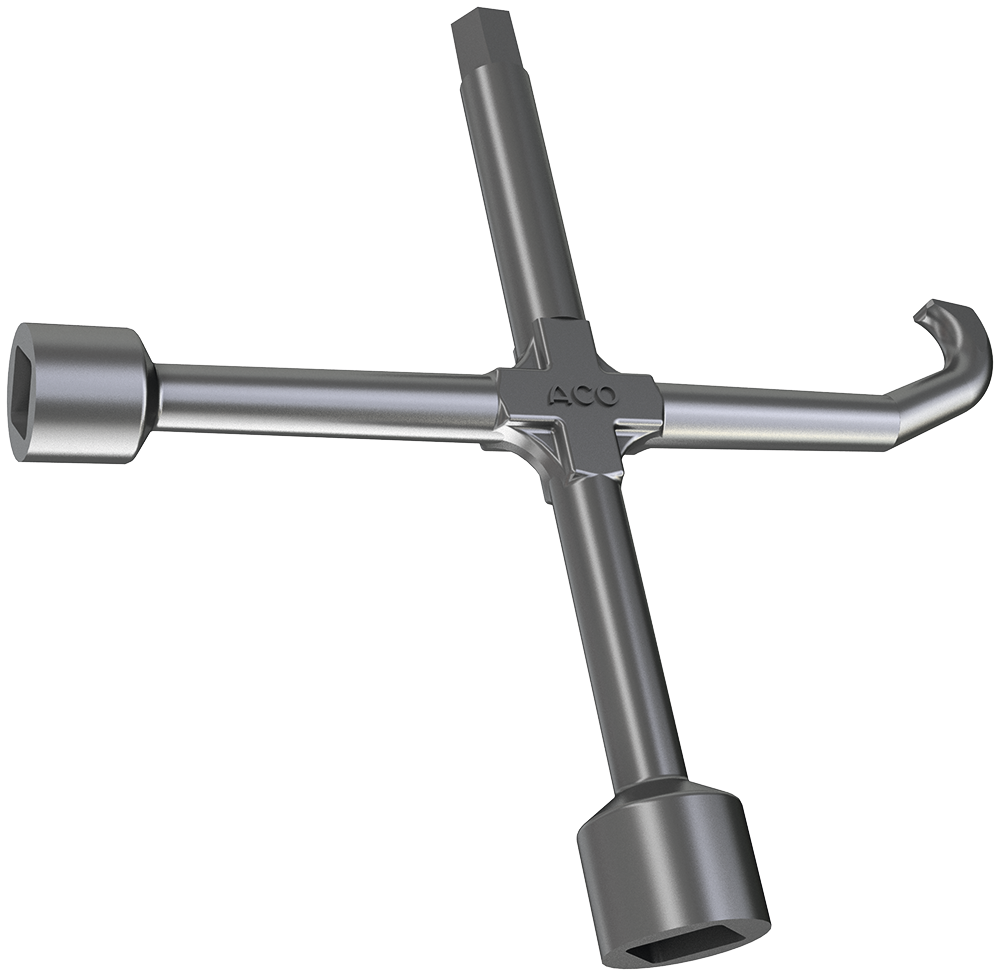

Removal key for covers

Suitable for
  • Covers load class
    • A, B or D
Description
  • Removal key for easier removal of the covers / manhole covers

Stepox

Description
  • Weight: 5.9 kg

0150.27.08: Muffendichtung DN 200 / OD 200 mm

Description
  • Weight: 0.6 kg
