Access Covers

ACO Access Covers are innovative and made of high quality materials. Our complete range of covers is fully certified according to European standards and meets all load, safety and functional requirements. ACO Access Covers are suitable for use in a wide range of commercial and industrial applications. Designed to provide easy access to underlying building services and ducting, standard and engineered covers are available in aluminium, stainless steel and galvanised steel. ACO Access Covers can be flexibly installed into any interior or exterior areas. Their installation and handling, as well as their maintenance and cleaning, are easy.

ACO Access Covers come in a wide range of sizes to meet specific project requirements and benefit from a high quality finish.


Solutions

Product benefits:

  • Recessed access covers are suitable for a thin floor surfaces in thickness up to 15 mm or in special product range thickenss up to 65 mm
  • Load capacity tested and certified according to EN 1253-4
  • Tested with space for tiles height 15 mm and for pavement bricks and natural stone up to height 65 mm (competitors covers tested completely filled with concrete)
  • Water-tight and odour-tight tested according to EN 1253-4
  • Discreet product after installation
  • Optionable with opening assistance
  • Multi cover available as custom made

Product benefits:

  • Typically specified for use outside buildings, for pedestrian areas, driveways and car parks. Recessed access covers for a pavement, natural stone or bitumen infill in height up to 120 mm.
  • Load capacity up to load class D400 for all clear openings up to 1 m
  • Load capacity tested and certified according to EN 124
  • Water-tight and odour-tight tested according to EN 1253-4
  • No concrete or any other additional structural infill necessary
  • Optionable with opening assistance
  • Multi cover available as custom made

Product benefits:

  • Suitable for light industrial applications, where simple and lightweight covers are required. Surface of the cover is formed by anti slip tread “checker” plate. Optimized supports are welded underneath of the cover which guarantee declared load capacity.
  • Load capacity tested and certified according to EN 124
  • Corrosion resistant
  • Water-tight and odour-tight tested according to EN 1253-4
  • Secure and time saving installation
  • Optionable with opening assistance
  • Multi cover available as custom made

  • UNIFACE Fire Resistant
  • PAVING Fire Resistant
  • SOLID Fire Resistant

Product benefits:

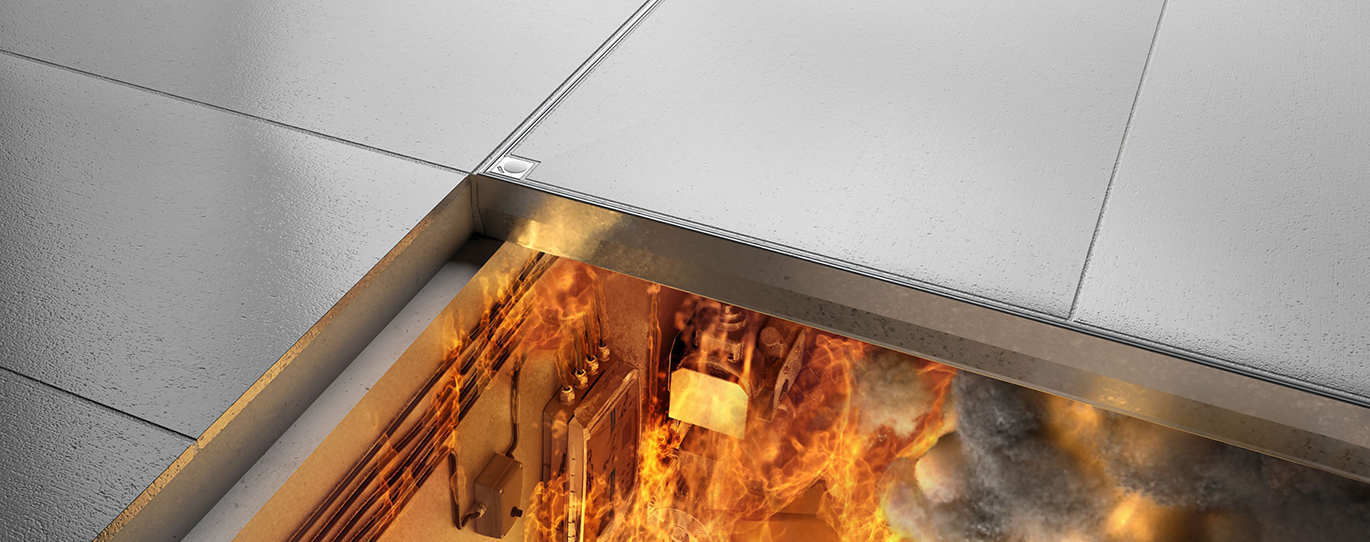

  • Practical and safe access solution to underneath areas. In the event of fire, closing the ACO Access Covers resists fire to protect the area above the cover, thus significantly contributing to the protection of local areas and floors.
  • Fire resistance of ACO Access Covers (FR) is up to E 120, EI 120
  • Authorised laboratory PAVUS a.s. (authorised body AO 216) according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810
  • Corrosion resistant
  • Secure and time saving installation
  • Water-tight and odour-tight tested according to EN 1253-4
